D-Link DGS-1100 Series Switch User Manual
Multicast Static FDB
This window is used to view and configure the multicast static FDB settings. To view the following
window, click L2 Features > FDB > Static FDB > Multicast Static FDB, as shown below:

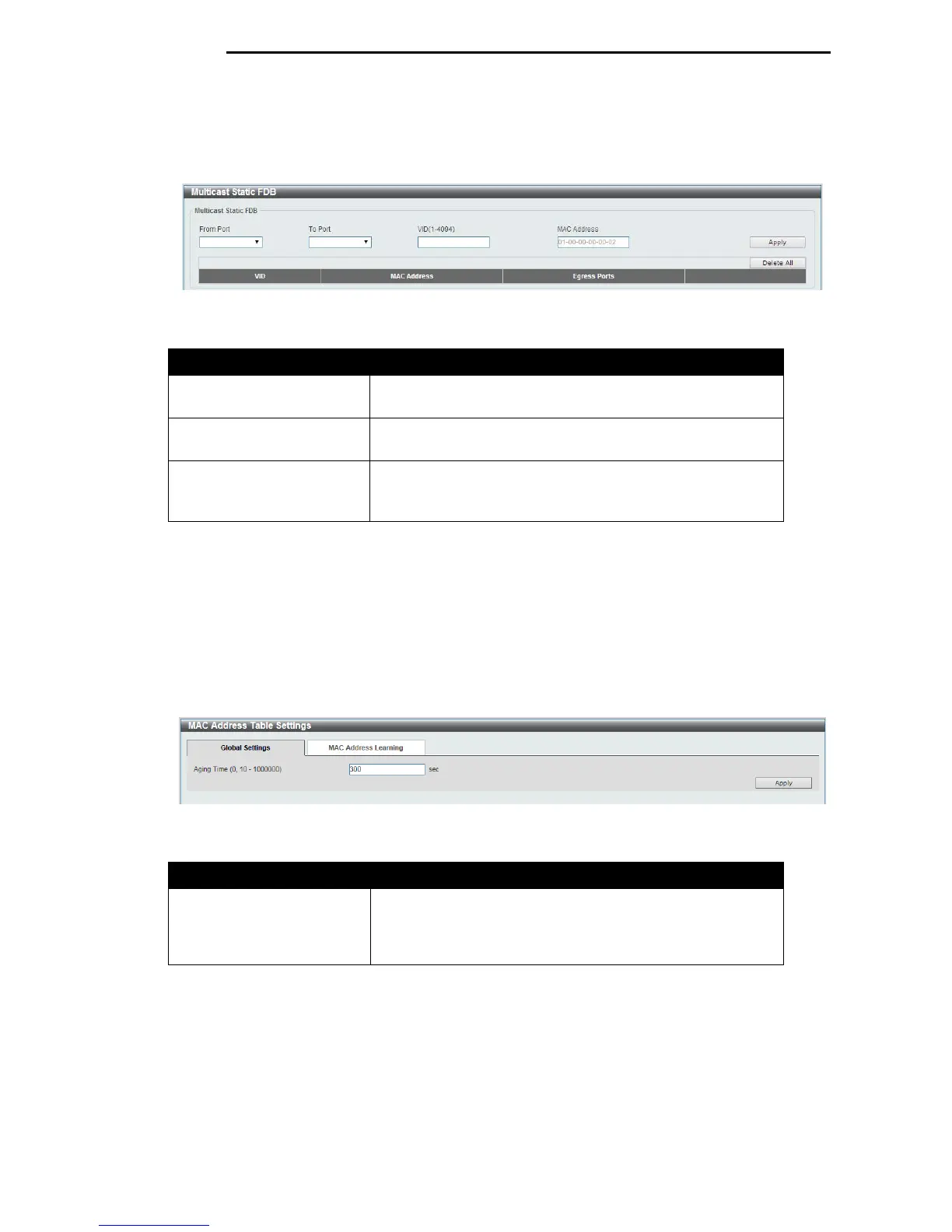

Figure 7-2 Multicast Static FDB window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Select the appropriate port range used for the configuration
here.
VID
Enter the VLAN ID of the VLAN the corresponding MAC
address belongs to.
MAC Address
Enter the static destination MAC address of the multicast
packets. This must be a multicast MAC address. The format
of the destination MAC address is 01-XX-XX-XX-XX-XX.
Click the Apply button to accept the changes made.
Click the Delete All button to remove all the entries.
Click the Delete button to remove the specific entry.
MAC Address Table Settings
This window is used to view and configure the MAC address table’s global settings.
To view the following window, click L2 Features > FDB > MAC Address Table Settings, as shown
below:
Figure 7-3 MAC Address Table Settings (Global Settings) window
The fields that can be configured are described below:
Parameter Description
Aging Time
Enter the MAC address table’s aging time value here. This
value must be between 10 and 1000000 seconds. Entering 0
will disable MAC address aging. By default, this value is 300
seconds.
Click the Apply button to accept the changes made.
After clicking the MAC Address Learning tab, at the top of the page, the following page will be
available.
