D-Link DGS-1100 Series Switch User Manual
DGS-1100-24P
24-Port 10/100/1000Mpbs PoE Switch

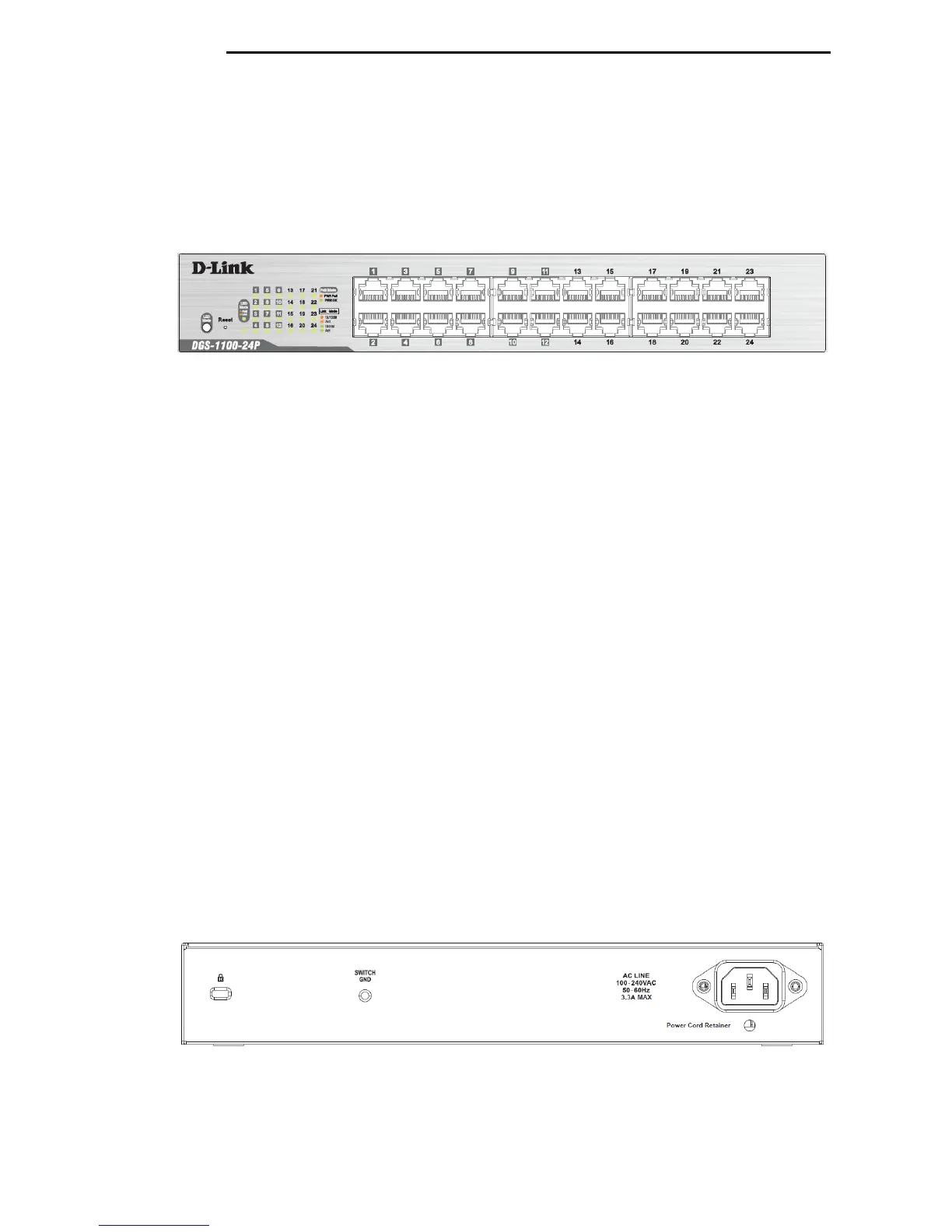

Front Panel
Figure 2-7 – DGS-1100-24P Front Panel
Power LED: The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-24):
Solid Green: When there is a secure 1000Mbps connection at the port.
Blinking Green or Amber: Indicates that the Switch is either sending or receiving data to the port.
Solid Amber: Indicates that the port is running at 10/100Mbps.
Light off: No link.
PoE Mode (Ports 1-12):
Green: Indicates that PoE mode is active.
Amber: Indicates that there is an issue with the PoE mode activating properly.
Light off: Indicates that PoE mode is not active.
LED Mode Button: Pressing this button will change the LED behavior from Link mode, and PoE
Mode
Reset: By pressing the Reset button until the power LED turns amber, the Switch will change back
to the default configuration and all changes will be lost.
Note: The LED behavior for ports 1-12 will switch between Link mode and PoE mode when the PoE
mode is active.
Rear Panel
Figure 2-8 – DGS-1100-24P Rear Panel
Power: Connect the supplied AC power cable to this port.
