3. Hardware Installation
This chapter provides unpacking and installation information for the D-Link Switch.
Step 1: Unpacking
Open the shipping carton and carefully unpack its contents. Please consult the packing list located in
the User Manual to make sure all items are present and undamaged. If any item is missing or
damaged, please contact your local D-Link reseller for replacement.
Packing contents of DGS-1100-16/18/24/24P/26
• One D-Link DGS-1100 Series Switch
• One AC power cord
• Four rubber feet
• Screws and two mounting brackets
• One accessory kit for a ground screw
• One Multi-lingual Getting Started Guide
• One CD with User Manual
If any item is found missing or damaged, please contact the local reseller for replacement.
Step 2: Switch Installation
For safe switch installation and operation, it is recommended that you:
• Visually inspect the power cord to see that it is secured fully to the AC power connector.
• Make sure that there is proper heat dissipation and adequate ventilation around the switch.
• Do not place heavy objects on the switch.
Desktop or Shelf Installation
When installing the switch on a desktop or shelf, the rubber feet included with the device must be
attached on the bottom at each corner of the device’s base. Allow enough ventilation space between
the device and the objects around it.

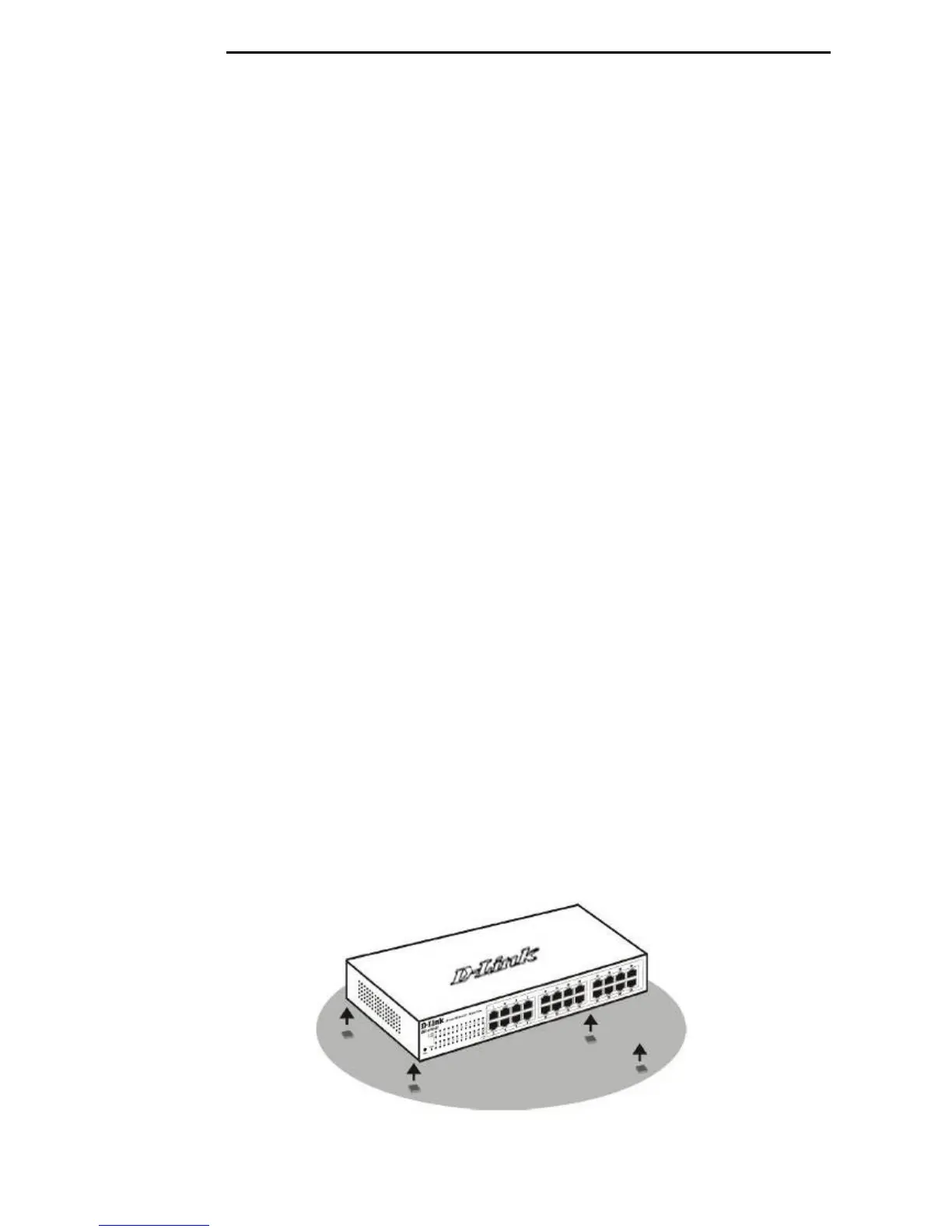

Figure 3-1 – Attach the adhesive rubber pads to the bottom
8
8

D-Link DGS-1100-24P Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	-
Networking standards	IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Voice VLAN, Port-based VLAN
DHCP features	DHCP client
MAC address entries	Static MAC address entries
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Jumbo frames	9216
Forwarding rate	35.71 Mpps
Number of queues	96
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Safety	UL/cUL, CE LVD
Certification	-FCC Class A\\r -CE Class A\\r -VCCI Class A
Product color	Black, Grey
Number of fans	1 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	128.3 W
Power consumption (typical)	21.2 W
Total Power over Ethernet (PoE) budget	100 W
Power over Ethernet plus (PoE+) ports quantity	12
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Noise level	27.6 dB
Flash memory	8 MB
Mean time between failures (MTBF)	563292 h
Package depth	362 mm
Package width	361 mm
Package height	104 mm
Package weight	3169 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1330 mm
Pallet height (sea)	2125 mm
Pallet gross weight (air)	306819 g
Pallet gross weight (sea)	499365 g
Quantity per pallet (air)	81 pc(s)
Quantity per pallet (sea)	135 pc(s)
Shipping (inner) case width	334 mm
Shipping (inner) case height	398 mm
Shipping (inner) case length	380 mm
Shipping (inner) case weight	10697 g
Shipping (inner) case net weight	9507 g
Number of cartons per pallet (air)	27 pc(s)
Number of cartons per pallet (sea)	45 pc(s)
Quantity per shipping (inner) case	3 pc(s)

Weight and Dimensions

Depth	230 mm
Width	280 mm
Height	44 mm
Weight	2150 g
