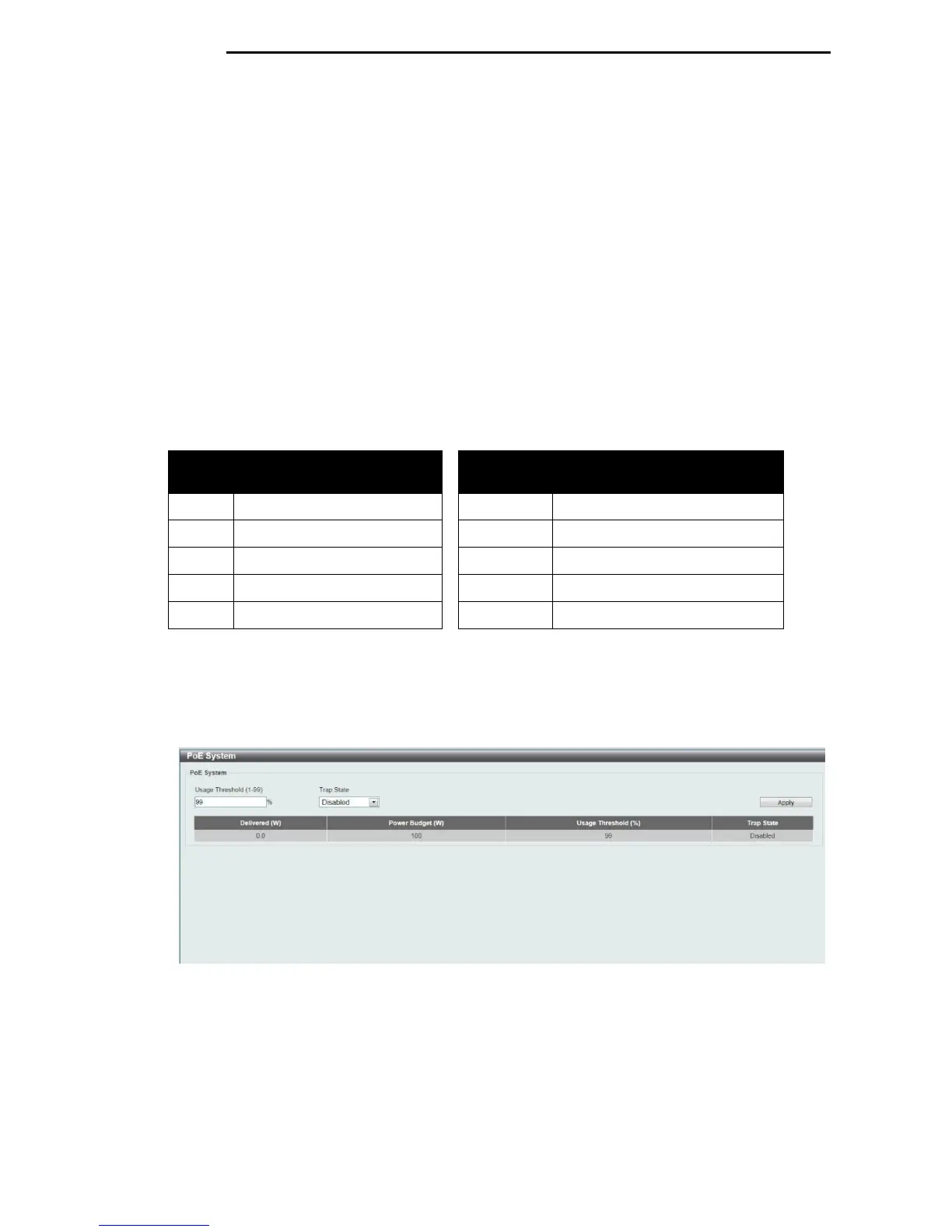

PoE (DGS-1100-24P Only)
The DGS-1100-24P switch supports Power over Ethernet (PoE) as defined by the IEEE 802.3af and
802.3at. Ports 1 through 12 can support PoE up to 30W. Ports 1-12 can supply about 48 VDC power
to Powered Devices (PDs) over Category 5 or Category 3 UTP Ethernet cables. The Switch follows
the standard PSE (Power Sourcing Equipment) pinout Alternative A, whereby power is sent out over
pins 1, 2, 3 and 6. The Switches work with all D-Link 802.3af capable devices.
The Switch includes the following PoE features:
• Auto-discovery recognizes the connection of a PD (Powered Device) and automatically sends
power to it.
• The Auto-disable feature occurs under two conditions: firstly, if the total power consumption
exceeds the system power limit; and secondly, if the per port power consumption exceeds the
per port power limit.
• Active circuit protection automatically disables the port if there is a short. Other ports will remain
active.
Based on 802.3af/at PDs receive power
according to the following classification:
PSE provides power according to the following
classification:
Class Maximum power used by
PD
Class Max power supplied by PSE
0 12.95W 0 16.2W
1 3.84W 1 4.2W
2 6.49W 2 7.4W
3 12.95W 3 16.2W
4 25.5W 4 31.6W
PoE System
This window is used to configure the PoE system, and display the detailed power information and
PoE Trap parameters for PoE modules.
To view the following window, click System > PoE > PoE System, as shown below:
Figure 5-7 PoE System window
2
2
3
3

D-Link DGS-1100-24P Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	-
Networking standards	IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Voice VLAN, Port-based VLAN
DHCP features	DHCP client
MAC address entries	Static MAC address entries
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Jumbo frames	9216
Forwarding rate	35.71 Mpps
Number of queues	96
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Safety	UL/cUL, CE LVD
Certification	-FCC Class A\\r -CE Class A\\r -VCCI Class A
Product color	Black, Grey
Number of fans	1 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	128.3 W
Power consumption (typical)	21.2 W
Total Power over Ethernet (PoE) budget	100 W
Power over Ethernet plus (PoE+) ports quantity	12
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Noise level	27.6 dB
Flash memory	8 MB
Mean time between failures (MTBF)	563292 h
Package depth	362 mm
Package width	361 mm
Package height	104 mm
Package weight	3169 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1330 mm
Pallet height (sea)	2125 mm
Pallet gross weight (air)	306819 g
Pallet gross weight (sea)	499365 g
Quantity per pallet (air)	81 pc(s)
Quantity per pallet (sea)	135 pc(s)
Shipping (inner) case width	334 mm
Shipping (inner) case height	398 mm
Shipping (inner) case length	380 mm
Shipping (inner) case weight	10697 g
Shipping (inner) case net weight	9507 g
Number of cartons per pallet (air)	27 pc(s)
Number of cartons per pallet (sea)	45 pc(s)
Quantity per shipping (inner) case	3 pc(s)

Weight and Dimensions

Depth	230 mm
Width	280 mm
Height	44 mm
Weight	2150 g
