D-Link DGS-1100 Series Switch User Manual
Click the Apply button to accept the changes made.
Click the Delete All button to delete all the entries found in the display table.

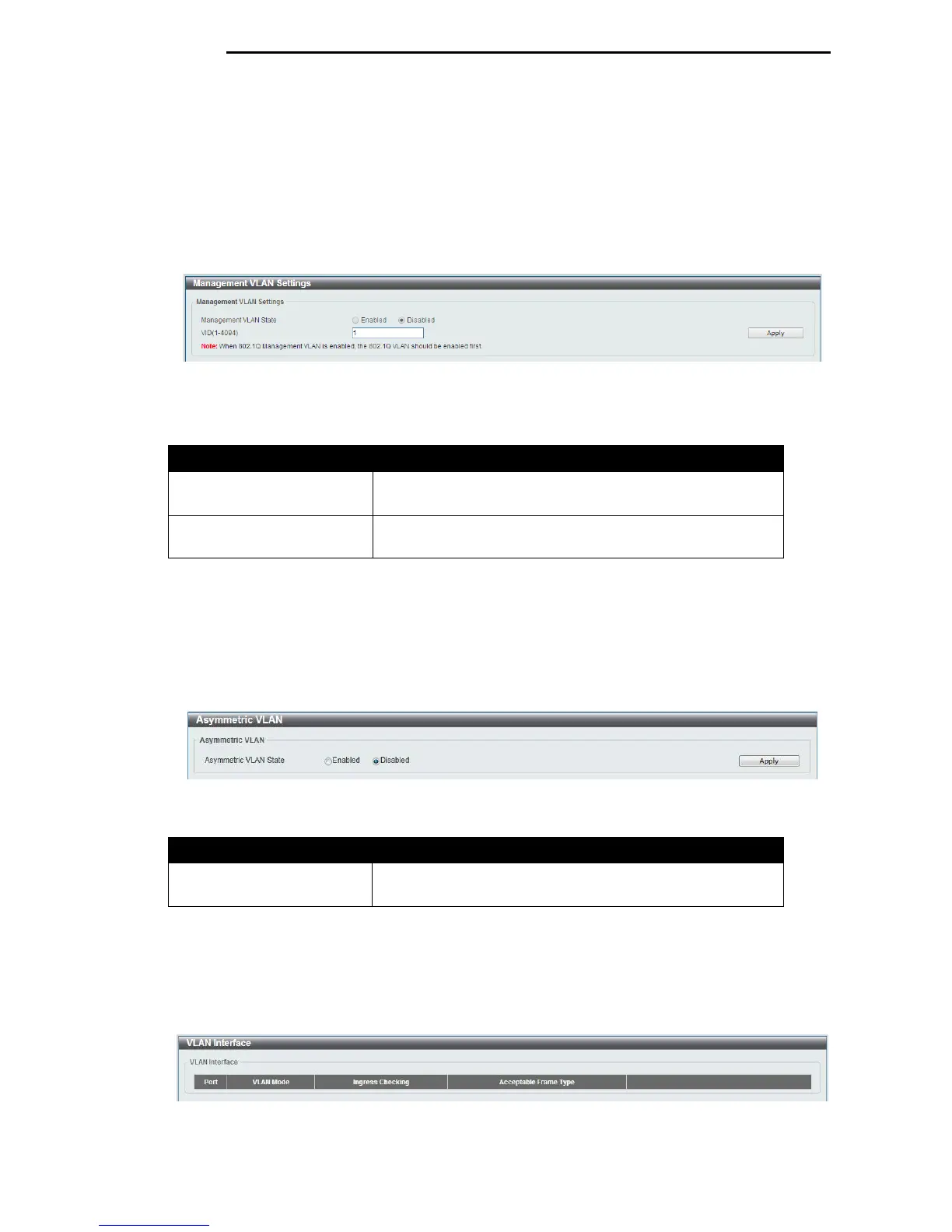

Management VLAN
This window is used to configure the asymmetric VLAN function.
To view the following window, click L2 Features > VLAN > Management VLAN, as shown below:
Figure 7-8 Asymmetric VLAN window
The fields that can be configured are described below:
Parameter Description
Management VLAN State
Select this option to enable or disable the Management
VLAN function.
VID
VLAN VID is a unique number (between 1 and 4094) that
identifies a particular VLAN.
Click the Apply button to accept the changes made.
Asymmetric VLAN
This window is used to configure the asymmetric VLAN function.
To view the following window, click L2 Features > VLAN > Asymmetric VLAN, as shown below:
Figure 7-9 Asymmetric VLAN window
The fields that can be configured are described below:
Parameter Description
Asymmetric VLAN State
Select this option to enable or disable the asymmetric VLAN
function
Click the Apply button to accept the changes made.
VLAN Interface
This window is used to view and configure VLAN interface settings.
To view the following window, click L2 Features > VLAN > VLAN Interface, as shown below:
Figure 7-10 VLAN Interface window
4
4
0
0

D-Link DGS-1100-24P Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	-
Networking standards	IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Voice VLAN, Port-based VLAN
DHCP features	DHCP client
MAC address entries	Static MAC address entries
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Jumbo frames	9216
Forwarding rate	35.71 Mpps
Number of queues	96
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Safety	UL/cUL, CE LVD
Certification	-FCC Class A\\r -CE Class A\\r -VCCI Class A
Product color	Black, Grey
Number of fans	1 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	128.3 W
Power consumption (typical)	21.2 W
Total Power over Ethernet (PoE) budget	100 W
Power over Ethernet plus (PoE+) ports quantity	12
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Noise level	27.6 dB
Flash memory	8 MB
Mean time between failures (MTBF)	563292 h
Package depth	362 mm
Package width	361 mm
Package height	104 mm
Package weight	3169 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1330 mm
Pallet height (sea)	2125 mm
Pallet gross weight (air)	306819 g
Pallet gross weight (sea)	499365 g
Quantity per pallet (air)	81 pc(s)
Quantity per pallet (sea)	135 pc(s)
Shipping (inner) case width	334 mm
Shipping (inner) case height	398 mm
Shipping (inner) case length	380 mm
Shipping (inner) case weight	10697 g
Shipping (inner) case net weight	9507 g
Number of cartons per pallet (air)	27 pc(s)
Number of cartons per pallet (sea)	45 pc(s)
Quantity per shipping (inner) case	3 pc(s)

Weight and Dimensions

Depth	230 mm
Width	280 mm
Height	44 mm
Weight	2150 g
