D-Link DGS-1100 Series Switch User Manual

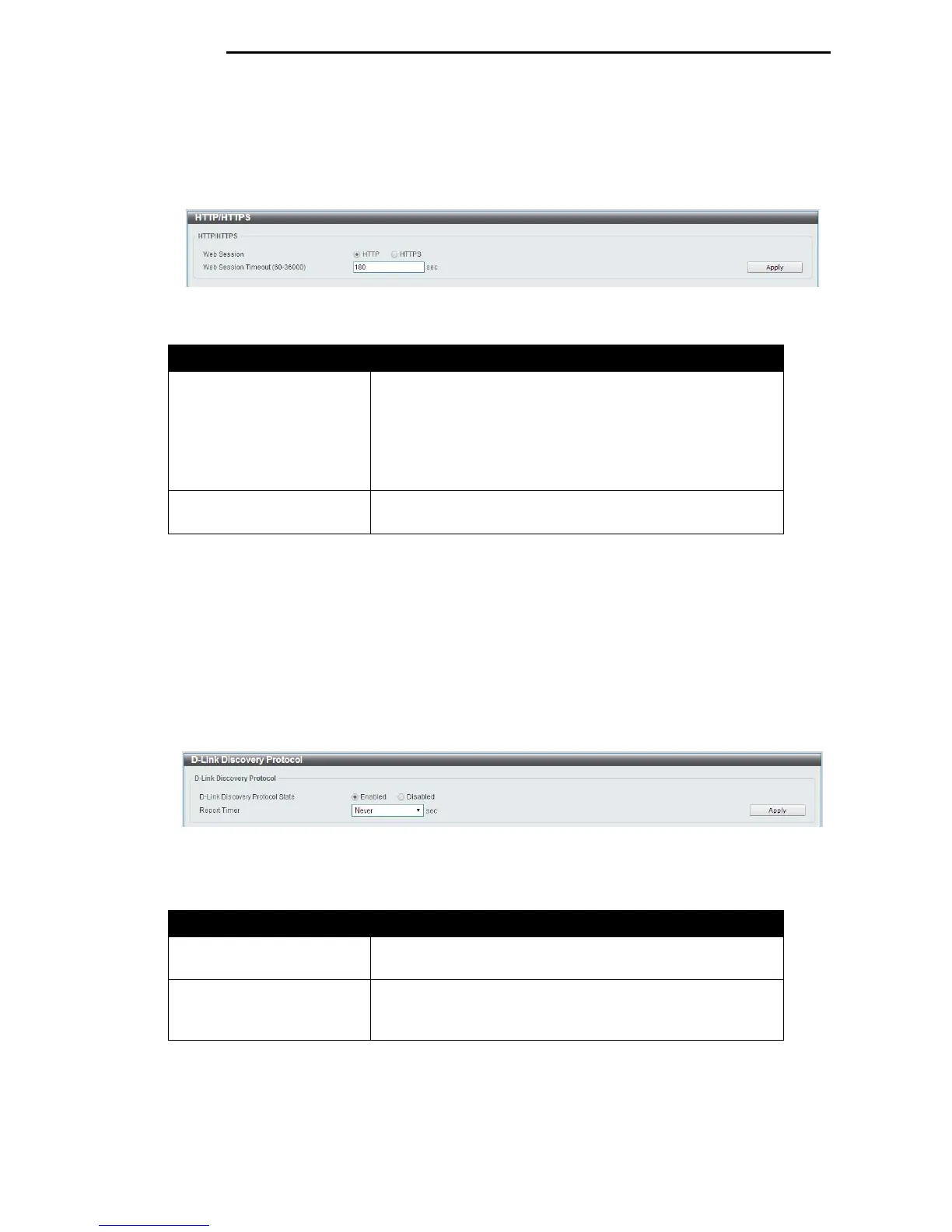

HTTP/HTTPS
This window is used to configure Web settings on the Switch.
To view the following window, click Management > HTTP/HTTPS, as shown below:
Figure 6-5 HTTP/HTTPS window
The fields that can be configured for HTTP/HTTPS Settings are described below:
Parameter Description
Web Session
Select this option to enable the configuration through HTTP
or HTTPS.
Note: When switching from HTTP to HTTPS mode, the
switch will take about 30 seconds to initialize the secured
HTTP environment.
Web Session Timeout
Enter a value for the amount of time in seconds before the
web session expires.
Click the Apply button to accept the changes made.
Note: If the switch is in HTTPS mode, the firmware or configuration cannot be upgraded using
regular HTTP.
D-Link Discovery Protocol
This window is used to configure and display D-Link Discovery Protocol (DDP).
To view the following window, click Management > D-Link Discovery Protocol, as shown below:
Figure 6-6 D-Link Discovery Protocol window
The fields that can be configured for D-Link Discovery Protocol are described below:
Parameter Description
D-Link Discovery Protocol
State
Select this option to enable or disable DDP global state.
Report Timer
Select the interval in seconds between two consecutive DDP
report messages. Options to choose from are 30, 60, 90,120,
and Never.
Click the Apply button to accept the changes made.
3
3
5
5

D-Link DGS-1100-24P Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	-
Networking standards	IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Voice VLAN, Port-based VLAN
DHCP features	DHCP client
MAC address entries	Static MAC address entries
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Jumbo frames	9216
Forwarding rate	35.71 Mpps
Number of queues	96
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Safety	UL/cUL, CE LVD
Certification	-FCC Class A\\r -CE Class A\\r -VCCI Class A
Product color	Black, Grey
Number of fans	1 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	128.3 W
Power consumption (typical)	21.2 W
Total Power over Ethernet (PoE) budget	100 W
Power over Ethernet plus (PoE+) ports quantity	12
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Noise level	27.6 dB
Flash memory	8 MB
Mean time between failures (MTBF)	563292 h
Package depth	362 mm
Package width	361 mm
Package height	104 mm
Package weight	3169 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1330 mm
Pallet height (sea)	2125 mm
Pallet gross weight (air)	306819 g
Pallet gross weight (sea)	499365 g
Quantity per pallet (air)	81 pc(s)
Quantity per pallet (sea)	135 pc(s)
Shipping (inner) case width	334 mm
Shipping (inner) case height	398 mm
Shipping (inner) case length	380 mm
Shipping (inner) case weight	10697 g
Shipping (inner) case net weight	9507 g
Number of cartons per pallet (air)	27 pc(s)
Number of cartons per pallet (sea)	45 pc(s)
Quantity per shipping (inner) case	3 pc(s)

Weight and Dimensions

Depth	230 mm
Width	280 mm
Height	44 mm
Weight	2150 g
