D-Link DGS-1100 Series Switch User Manual
Voice VLAN OUI
This window is used to configure the user-defined voice traffic’s OUI. The OUI is used to identify the
voice traffic. There are a number of pre-defined OUIs. The user can further define the user-defined
OUIs if needed. The user-defined OUI cannot be the same as the pre-defined OUI.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN OUI, as
show below:

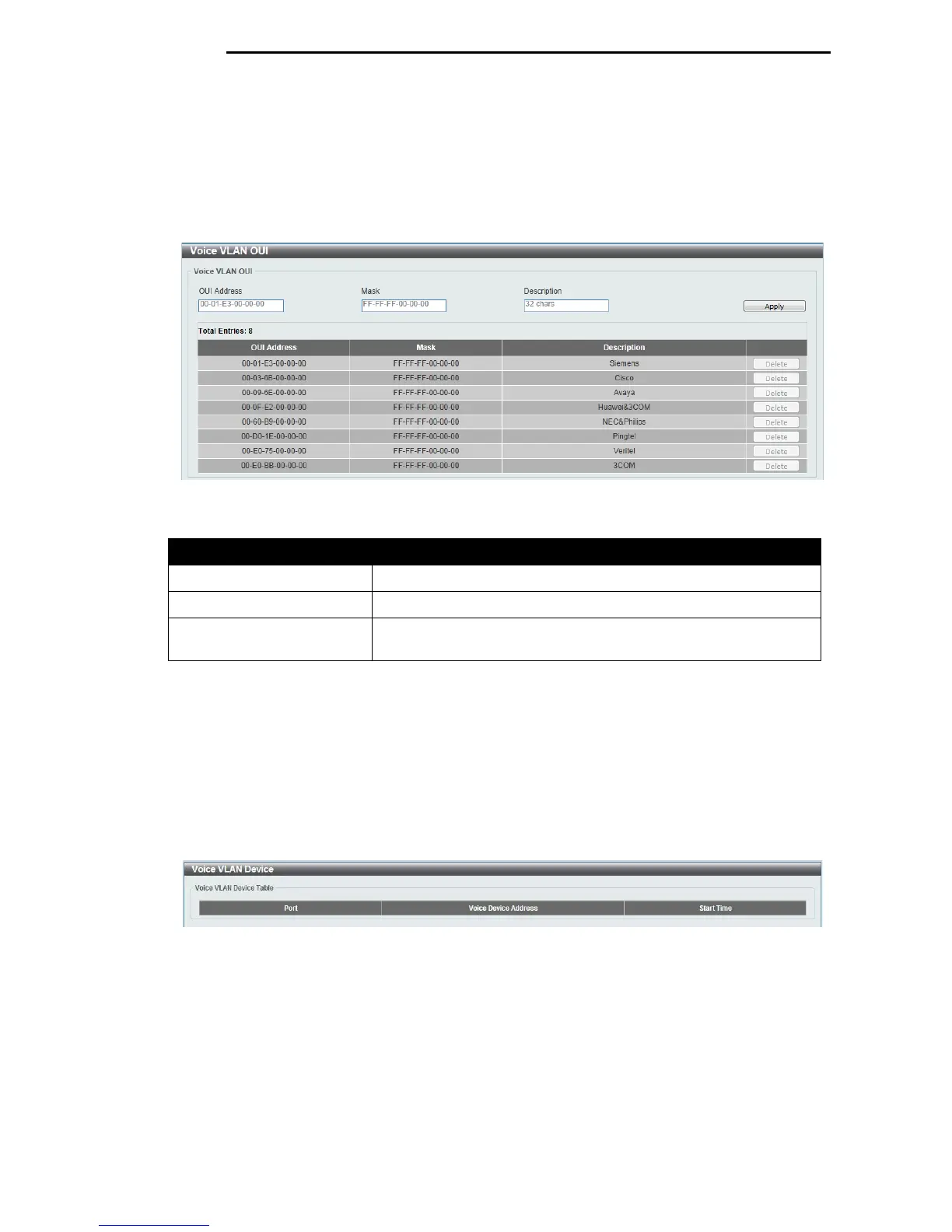

Figure 7-20 Voice VLAN OUI window
The fields that can be configured are described below:
Parameter Description
OUI Address
Enter the OUI MAC address.
Mask
Enter the OUI MAC address matching bitmask.
Description
Enter the description for the user-defined OUI with a maximum of 8
characters.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specified entry.
Voice VLAN Device
This window is used to show voice devices that are connected to the ports. The start time is the time
when the device is detected on this port, the activate time is the latest time saw the device sending
the traffic.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN Device, as
show below:
Figure 7-201 Voice VLAN Device window
4
4
7
7

D-Link DGS-1100-24P Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	-
Networking standards	IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Voice VLAN, Port-based VLAN
DHCP features	DHCP client
MAC address entries	Static MAC address entries
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Jumbo frames	9216
Forwarding rate	35.71 Mpps
Number of queues	96
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Safety	UL/cUL, CE LVD
Certification	-FCC Class A\\r -CE Class A\\r -VCCI Class A
Product color	Black, Grey
Number of fans	1 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	128.3 W
Power consumption (typical)	21.2 W
Total Power over Ethernet (PoE) budget	100 W
Power over Ethernet plus (PoE+) ports quantity	12
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Noise level	27.6 dB
Flash memory	8 MB
Mean time between failures (MTBF)	563292 h
Package depth	362 mm
Package width	361 mm
Package height	104 mm
Package weight	3169 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1330 mm
Pallet height (sea)	2125 mm
Pallet gross weight (air)	306819 g
Pallet gross weight (sea)	499365 g
Quantity per pallet (air)	81 pc(s)
Quantity per pallet (sea)	135 pc(s)
Shipping (inner) case width	334 mm
Shipping (inner) case height	398 mm
Shipping (inner) case length	380 mm
Shipping (inner) case weight	10697 g
Shipping (inner) case net weight	9507 g
Number of cartons per pallet (air)	27 pc(s)
Number of cartons per pallet (sea)	45 pc(s)
Quantity per shipping (inner) case	3 pc(s)

Weight and Dimensions

Depth	230 mm
Width	280 mm
Height	44 mm
Weight	2150 g
