D-Link DGS-1100 Series Switch User Manual
13. Save and Tools
Save Configuration
Firmware Upgrade & Backup
Configuration Restore & Backup
Log Backup
Ping
Reset
Reboot System
Save Configuration
This window is used to save the running configuration to the start-up configuration of the Switch.
This is to prevent the loss of configuration in the event of a power failure.
To view the following window, click Save > Save Configuration, as shown below:

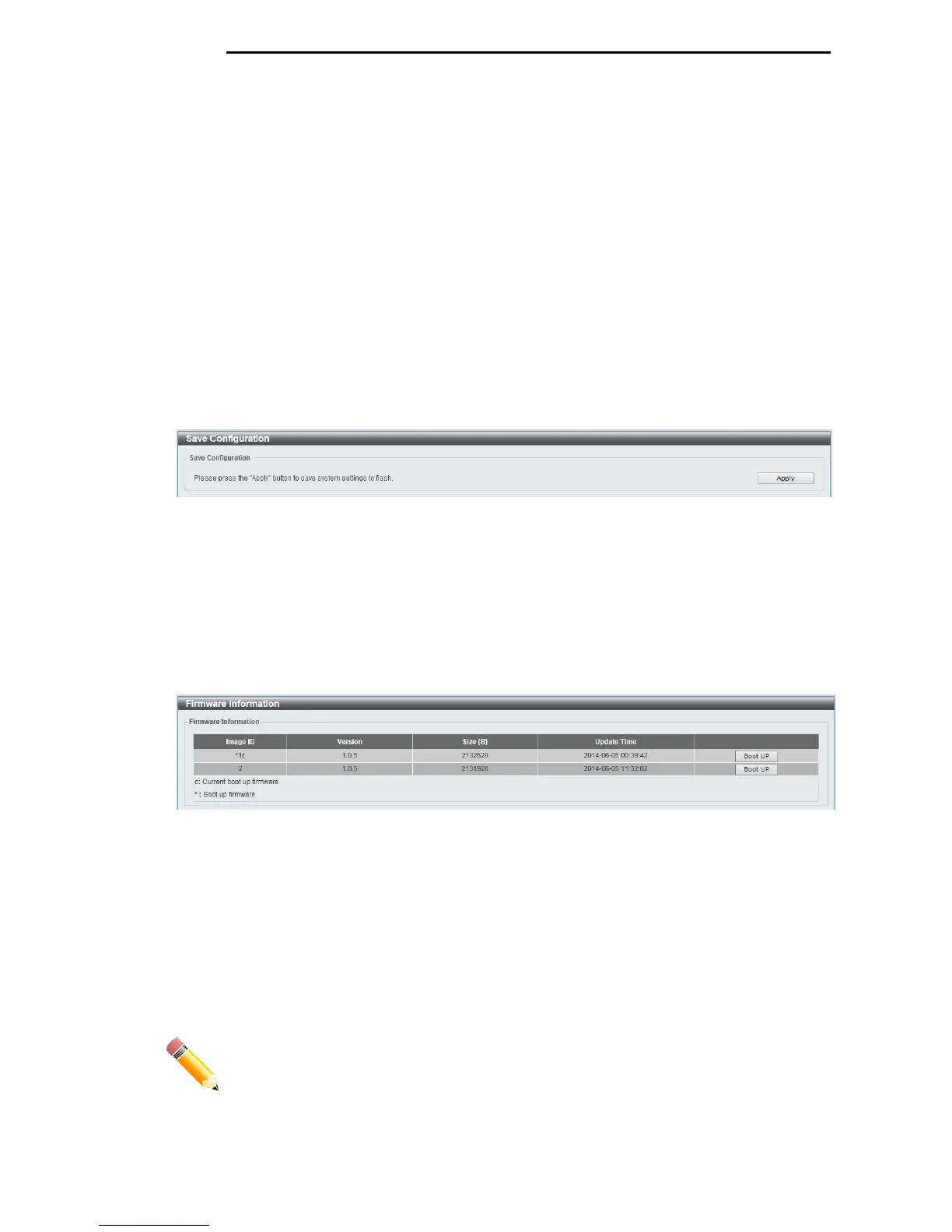

Figure 13-1 Save Configuration window
Click the Apply button to save the configuration to the switch’s flash memory.
Firmware Information
This window is used to show firmware information.
To view the following window, click Tools > Firmware Information, as shown below:
Figure 13-2 Firmware Information window
Boot Up: Clicking the Boot Up button will set that firmware image as the active image to use upon
the next system start up.
Note: Changing the firmware only happens after the switch has been manually rebooted. In order to
boot with the newly selected firmware, make sure that the switch is rebooted.
Firmware Upgrade & Backup
Note: When upgrading the firmware on the DGS-1100 Series switch, only the image
not currently active can be upgraded. All DGS-1100 Series switches come with two
images, however only one can be active at any time. (e.g. If image 1 is currently in use,
only image 2 can be upgraded, and vice versa.)
Note: If the switch is in HTTPS mode, the firmware or configuration cannot be
upgraded using regular HTTP.
