D-Link DGS-1210-52MP User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
94
The ACL Configuration Wizard will aid with the creation of access profiles and ACL Rules. The ACL Wizard
will create the access rule and profile automatically. The maximum usable profiles are 50 and with 200 Rules
in total for the switch.
To create a new access rule, select Create and enter the Access-List Name then click Next button.

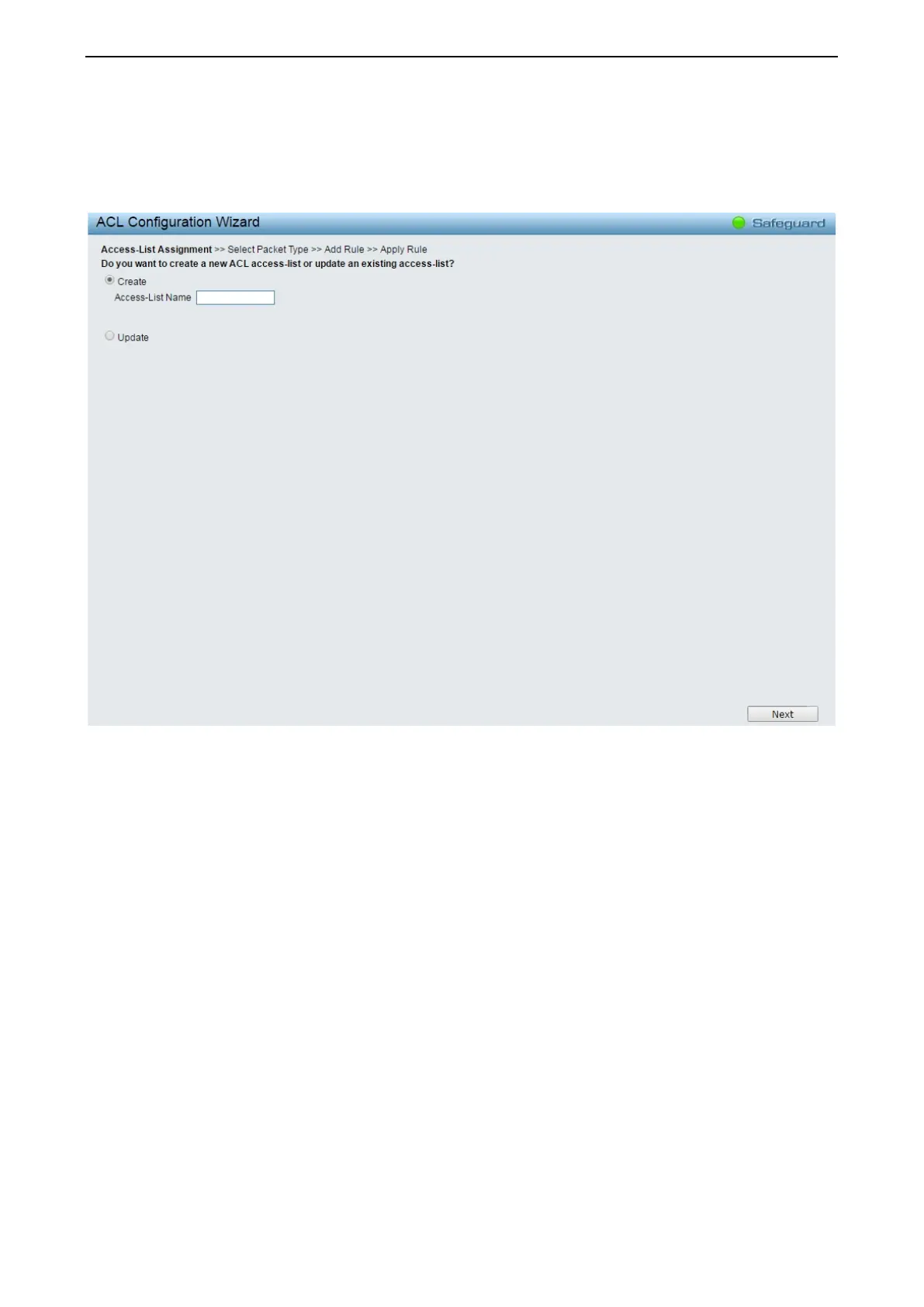

Figure 4.121 - ACL > ACL Wizard – Create Access-List
The steps of adding an access profile are described below:
1) Select the Packet Type: MAC, IPv4 or IPv6.

D-Link DGS-1210-52MP Specifications

General

PoE Standard	IEEE 802.3af/at
PoE Budget	370W
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
MAC Address Table Size	16K
Power Input	100-240 VAC, 50/60 Hz
Ports	48 x 10/100/1000BASE-T PoE+, 4 x Gigabit SFP
Jumbo Frame Support	9216 Bytes
Dimensions	440 x 250 x 44 mm
Operating Temperature	0 to 50 °C
Storage Temperature	-40 to 70 °C (-40 to 158°F)
Humidity	5% to 95% non-condensing
