4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
68

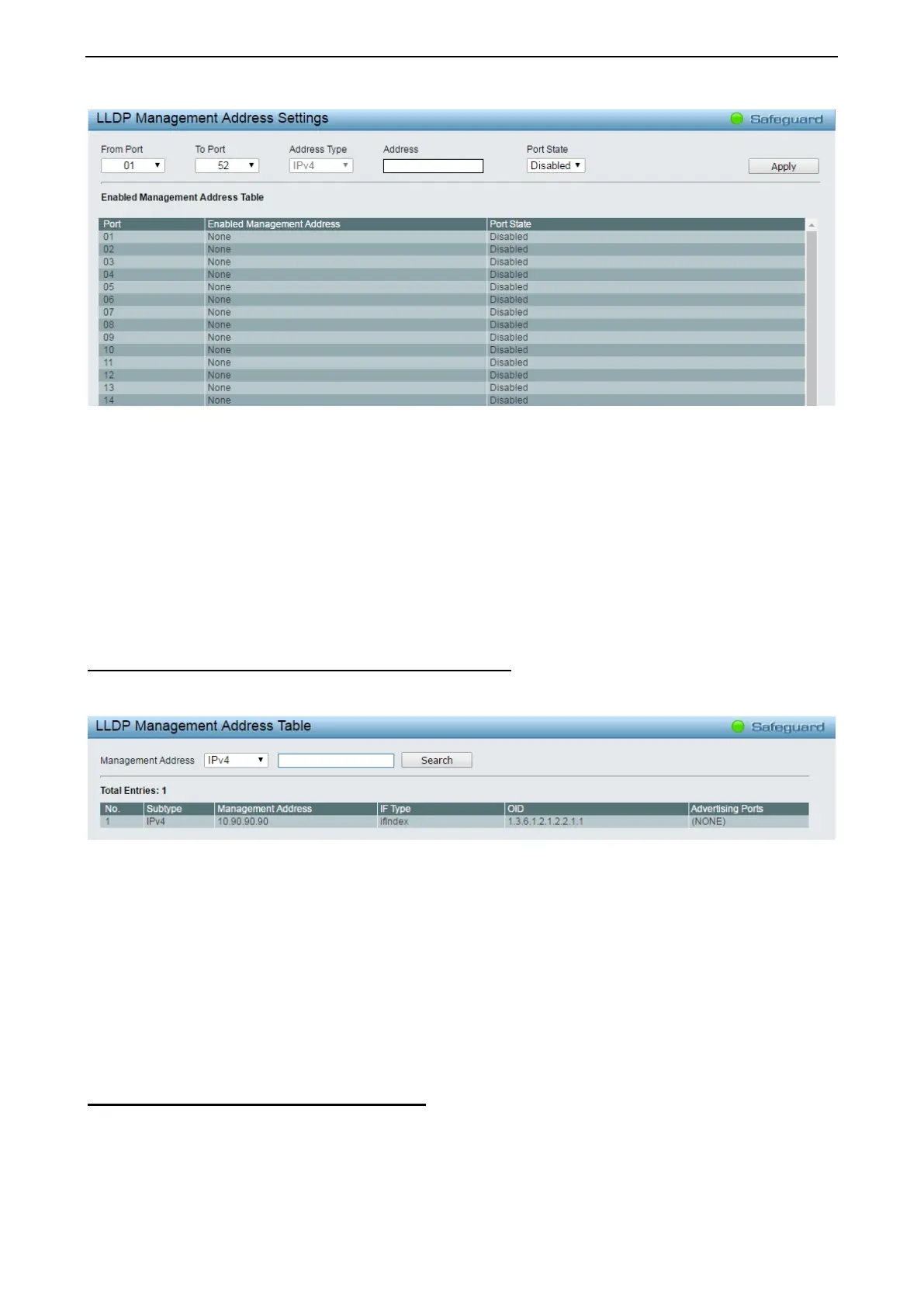

Figure 4.77 – L2 Functions > LLDP > LLDP Management Address Settings
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
Address Type: Specifies the LLDP address type on the port. The value is always IPv4.
Address: Specifies the address.
Port State: Specifies whether the Port State is enabled n the port. The possible field values are:
Enabled – Enables the port state configured on the port.
Disabled – Disables the port state configured on the port.
Click the Apply button to implement changes made.
L2 Functions > LLDP > LLDP Management Address Table
The LLDP Management Address Table page displays the detailed management address information for the
entry.
Figure 4.78 – L2 Functions > LLDP > LLDP Management Address Table
Management Address: Select IPv4 or IPv6 address and enter the IP address.
Click Search and the table will update and display the values required.
Subtype: Displays the managed address subtype. For example, MAC address or IPv4 address.
Management Address: Displays the IP address.
IF Type: Displays the IF Type.
OID: Displays the SNMP OID.
Advertising Ports: Displays the advertising ports.
L2 Functions > LLDP > LLDP Local Port Table
The LLDP Local Port Table page displays LLDP local port information.
