Web-based Management
After clicking the Exit button in Smart Wizard you will see the screen below:

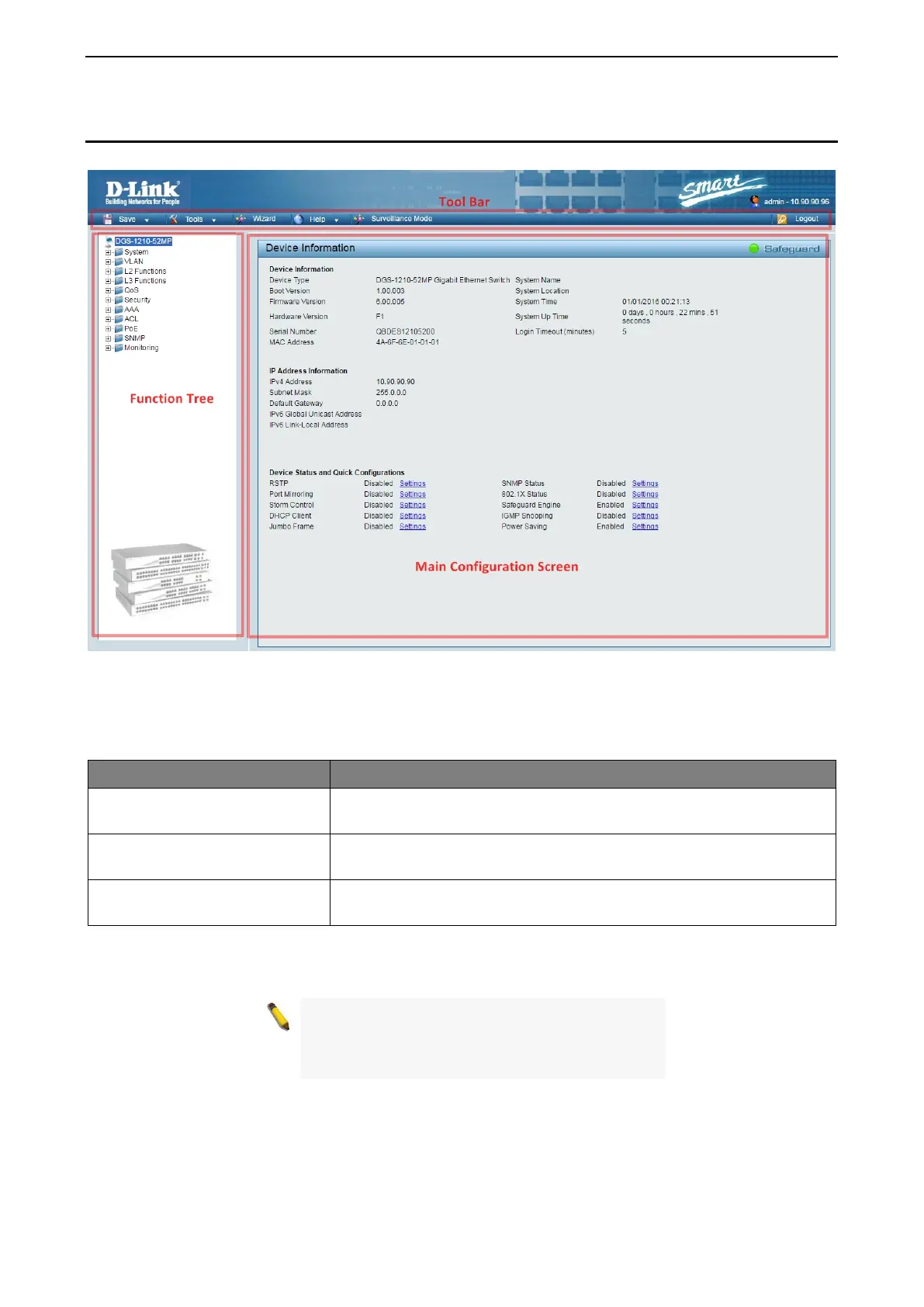

Figure 4.6 – Web-based Management
The above image is the Web-based Management screen. The three main areas are the Tool Bar on top, the
Function Tree, and the Main Configuration Screen.
Item Area Description
Tool Bar
To provide a quick and convenient way for essential utility functions
like firmware and configuration management.
Function Tree
By choosing different functions in the Function Tree, you can change
all the settings in the Main Configuration Screen.
Main Configuration Screen
To display the current status of your Switch by clicking the model name
on top of the function tree.
At the upper right corner of the screen the username and current IP address will be displayed.
Under the username is the Logout button. Click this to end this session.
NOTE:
If you close the web browser without
clicking the Logout button first, then it will be seen
as an abnormal exit and the login session will still
be occupied.
Finally, by clicking on the D-Link logo at the upper-left corner of the screen you will be redirected to the local
D-Link website.
