D-Link DGS-1210-52MP User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
44

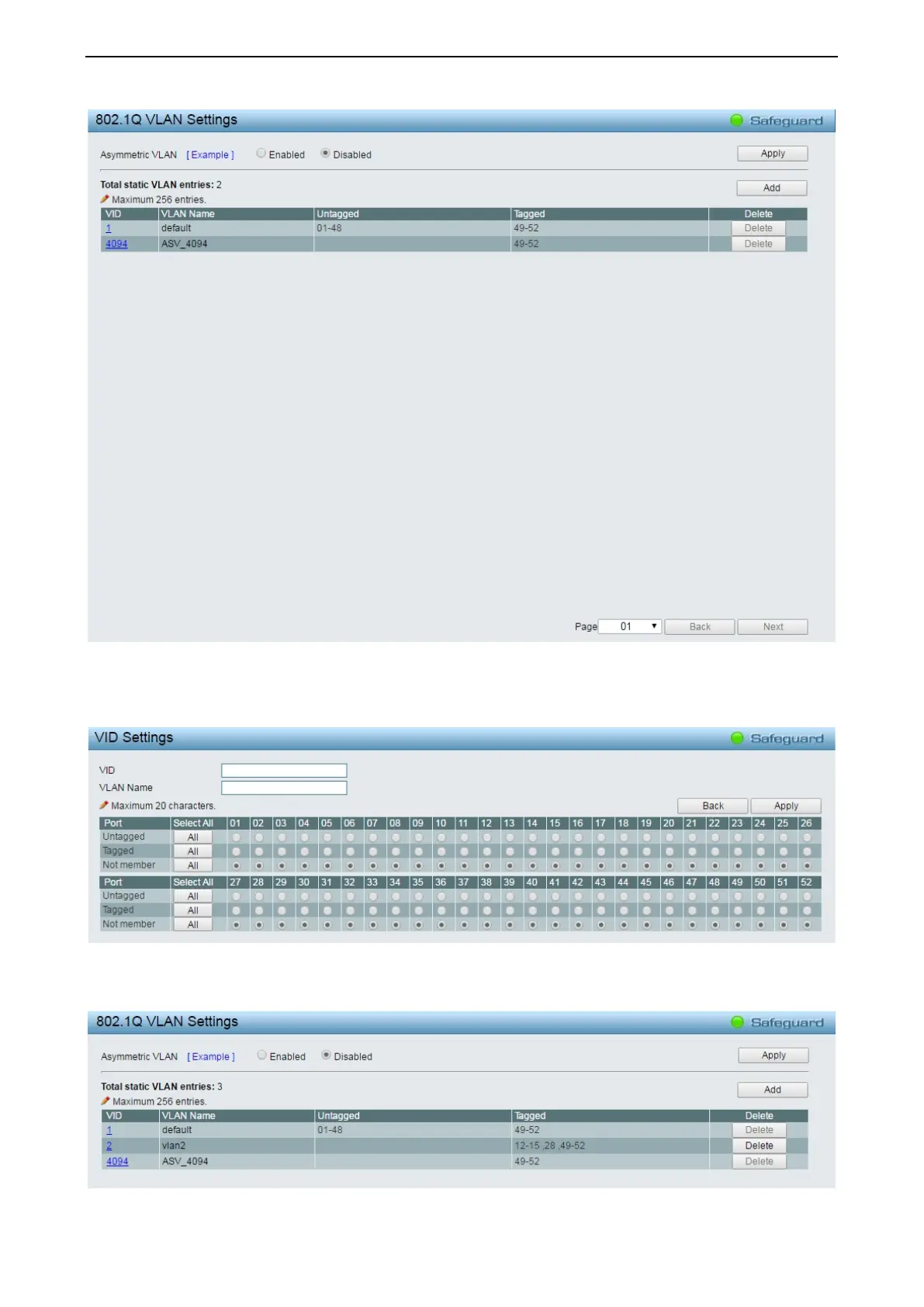

Figure 4.39 – Configuration > 802.1Q VLAN
Click Add to create a new VID group, entering the VID and VLAN name, assigning ports from 01 to 52 as
Untag, Tag or Not Member. To save the VID group, click Apply.
Figure 4.40 – Configuration > 802.1Q VLAN > Add VID
After click Apply, the 802.1Q VLAN Configuration Table will displayed with updates.
Figure 4.41 – Configuration > 802.1Q VLAN > Add VLAN

D-Link DGS-1210-52MP Specifications

General

PoE Standard	IEEE 802.3af/at
PoE Budget	370W
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
MAC Address Table Size	16K
Power Input	100-240 VAC, 50/60 Hz
Ports	48 x 10/100/1000BASE-T PoE+, 4 x Gigabit SFP
Jumbo Frame Support	9216 Bytes
Dimensions	440 x 250 x 44 mm
Operating Temperature	0 to 50 °C
Storage Temperature	-40 to 70 °C (-40 to 158°F)
Humidity	5% to 95% non-condensing
