D-Link DIR-615 User Manual

DIR-615 Wireless N300 Router
User Manual
Configuring via Web-based Interface
WMM
On the Wi-Fi / WMM page, you can enable the Wi-Fi Multimedia function.
The WMM function implements the QoS features for Wi-Fi networks. It helps to improve the
quality of data transfer over Wi-Fi networks by prioritizing different types of traffic.
To enable the function, select the WMM checkbox and click the Apply button.

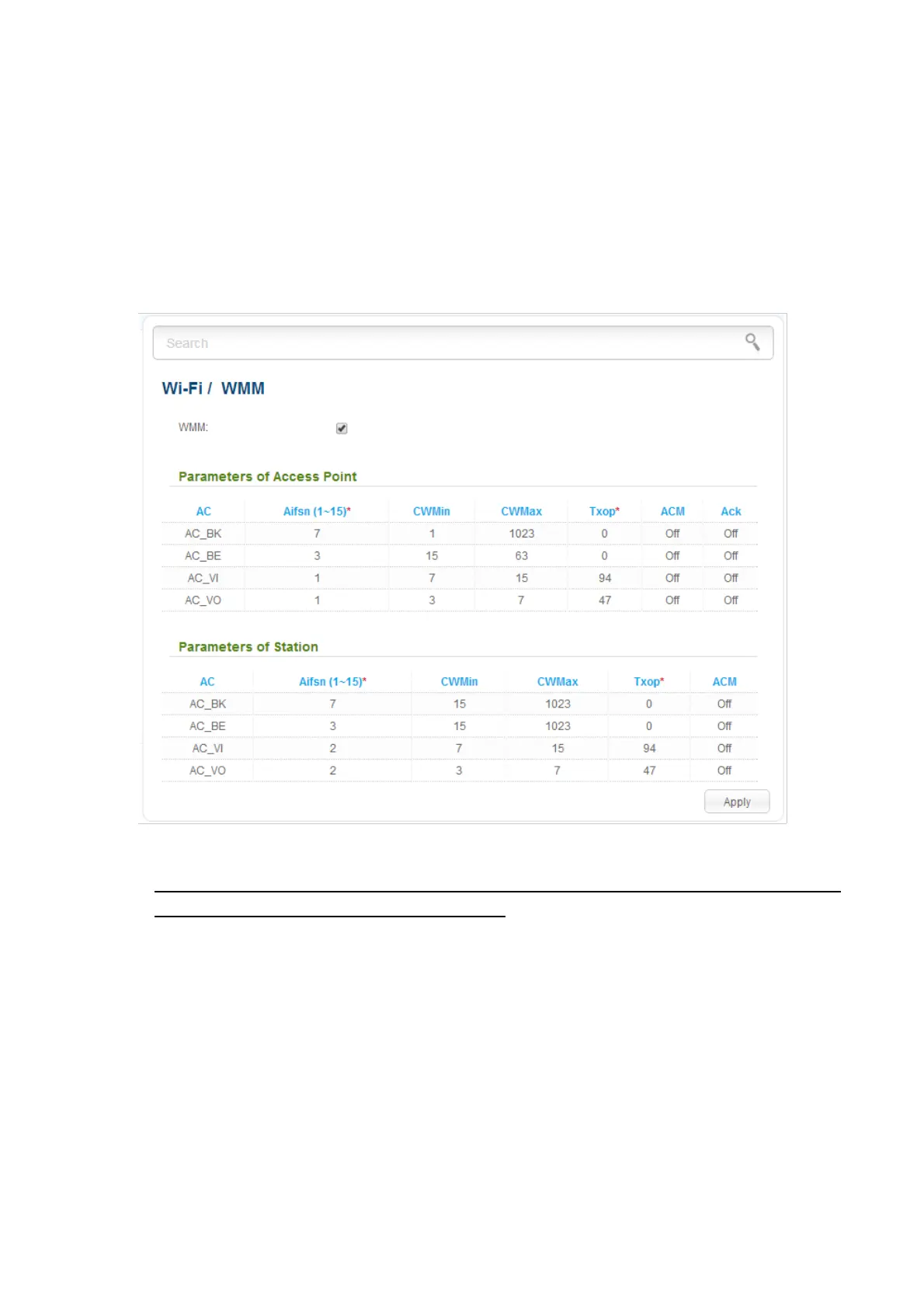

Figure 134. The page for configuring the WMM function.
!
All needed settings for the WMM function are specified in the device's system. It is
recommended not to change the default values.
The WMM function allows assigning priorities for four Access Categories (AC):
• AC_BK (Background), low priority traffic (print jobs, file downloads, etc.).
• AC_BE (Best Effort), traffic from legacy devices or devices/applications that do not support
QoS.
• AC_VI (Video).
• AC_VO (Voice).
Parameters of the Access Categories are defined for both the router itself (in the Parameters of
Access Point section) and wireless devices connected to it (in the Parameters of Station
section).
Page 167 of 208

D-Link DIR-615 Specifications

Wireless Signal Rates and Frequency

wireless signal rate	108Mbps • 48Mbps, 54Mbps - 24Mbps, 36Mbps - 12Mbps, 18Mbps - 9Mbps, 11Mbps - 5.5Mbps, 6Mbps - 1Mbps, 2Mbps
MSC wireless signal rate	130Mbps (270) - 117Mbps (243), 104Mbps (216) - 78Mbps (162), 66Mbps (135) - 58.5Mbps (121.5), 52Mbps (108) - 39Mbps (81), 26Mbps (54) - 19.5Mbps (40.5), 12Mbps (27) - 6.5Mbps (13.5)
frequency range	2.4GHz to 2.483GHz

Power and LEDs

transmitter output power	17dBm ± 2dB
LEDs	Power - Internet, WLAN - LAN (10/100)

Operating Environment

operating temperature	32°F to 104°F ( 0°C to 40°C)
humidity	95% maximum (non-condensing)
indoor use only	Yes

Weight and Dimensions

length	7.8 inches
width	5 inches
height	1.2 inches
