D-Link DIR-615 User Manual

DIR-615 Wireless N300 Router
User Manual
Installation and Connection
6. Select the Obtain an IP address automatically and Obtain DNS server address
automatically radio buttons. Click the OK button.

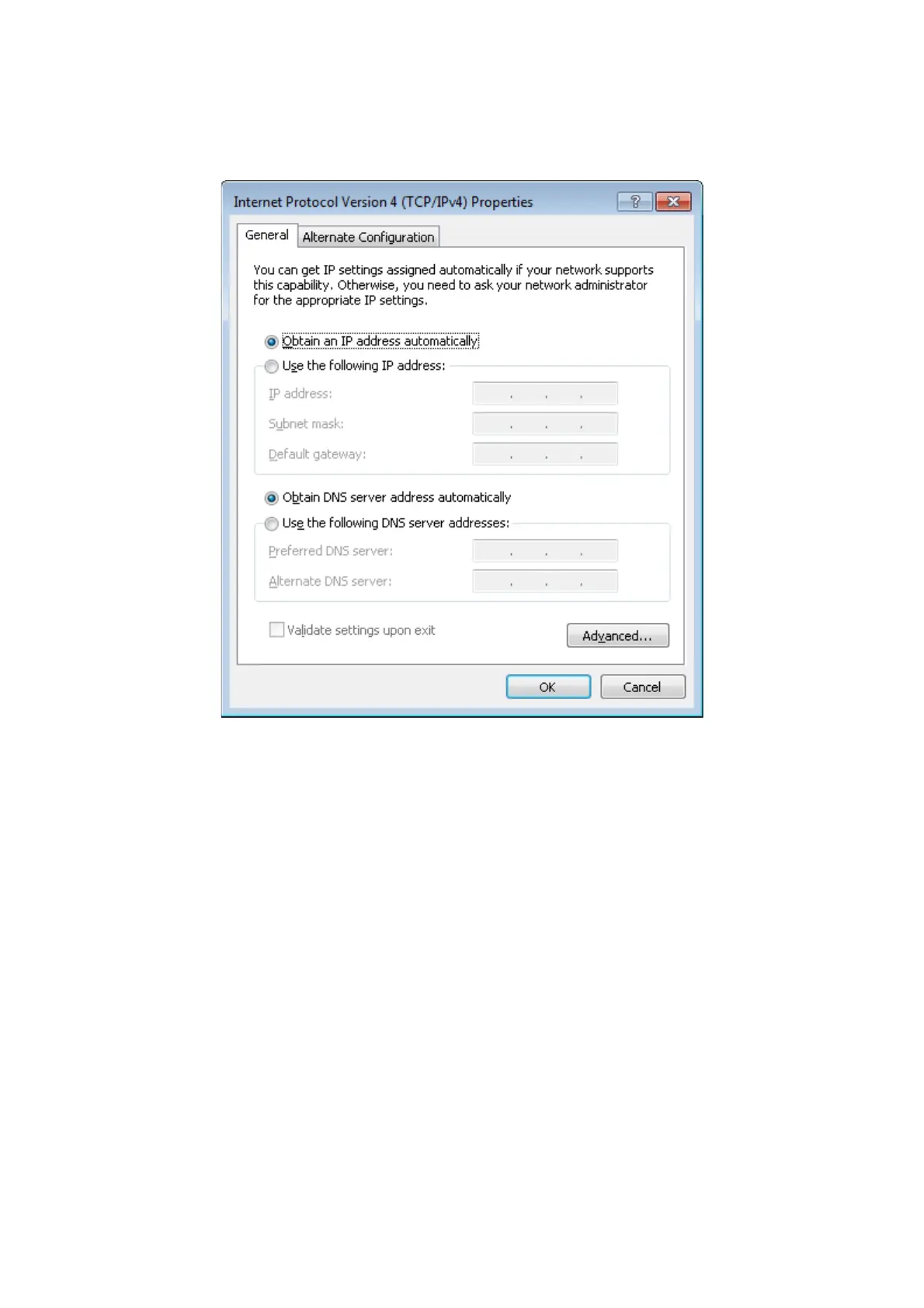

Figure 11. The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7. Click the OK button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
PC with Wi-Fi Adapter
1. Connect the power cord to the power connector port on the back panel of the router, then
plug the power adapter into an electrical outlet or power strip.
2. Turn on the router by pressing the ON/OFF button on its back panel.
3. Turn on your PC and wait until your operating system is completely loaded.
4. Turn on your Wi-Fi adapter. As a rule, modern notebooks with built-in wireless NICs are
equipped with a button or switch that turns on/off the wireless adapter (refer to your PC
documents). If your PC is equipped with a pluggable wireless NIC, install the software
provided with your Wi-Fi adapter.
Page 24 of 208

D-Link DIR-615 Specifications

Wireless Signal Rates and Frequency

wireless signal rate	108Mbps • 48Mbps, 54Mbps - 24Mbps, 36Mbps - 12Mbps, 18Mbps - 9Mbps, 11Mbps - 5.5Mbps, 6Mbps - 1Mbps, 2Mbps
MSC wireless signal rate	130Mbps (270) - 117Mbps (243), 104Mbps (216) - 78Mbps (162), 66Mbps (135) - 58.5Mbps (121.5), 52Mbps (108) - 39Mbps (81), 26Mbps (54) - 19.5Mbps (40.5), 12Mbps (27) - 6.5Mbps (13.5)
frequency range	2.4GHz to 2.483GHz

Power and LEDs

transmitter output power	17dBm ± 2dB
LEDs	Power - Internet, WLAN - LAN (10/100)

Operating Environment

operating temperature	32°F to 104°F ( 0°C to 40°C)
humidity	95% maximum (non-condensing)
indoor use only	Yes

Weight and Dimensions

length	7.8 inches
width	5 inches
height	1.2 inches
