D-Link DIR-615 User Manual

DIR-615 Wireless N300 Router
User Manual
Configuring via Web-based Interface
IPTV Settings Wizard
To configure the router to use an IPTV set-top box, click the IPTV settings wizard link in the
Home section.

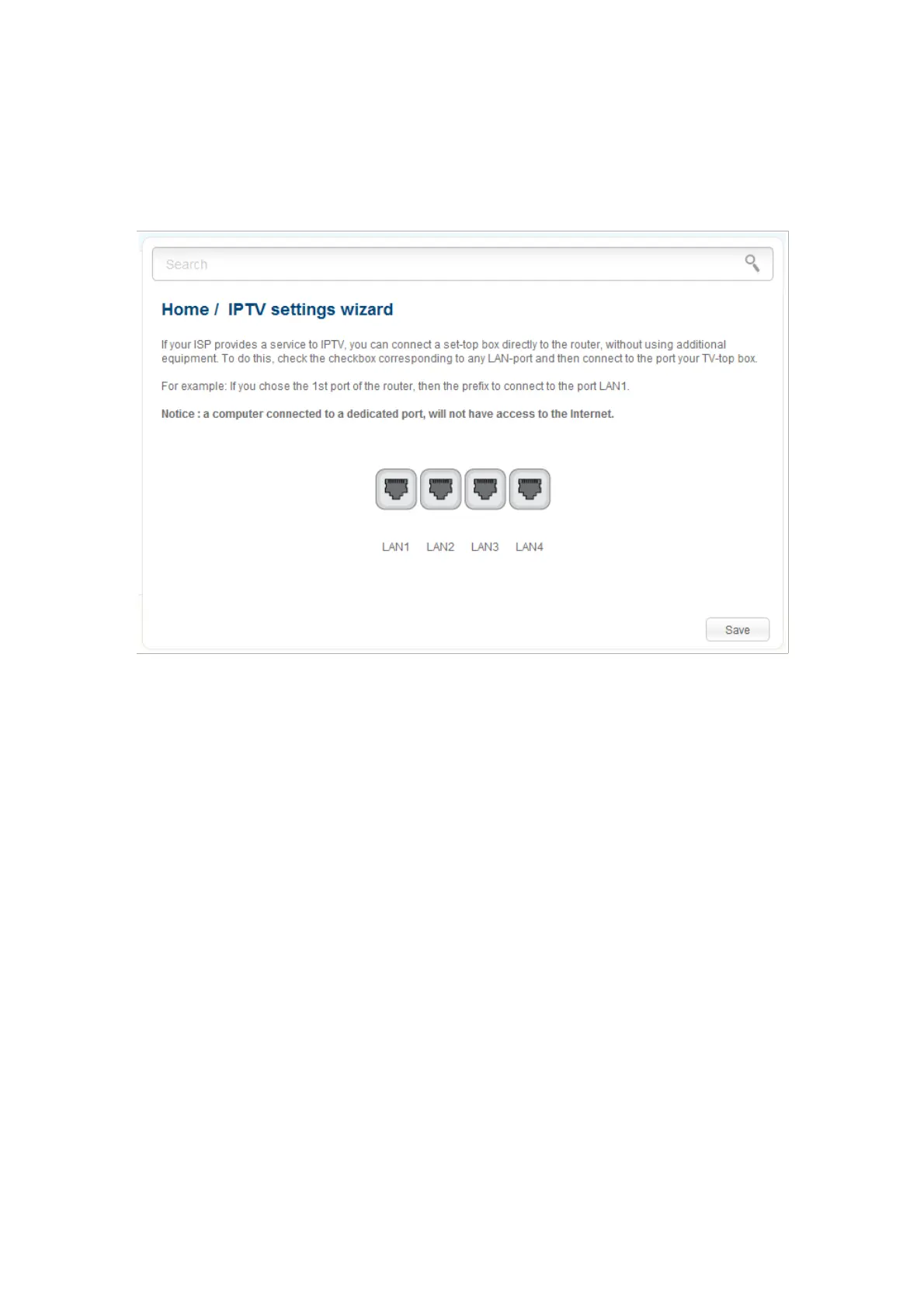

Figure 79. The page for selecting a LAN port to connect an IPTV set-top box.
On the opened page, select the LAN port of the router to which you will connect your IPTV set-top
box and click the Save button. After clicking the button, the Home / Information page opens.
If in the future you need to disconnect your IPTV set-top box from the specified LAN port and
connect to it a computer, on the current page deselect the LAN port and click the Save button.
If for accessing the Internet and IPTV services your ISP uses virtual local area networks with
identifiers (VLAN ID), to configure access to the IPTV service, proceed to the Advanced / VLAN
page, create a group of ports with the required value of the VLAN ID parameter, the Bridge type,
and the port to which the set-top box will be connected (see the VLAN section, page 170, for a
detailed description of the elements from the page).
Page 97 of 208

D-Link DIR-615 Specifications

Wireless Signal Rates and Frequency

wireless signal rate	108Mbps • 48Mbps, 54Mbps - 24Mbps, 36Mbps - 12Mbps, 18Mbps - 9Mbps, 11Mbps - 5.5Mbps, 6Mbps - 1Mbps, 2Mbps
MSC wireless signal rate	130Mbps (270) - 117Mbps (243), 104Mbps (216) - 78Mbps (162), 66Mbps (135) - 58.5Mbps (121.5), 52Mbps (108) - 39Mbps (81), 26Mbps (54) - 19.5Mbps (40.5), 12Mbps (27) - 6.5Mbps (13.5)
frequency range	2.4GHz to 2.483GHz

Power and LEDs

transmitter output power	17dBm ± 2dB
LEDs	Power - Internet, WLAN - LAN (10/100)

Operating Environment

operating temperature	32°F to 104°F ( 0°C to 40°C)
humidity	95% maximum (non-condensing)
indoor use only	Yes

Weight and Dimensions

length	7.8 inches
width	5 inches
height	1.2 inches

Summary
