D-Link DIR-615 User Manual

DIR-615 Wireless N300 Router
User Manual
Configuring via Web-based Interface
Telnet
On the System / Telnet page, you can enable or disable access to the device settings via TELNET
from your LAN. By default, access is enabled.

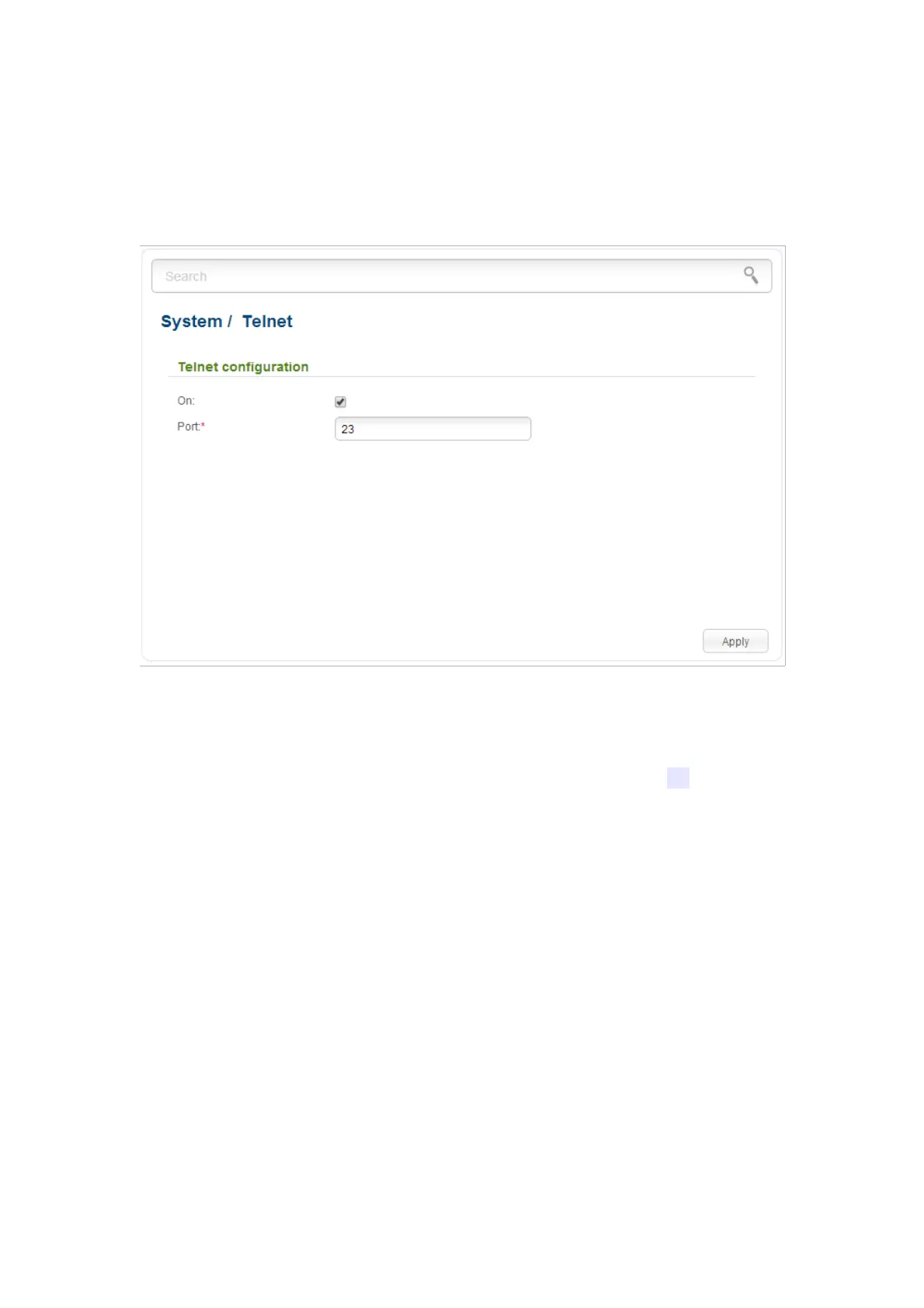

Figure 158. The System / Telnet page.
To disable access via TELNET, deselect the On checkbox and click the Apply button.
To enable access via TELNET again, select the On checkbox. In the Port field, enter the number of
the router's port through which access will be allowed (by default, the port 23 is specified). Then
click the Apply button.
Page 203 of 208

D-Link DIR-615 Specifications

Wireless Signal Rates and Frequency

wireless signal rate	108Mbps • 48Mbps, 54Mbps - 24Mbps, 36Mbps - 12Mbps, 18Mbps - 9Mbps, 11Mbps - 5.5Mbps, 6Mbps - 1Mbps, 2Mbps
MSC wireless signal rate	130Mbps (270) - 117Mbps (243), 104Mbps (216) - 78Mbps (162), 66Mbps (135) - 58.5Mbps (121.5), 52Mbps (108) - 39Mbps (81), 26Mbps (54) - 19.5Mbps (40.5), 12Mbps (27) - 6.5Mbps (13.5)
frequency range	2.4GHz to 2.483GHz

Power and LEDs

transmitter output power	17dBm ± 2dB
LEDs	Power - Internet, WLAN - LAN (10/100)

Operating Environment

operating temperature	32°F to 104°F ( 0°C to 40°C)
humidity	95% maximum (non-condensing)
indoor use only	Yes

Weight and Dimensions

length	7.8 inches
width	5 inches
height	1.2 inches
