D-Link DIR-615 User Manual

DIR-615 Wireless N300 Router
User Manual
Configuring via Web-based Interface
Configuring Wireless Connection

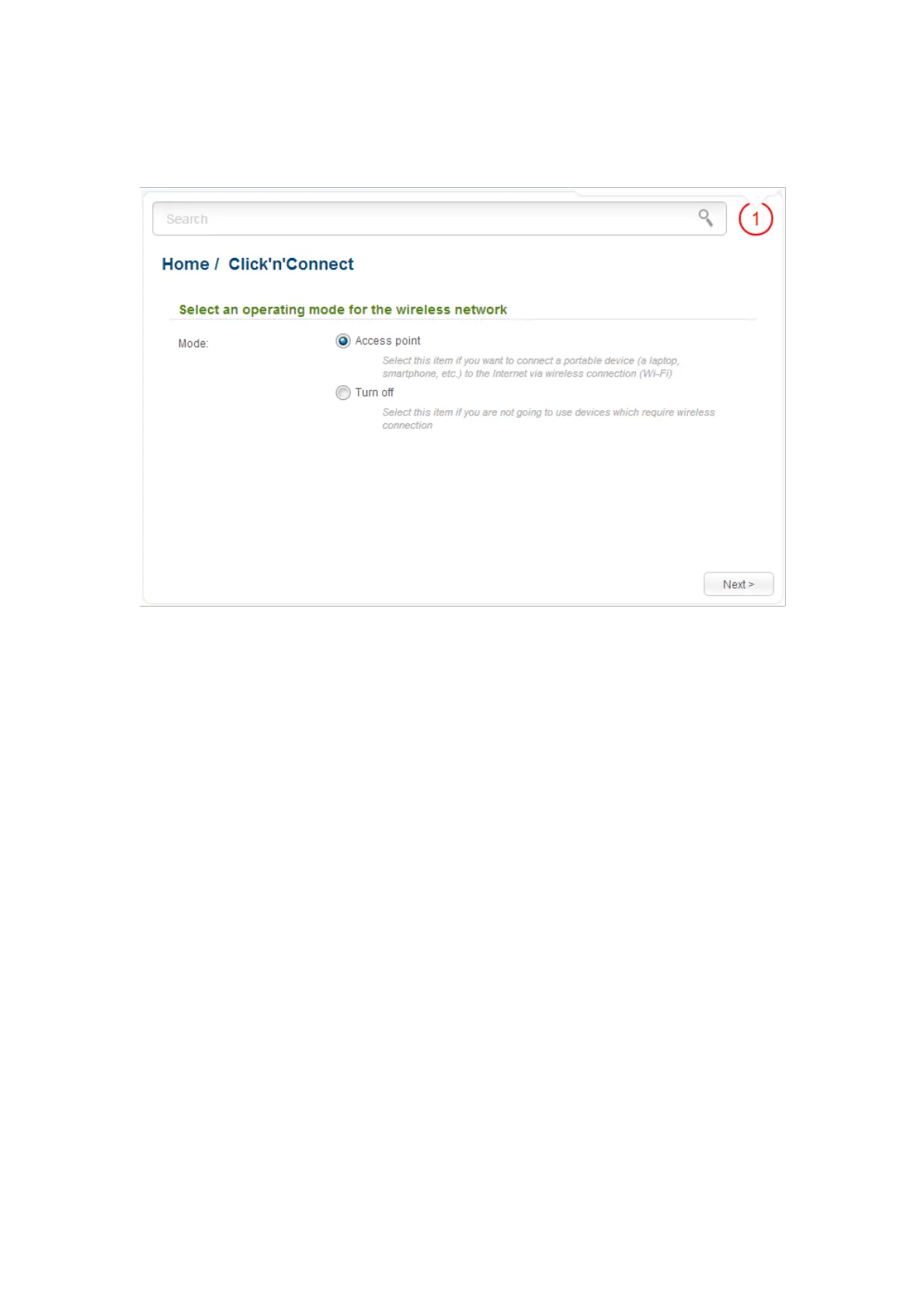

Figure 71. Selecting the operating mode for the wireless network.
If you are not going to use the wireless connection, select the Turn off choice of the Mode radio
button. Click the Next button and then click the Apply button on the opened page. After clicking
the button, the page for configuring the router to use an IPTV set-top box opens (see the
Configuring IPTV section, page 91).
If you want to connect portable devices to the Internet via wireless connection, select the Access
point choice of the Mode radio button. Click the Next button.
Page 88 of 208

D-Link DIR-615 Specifications

Wireless Signal Rates and Frequency

wireless signal rate	108Mbps • 48Mbps, 54Mbps - 24Mbps, 36Mbps - 12Mbps, 18Mbps - 9Mbps, 11Mbps - 5.5Mbps, 6Mbps - 1Mbps, 2Mbps
MSC wireless signal rate	130Mbps (270) - 117Mbps (243), 104Mbps (216) - 78Mbps (162), 66Mbps (135) - 58.5Mbps (121.5), 52Mbps (108) - 39Mbps (81), 26Mbps (54) - 19.5Mbps (40.5), 12Mbps (27) - 6.5Mbps (13.5)
frequency range	2.4GHz to 2.483GHz

Power and LEDs

transmitter output power	17dBm ± 2dB
LEDs	Power - Internet, WLAN - LAN (10/100)

Operating Environment

operating temperature	32°F to 104°F ( 0°C to 40°C)
humidity	95% maximum (non-condensing)
indoor use only	Yes

Weight and Dimensions

length	7.8 inches
width	5 inches
height	1.2 inches
