D-Link DWR-932 User Manual

14D-Link DWR-932 User Manual
Section 3 - Conguration

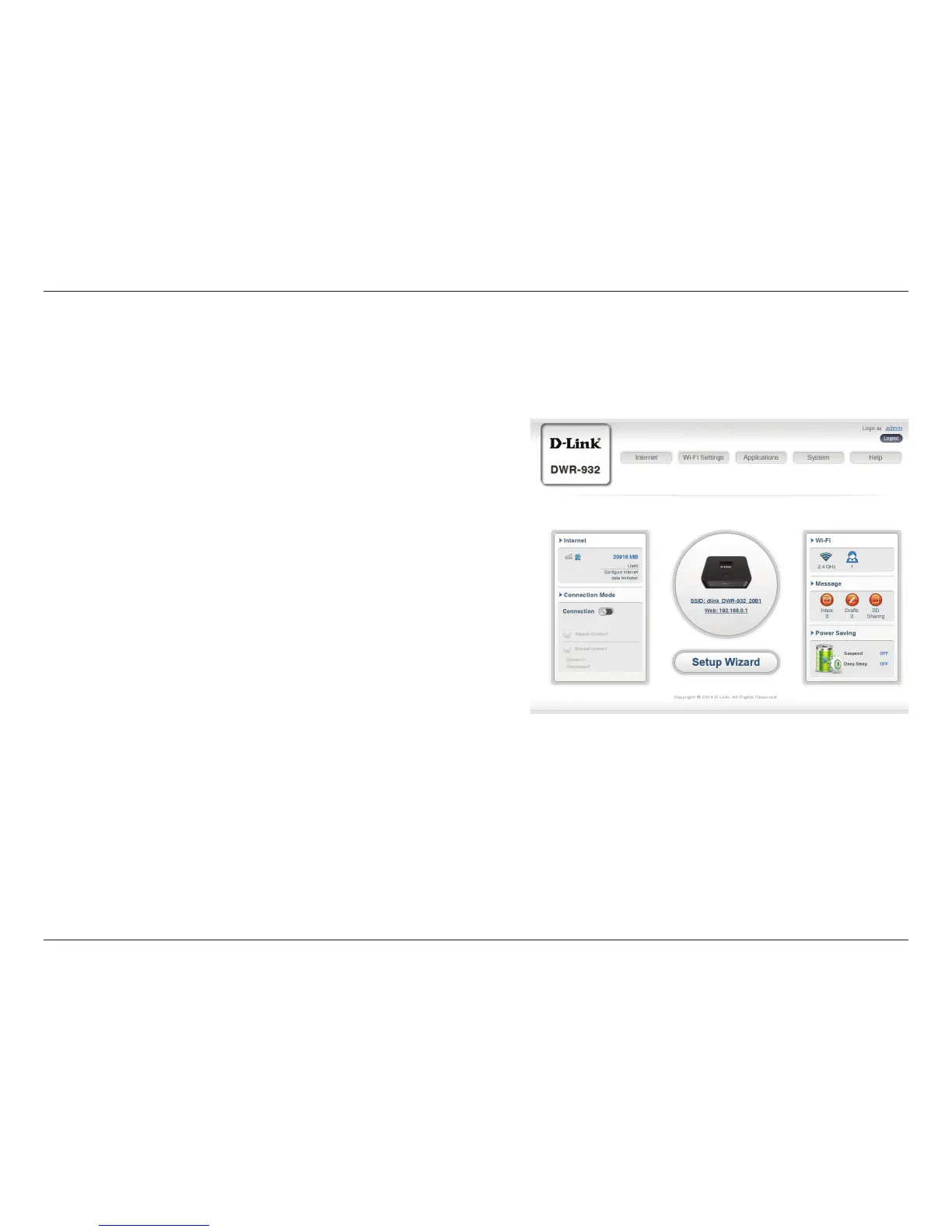

Quick Access
A quick access page will be displayed on the initial homepage for the DWR-932. The headings below link through to windows where you can alter
settings in more detail.
This area displays your Internet provider, the type of
Internet service you are using, the signal strength
and your current data usage.
This area displays the length of connection time and
allows you to change between Always Connect and
Manual Connect.
The Wi-Fi section displays the number of devices
currently connected to the router.
This area displays the number of SMS messages in
your inbox and draft massages. You can also access
your microSD card here through the SD Sharing
icon.
This area displays whether power saving features
have been selected, such as sleep mode.
Internet
Connection Mode
Wi-Fi
Messaging
Power Saving

D-Link DWR-932 Specifications

Radio Frequency Bands

FDD-LTE bands	Band 1, 3, 7, 8, 20
TDD-LTE band	38
UMTS bands	B1-2100 MHz / B8-900 MHz

Cellular Access

GSM bands	850/900/1800/1900 MHz
LTE output power class	23 dBm (class3)
Downlink speed	100 Mbps

Wi-Fi Specifications

Wi-Fi standard 1	802.11n
Wi-Fi standard 2	802.11g
Wi-Fi standard 3	802.11b

Physical Specifications

Dimensions	96.8 x 57.6 x 15 mm (3.81 x 2.26 x 0.59 inches)
Weight	90 g (3.17 ounces)
Antenna	One internal antenna

Operating Environment

Operating temperature	0 to 40 °C (14 to 131 °F)
USB interface	micro USB port
USIM slot	Standard 6-pin SIM card interface
