D-Link DWR-932 User Manual

51D-Link DWR-932 User Manual
Section 3 - Conguration
If you selected Add New IP Filter:

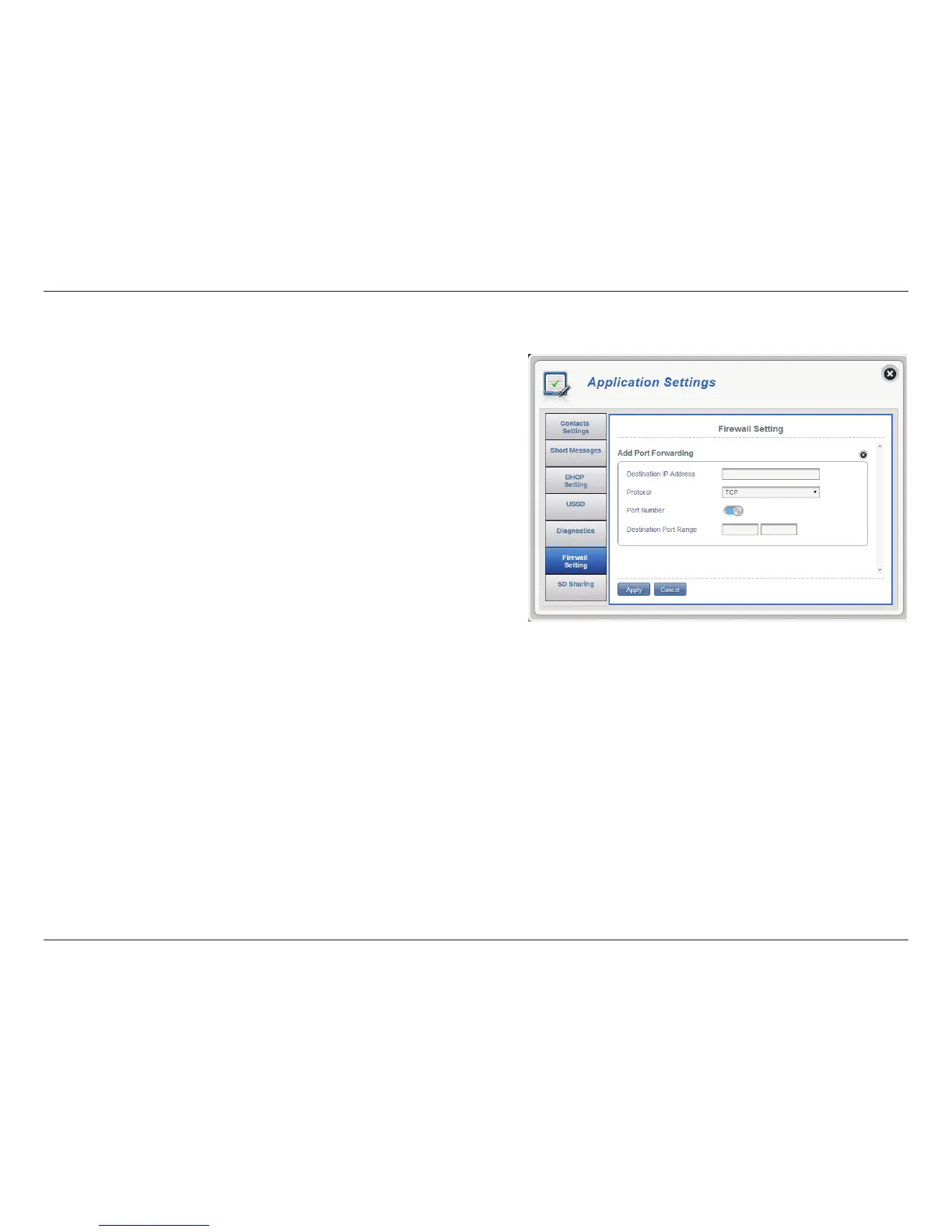

Add Port Forwarding
Destination IP Address
Protocol
Port Number
Destination Port Range
The IP address you want to allow port forwarding on.
Select the protocol for ports that you want to allow or
deny access to. Choose between TC P, UDP or Other .
Click the toggle to enter the ports you want port
forwarding on.
Enter a single port or a range of ports that you wish
to allow port forwarding on. Separate port numbers
with a comma.
Click Apply to proceed.

D-Link DWR-932 Specifications

Radio Frequency Bands

FDD-LTE bands	Band 1, 3, 7, 8, 20
TDD-LTE band	38
UMTS bands	B1-2100 MHz / B8-900 MHz

Cellular Access

GSM bands	850/900/1800/1900 MHz
LTE output power class	23 dBm (class3)
Downlink speed	100 Mbps

Wi-Fi Specifications

Wi-Fi standard 1	802.11n
Wi-Fi standard 2	802.11g
Wi-Fi standard 3	802.11b

Physical Specifications

Dimensions	96.8 x 57.6 x 15 mm (3.81 x 2.26 x 0.59 inches)
Weight	90 g (3.17 ounces)
Antenna	One internal antenna

Operating Environment

Operating temperature	0 to 40 °C (14 to 131 °F)
USB interface	micro USB port
USIM slot	Standard 6-pin SIM card interface
