D-Link DWR-932 User Manual

15D-Link DWR-932 User Manual
Section 3 - Conguration
Network Setup

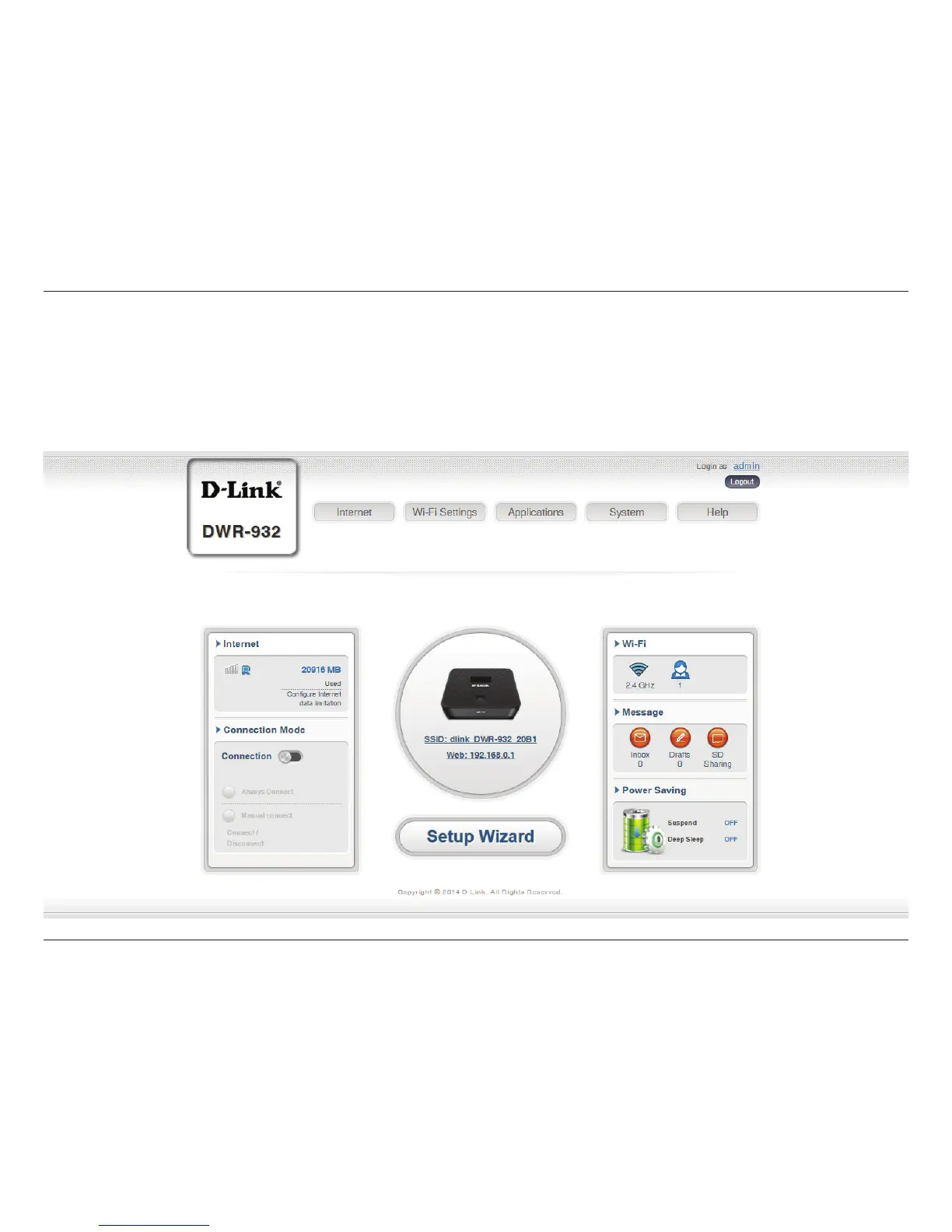

Setup Wizard
The Wizard page will guide you through the steps required to congure the basic settings of your router such as the IP address, network name
(SSID), and password. Click on the Setup Wizard button to begin the quick setup wizard.

D-Link DWR-932 Specifications

Radio Frequency Bands

FDD-LTE bands	Band 1, 3, 7, 8, 20
TDD-LTE band	38
UMTS bands	B1-2100 MHz / B8-900 MHz

Cellular Access

GSM bands	850/900/1800/1900 MHz
LTE output power class	23 dBm (class3)
Downlink speed	100 Mbps

Wi-Fi Specifications

Wi-Fi standard 1	802.11n
Wi-Fi standard 2	802.11g
Wi-Fi standard 3	802.11b

Physical Specifications

Dimensions	96.8 x 57.6 x 15 mm (3.81 x 2.26 x 0.59 inches)
Weight	90 g (3.17 ounces)
Antenna	One internal antenna

Operating Environment

Operating temperature	0 to 40 °C (14 to 131 °F)
USB interface	micro USB port
USIM slot	Standard 6-pin SIM card interface
