Daikin Altherma 3 GEO Installation Manual

5 Electrical installation
Installation manual
19
EGSAH/X06+10UDA9W
Daikin Altherma 3 GEO
4P598591-1A – 2019.12

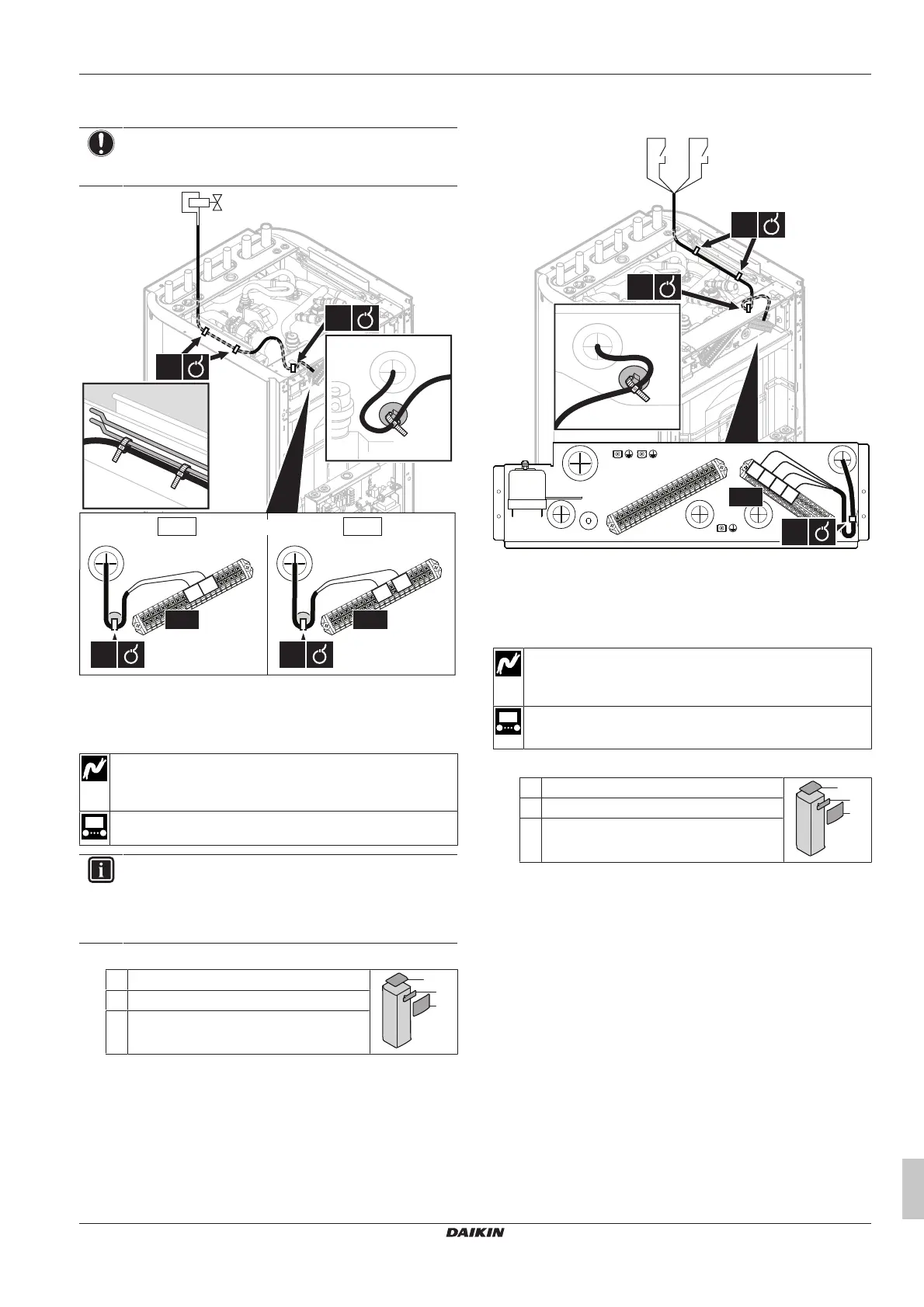

2 Connect the valve control cable to the appropriate terminals as
shown in the illustration below.
NOTICE
Wiring is different for a NC (normally closed) valve and a
NO (normally open) valve.
M2S
1×
2×
NO NC
OR
X2M
1×
21
28
X2M
1×
21
29
3 Fix the cable with cable ties to the cable tie mountings.
5.6 To connect the electricity meters
Wires: 2 (per meter)×0.75mm²
Electricity meters: 12VDC pulse detection (voltage supplied
by PCB)
[9.A] Energy metering
INFORMATION
In case of an electricity meter with transistor output, check
the polarity. The positive polarity MUST be connected to
X5M/6 and X5M/4; the negative polarity to X5M/5 and
X5M/3.
1 Open the following (see "3.2.1To open the indoor unit"[47]):
1 Top panel
1
3
2
2 User interface panel
3 Installer switch box cover
2 Connect the electricity meters cable to the appropriate terminals
as shown in the illustration below.
S3S S2S
3
4
5
6
2×
1×
X5M
1×
5
6
3
4
3 Fix the cable with cable ties to the cable tie mountings.
5.7 To connect the domestic hot water
pump
Wires: (2+GND)×0.75mm²
DHW pump output. Maximum load: 2A (inrush), 230VAC,
1A (continuous)
[9.2.2] DHW pump
[9.2.3] DHW pump schedule
1 Open the following (see "3.2.1To open the indoor unit"[47]):
1 Top panel
1
3
2
2 User interface panel
3 Installer switch box cover
