Daikin Altherma 3 GEO Installation Manual

5 Electrical installation
Installation manual
22
EGSAH/X06+10UDA9W
Daikin Altherma 3 GEO
4P598591-1A – 2019.12

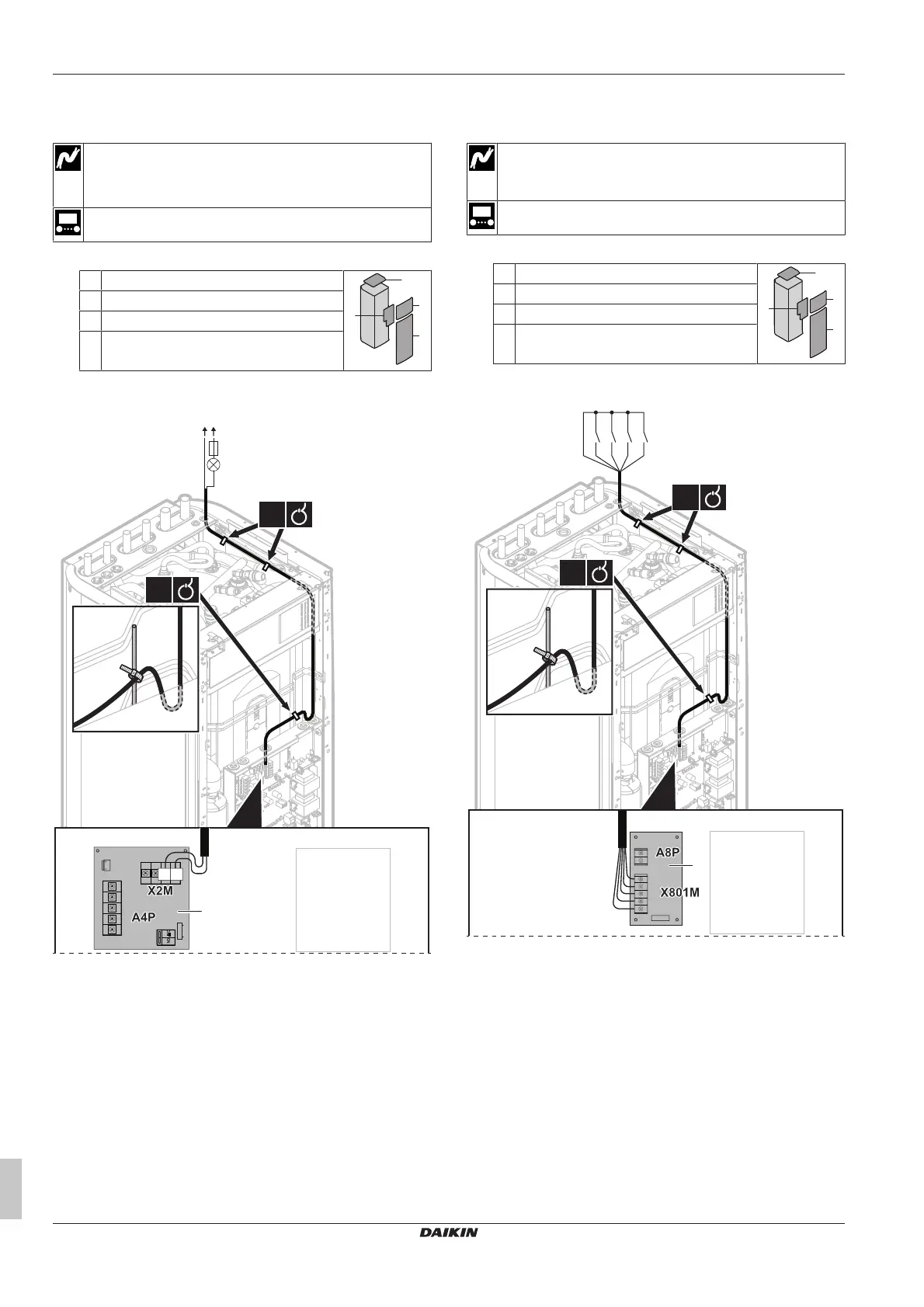

5.10 To connect the changeover to
external heat source
Wires: 2×0.75mm²
Maximum load: 0.3A, 250VAC
Minimum load: 20mA, 5VDC
[9.C] Bivalent
1 Open the following (see "3.2.1To open the indoor unit"[47]):
1 Top panel
3
1
2
4
2 User interface panel
3 Front panel
4 Main switch box cover
2 Connect the changeover to external heat source cable to the
appropriate terminals as shown in the illustration below.
1×
2×
X2X1
LN
X2 X1
a
a Installation of EKRP1HBAA is required.
3 Fix the cable with cable ties to the cable tie mountings.
5.11 To connect the power
consumption digital inputs
Wires: 2 (per input signal)×0.75mm²
Power limitation digital inputs: 12VDC / 12mA detection
(voltage supplied by PCB)
[9.9] Power consumption control.
1 Open the following (see "3.2.1To open the indoor unit"[47]):
1 Top panel
3
1
2
4
2 User interface panel
3 Front panel
4 Main switch box cover
2 Connect the power consumption digital inputs cable to the
appropriate terminals as shown in the illustration below.
12345
S6S S7S S8S S9S
1×
2×
1 2 3 4 5
a
a Installation of EKRP1AHTA is required.
3 Fix the cable with cable ties to the cable tie mountings.
