10 Technical data
A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is
available on the Daikin Business Portal (authentication required).

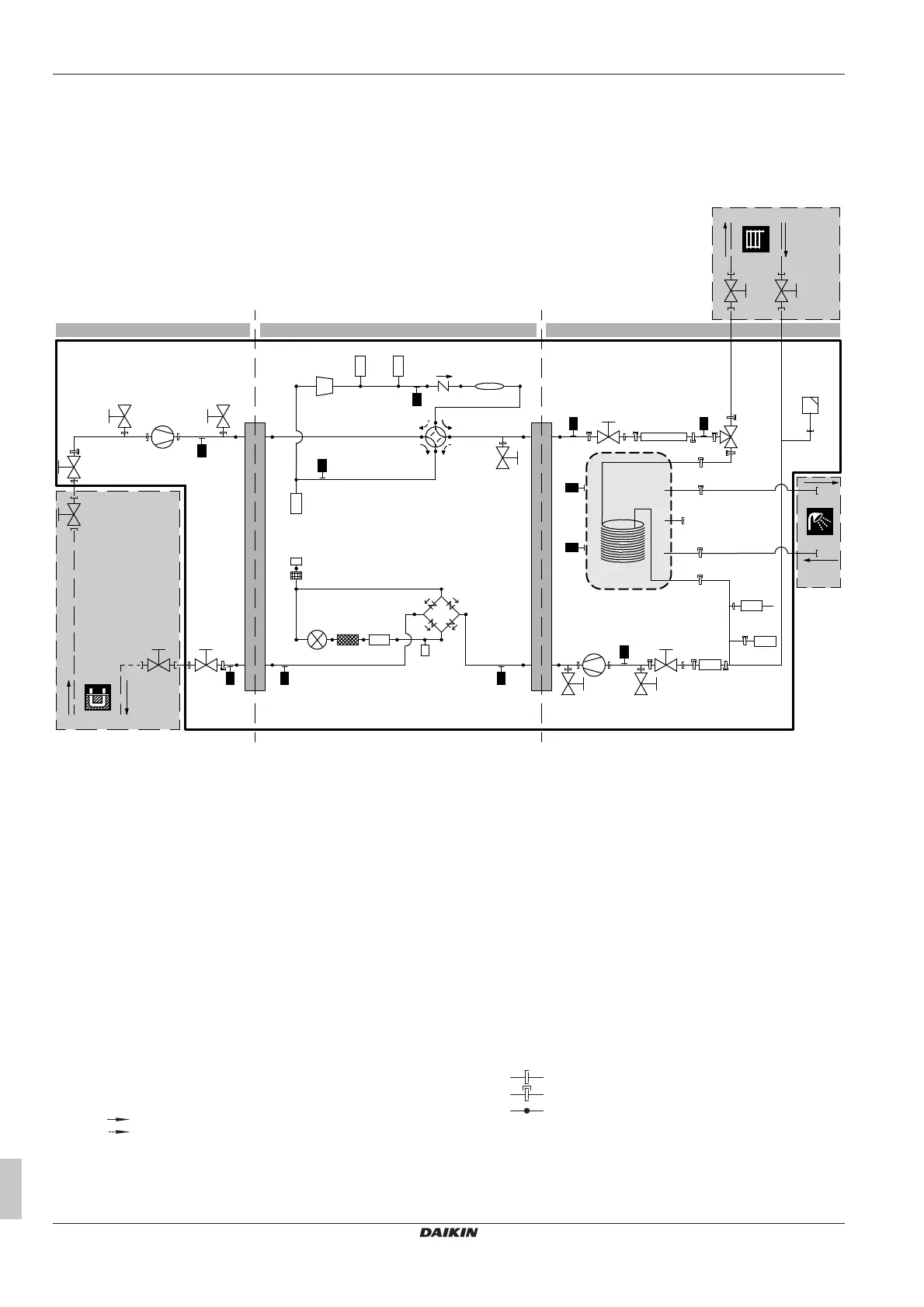

10.1 Piping diagram: Indoor unit
3D121963
Y1E
R2T
(A7P)
R5T
(A7P)
R1T
(A1P)
R4T
(A1P)
R5T
(A1P)
R8T
(A1P)
R2T
(A1P)
R3T
(A7P)
R4T
(A7P)
R6T
(A7P)
R3T
(A1P)
A
BD
C
M1C
M1P
M4P
B1L
Y1S
S1NPL
B1PR S1PH
B1PW
M3S
a2 a1
b1
c1 c2
b2
A
d d
D
B C
e
D
D
d
d
g
f
g
g
E
g
hi
i h
j
k
l
m
n
o
pq
q
o
r
s s
A Brine side
B Refrigerant side
C Water side
D Field installed
E DHW tank
a1 Space heating water IN (Ø22mm)
a2 Space heating water OUT (Ø22mm)
b1 Domestic hot water: cold water IN (Ø22mm)
b2 Domestic hot water: hot water OUT (Ø22mm)
c1 Brine IN (Ø28mm)
c2 Brine OUT (Ø28mm)
d Shut-off valve
e Automatic air purge valve
f Safety valve
g Shut-off valve
h Manual air purge valve
i Drain valve
j Backup heater
k Recirculation connection (3/4" G female)
l Check valve
m Muffler
n Refrigerant pressure relief valve
o Service port (5/16" flare)
p Heat sink
q Filter
r Rectifier
s Plate heat exchanger
Refrigerant flow:
Heating
Cooling
B1L Flow sensor
B1PR Refrigerant high pressure sensor
B1PW Space heating water pressure sensor
M1C Compressor
M1P Water pump
M3S 3-way valve (space heating/domestic hot water)
M4P Brine pump
S1NPL Low pressure sensor
S1PH High pressure switch
Y1E Electronic expansion valve
Y1S Solenoid valve (4-way valve)
Thermistors:
R2T (A7P) Compressor discharge
R3T (A7P) Compressor suction
R4T (A7P) 2 phase
R5T (A7P) Brine IN
R6T (A7P) Brine OUT
R1T (A1P) Heat exchanger – water OUT
R2T (A1P) Backup heater – water OUT
R3T (A1P) Liquid refrigerant
R4T (A1P) Heat exchanger – water IN
R5T (A1P) Tank
R8T (A1P) Tank
Connections:
Screw connection
Quick coupling
Brazed connection
