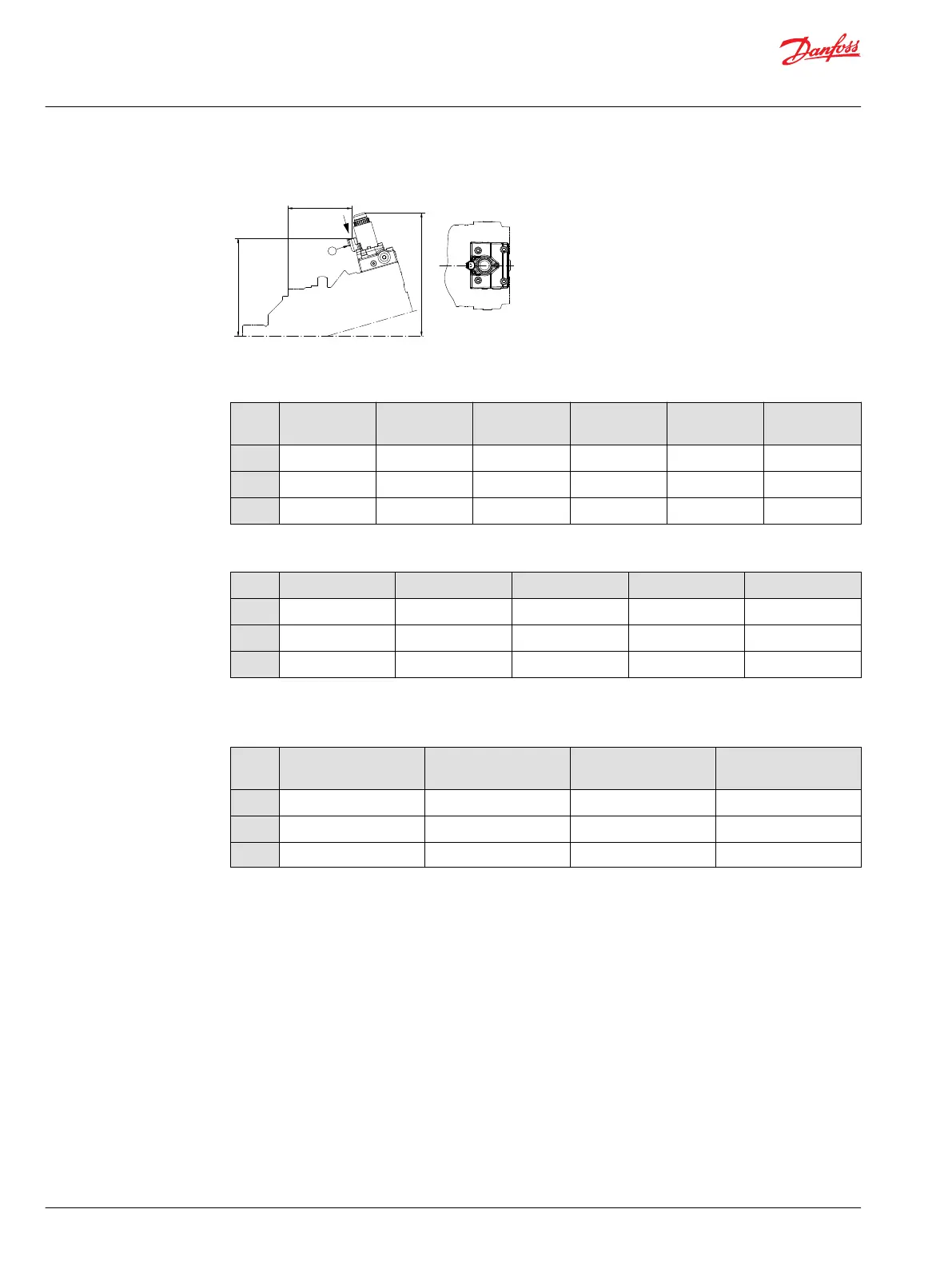

Options M1CA and M2CA (Electric proportional control)
P003 458
Y
AB
Y
EB
EA
1
1. Connector: DEUTSCH DT04-2P
SAE mounting flange per ISO 3019/1 dimensions (mm [in])
Size 060
SAE 127-4
Size 080
SAE 127-4
Size 110
SAE 152-4
Size 160
SAE 152-4
Size 210
SAE 165-4
Size 250
SAE 165-4
AB
224.2 [8.83] 235.7 [9.28] 247.2 [9.73] 265.0 [10.43]
279.4 [11]
290.0 [11.42]
EA
126.1 [4.96] 138.8 [5.46] 160.7 [6.33] 180.4 [7.10]
199.9 [7.87]
213.0 [8.39]
EB
172.2 [6.78] 183.6 [7.23] 195.1 [7.68] 212.8 [8.38]
227.5 [8.96]
238.0 [9.37]
DIN B4 HL mounting flange per ISO 3019/2 dimensions, (mm [in])
Size 060 – DIN 125 Size 080 – DIN 140 Size 110 – DIN 160 Size 160 – DIN 180 Size 210 – DIN 200
AB
224.2 [8.83] 235.7 [9.28] 247.2 [9.73] 265.0 [10.43]
279.4 [11]
EA
101.6 [4.0] 114.8 [4.52] 128.2 [5.05] 148.5 [5.85]
167.9 [6.61]
EB
172.2 [6.78] 183.6 [7.23] 195.1 [7.68] 212.8 [8.38]
227.5 [8.96]
Size 250 is not available.
Cartridge mounting flange dimensions (mm [in])
Size 060
Cartridge 160
Size 080
Cartridge 190
Size 110
Cartridge 200
Size 160
Cartridge 200
AB
224.2 [8.83] 235.7 [9.28] 247.2 [9.73] 265.0 [10.43]
EA
41.9 [1.65] 36.4 [1.43] 46.2 [1.82] 66.1 [2.60]
EB
172.2 [6.78] 183.6 [7.23] 195.1 [7.68] 212.8 [8.38]
Size 210 and 250 are not available.
Technical Information
H1 Bent Axis Variable Displacement Motors, Size 060/080/110/160/210/250
Dimensions – Controls on H1B motors
124 |
©
Danfoss | December 2016 11037153 | BC00000043en-US1103
