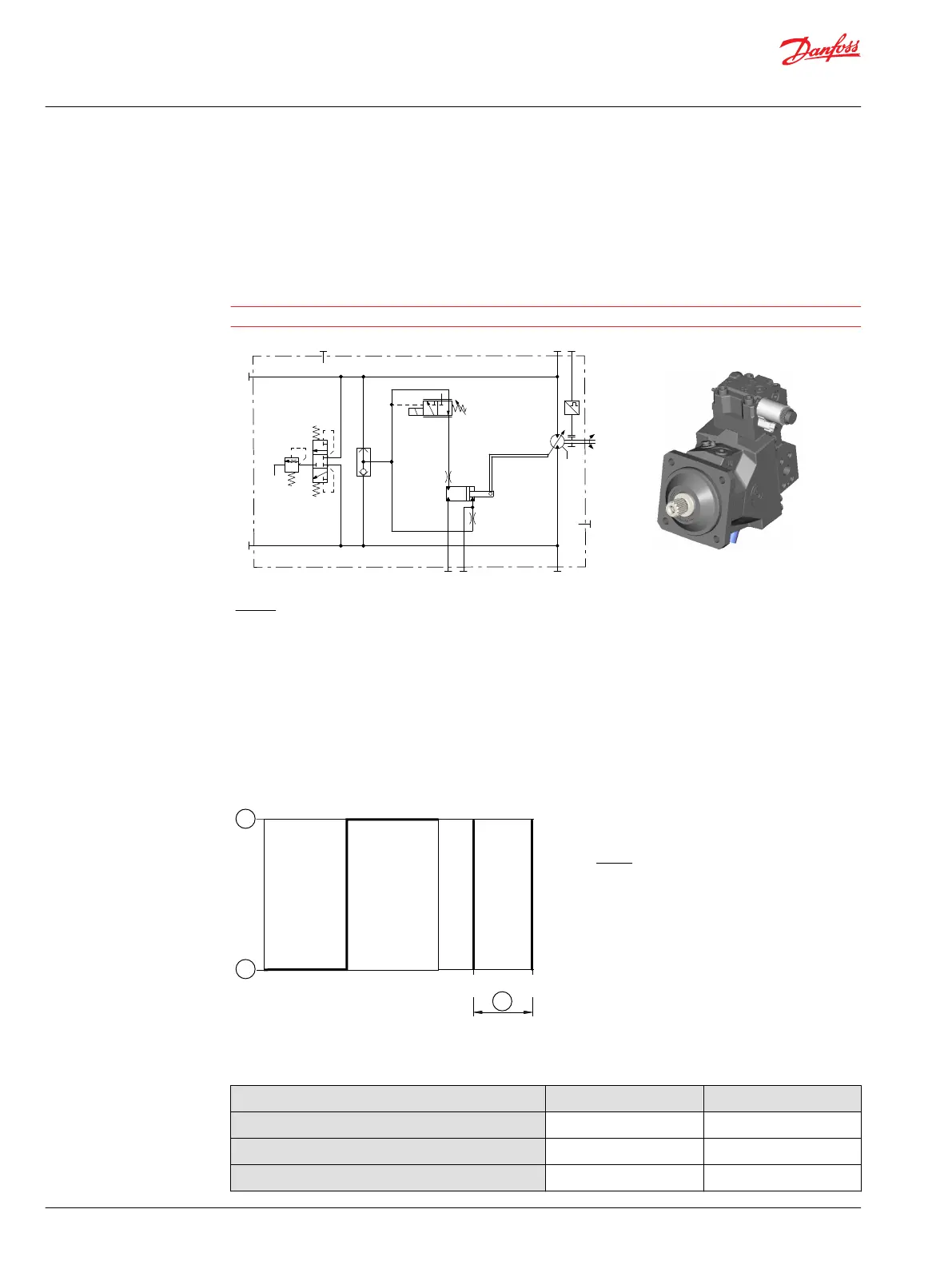

Options T1DA, T2DA – electric two-position control with PCOR
T1 – electric two-position 12 V / de-energized = min. displacement
T2 – electric two-position 24 V / de-energized = min. displacement
DA – with PCOR / without Brake Pressure Defeat
W
Warning
This control is not for use in propel applications.
A
B
max
min
M4
M5
L1
L2
N
P003455
n
MA
MB
C6
Where:
A, B Main pressure lines
L1, L2 Drain lines
M4, M5 Gauge port servo pressure
MA, MB Gauge port system pressure
N Speed sensor (optional)
Options T1DA, T2DA
Solenoid C6
De-energized = min. displacement
Full-energized = max. displacement
Displacement versus control signal versus PCOR pressure
P003 409
12 V/24 V
6°
32° PCOR
160 bar
[2321 psi]
300 bar
[4351 psi]
2
1
3
Where:
1 Max. displacement
2 Min. displacement
3 Start setting range
Two-position solenoid data C6
Description 12 V 24 V
Min. supply voltage
9.5 V
DC
19 V
DC
Max. supply voltage (continuous)
14.6 V
DC
29 V
DC
Nominal coil resistance @ 20 °C [68 °F]
8.4 Ω 34.5 Ω
Technical Information
H1 Bent Axis Variable Displacement Motors, Size 060/080/110/160/210/250
Controls – nomenclature, description
56 |
©
Danfoss | December 2016 11037153 | BC00000043en-US1103
