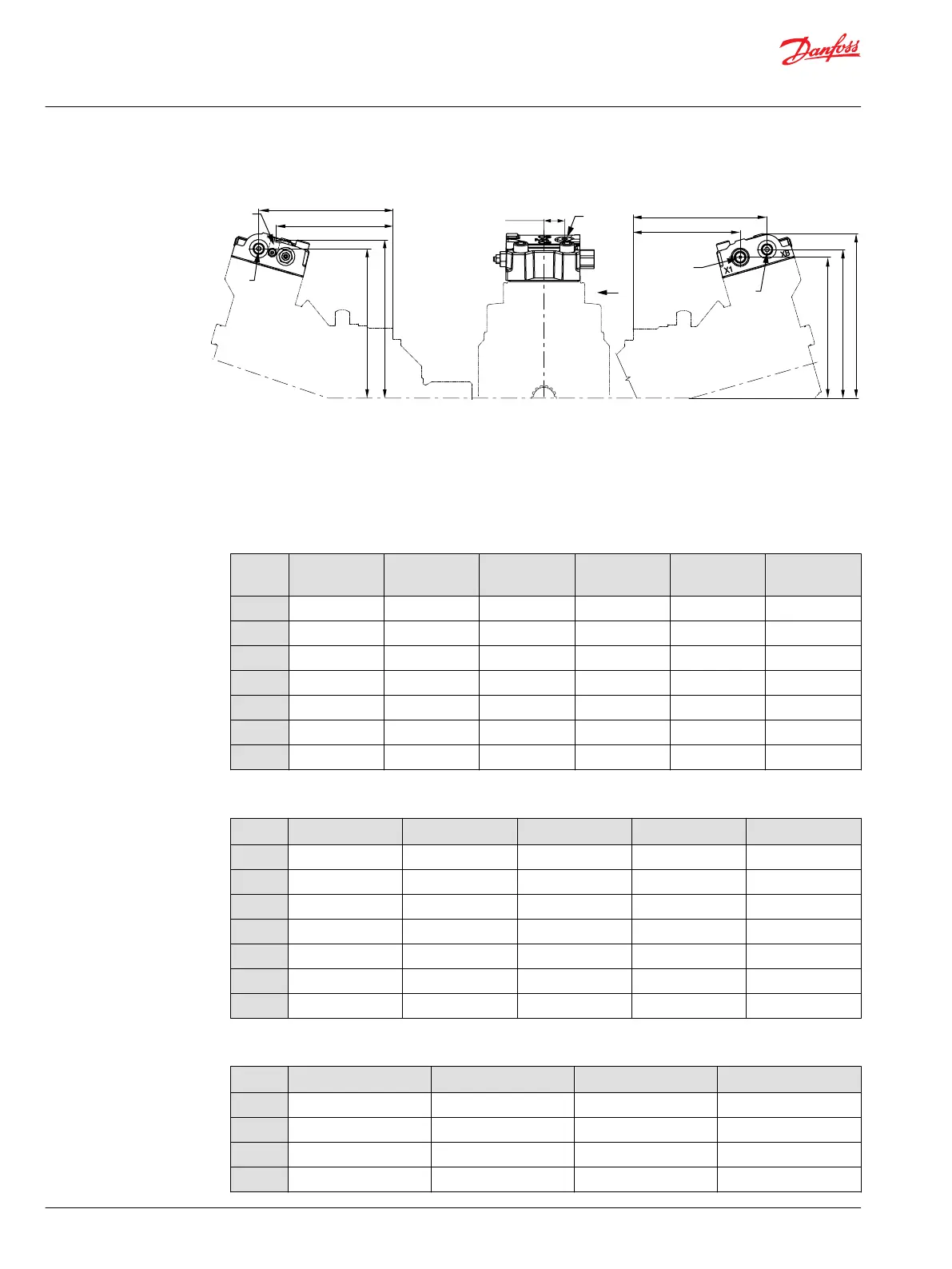

Option THHB (Hydraulic two-position control)
26.0 ±0.5
EG
EA
EE
EH
AM
EF
ED
P005 953
EC
EB
X
X
M4
X1
M4
XB
XA
X1 Pilot pressure gauge port ISO 11926-1; 9/16 -18
XA, XB Pilot pressure BPD port ISO 11926-1 9/16-8
M4 Servo pressure supply gauge port ISO 11926-1; 9/16 -18
SAE mounting flange per ISO 3019/1 dimensions (mm [in])
Size 060
SAE 127-4
Size 080
SAE 127-4
Size 110
SAE 152-4
Size 160
SAE 152-4
Size 210
SAE 165-4
Size 250
SAE 165-4
AM
193.6 [7.62] 206.6 [8.13] 224.1 [8.82 242.5 [9.55] 257.7 [10.15] 267.3 [10.52]
EA, EC
182 [7.17] 192 [7.56] 214.3 [8.44] 233.6 [9.20] 253.6 [9.98] 267.1 [10.52]
EB, ED
171.9 [6.77] 184.9 [7.28] 202.4 [7.97] 210.4 [8.28] 236 [9.29] 245.7 [9.67]
EE
145.5 [5.73] 155.5 [6.12] 177.8 [7.00] 197.1 [7.76] 216.9 [8.54] 230.6 [9.08]
EF
161.4 [6.35 174.4 [6.87] 191.9 [7.56] 210.4 [8.28] 225.6 [8.88] 235.2 [9.26]
EG
158.8 [6.25] 168.8 [6.65] 191.1 [7.52] 210.4 [8.28] 230.2 [9.06] 243.9 [9.60]
EH
184.0 [7.24] 196.9 [7.75] 214.4 [8.44] 232.9 [9.17] 248.1 [9.77] 257.8 [10.15]
DIN B4 HL mounting flange per ISO 3019/2 dimensions, (mm [in])
Size 060 DIN 125 Size 080 DIN 140 Size 110 DIN 160 Size 160 DIN 180 Size 210 DIN 200
AM
193.6 [7.62] 206.6 [8.13] 224.1 [8.82 242.5 [9.55] 257.7 [10.15]
EA, EC
157.5 [6.20] 168 [6.61] 181.8 [7.16] 201.7 [7.94] 221.5 [8.72]
EB, ED
171.9 [6.77] 184.9 [7.28] 202.4 [7.97] 210.4 [8.28] 236 [9.29]
EE
121.0 [4.76] 131.5 [5.18] 145.3 [5.72] 165.2 [6.50] 184.9 [7.28]
EF
161.4 [6.35 174.4 [6.87] 191.9 [7.56] 210.4 [8.28] 225.6 [8.88]
EG
134.3 [5.29] 144.8 [5.70] 158.6 [6.24] 178.5 [7.03] 198.2 [7.8]
EH
184.0 [7.24] 196.9 [7.75] 214.4 [8.44] 232.9 [9.17] 248.1 [9.77]
Cartridge mounting flange dimensions (mm [in])
Size 060 Cartridge 160 Size 080 Cartridge 190 Size 110 Cartridge 200 Size 160 Cartridge 200
AM
193.6 [7.62] 206.6 [8.13] 224.1 [8.82 242.5 [9.55]
EA, EC
97.8 [3.85] 89.6 [3.53] 99.8 [3.93] 119.3 [4.70]
EB, ED
171.9 [6.77] 184.9 [7.28] 202.4 [7.97] 210.4 [8.28]
EE
61.3 [2.41] 53.1 [2.09] 63.3 [2.49] 82.8 [3.26]
Technical Information
H1 Bent Axis Variable Displacement Motors, Size 060/080/110/160/210/250
Dimensions – Controls on H1B motors
140 |
©
Danfoss | December 2016 11037153 | BC00000043en-US1103
