Symbologies Enter/Exit Programming Mode

Product Reference Guide

139

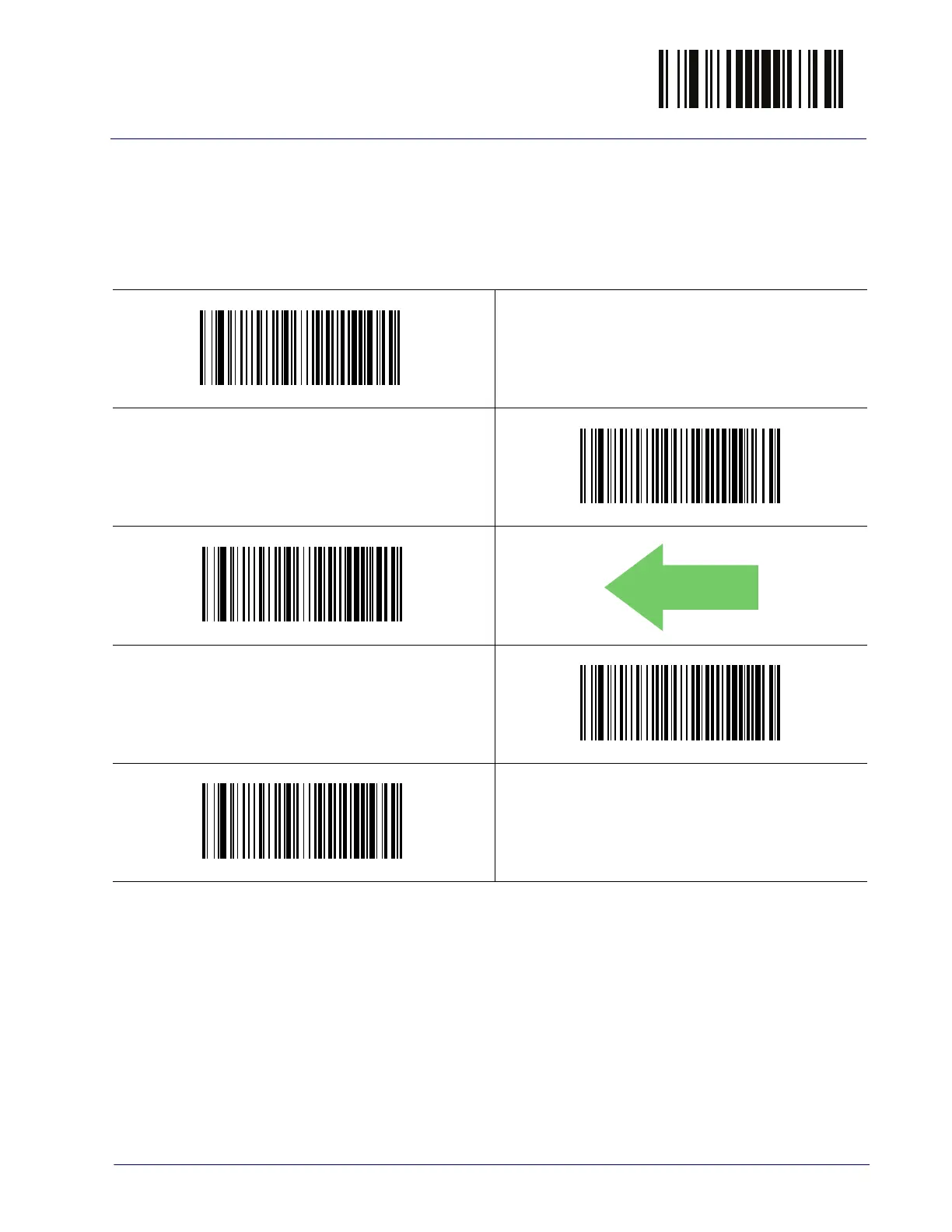

Code 39 Decoding Level

Decoding Levels are used to configure a bar code symbology decoder to be very

aggressive to very conservative depending on a particular customer’s needs.

See "Decoding Levels" on page 303 for more detailed programming instruc-

tions.

$CC3DL01

Code 39 Decoding Level = 1

$CC3DL02

Code 39 Decoding Level = 2

$CC3DL03

Code 39 Decoding Level = 3

$CC3DL04

Code 39 Decoding Level = 4

$CC3DL05

Code 39 Decoding Level = 5

DEFAULT

Default Chapter3
