To Next Page

To Previous Page

Enter/Exit Programming Mode Code 5

236 QuickScan™ I QM21X1 / QBT21X1

Code 4 Hex to Decimal Conversion

This feature enables/disables the conversion of hexadecimal label data to dec-

imal label data.

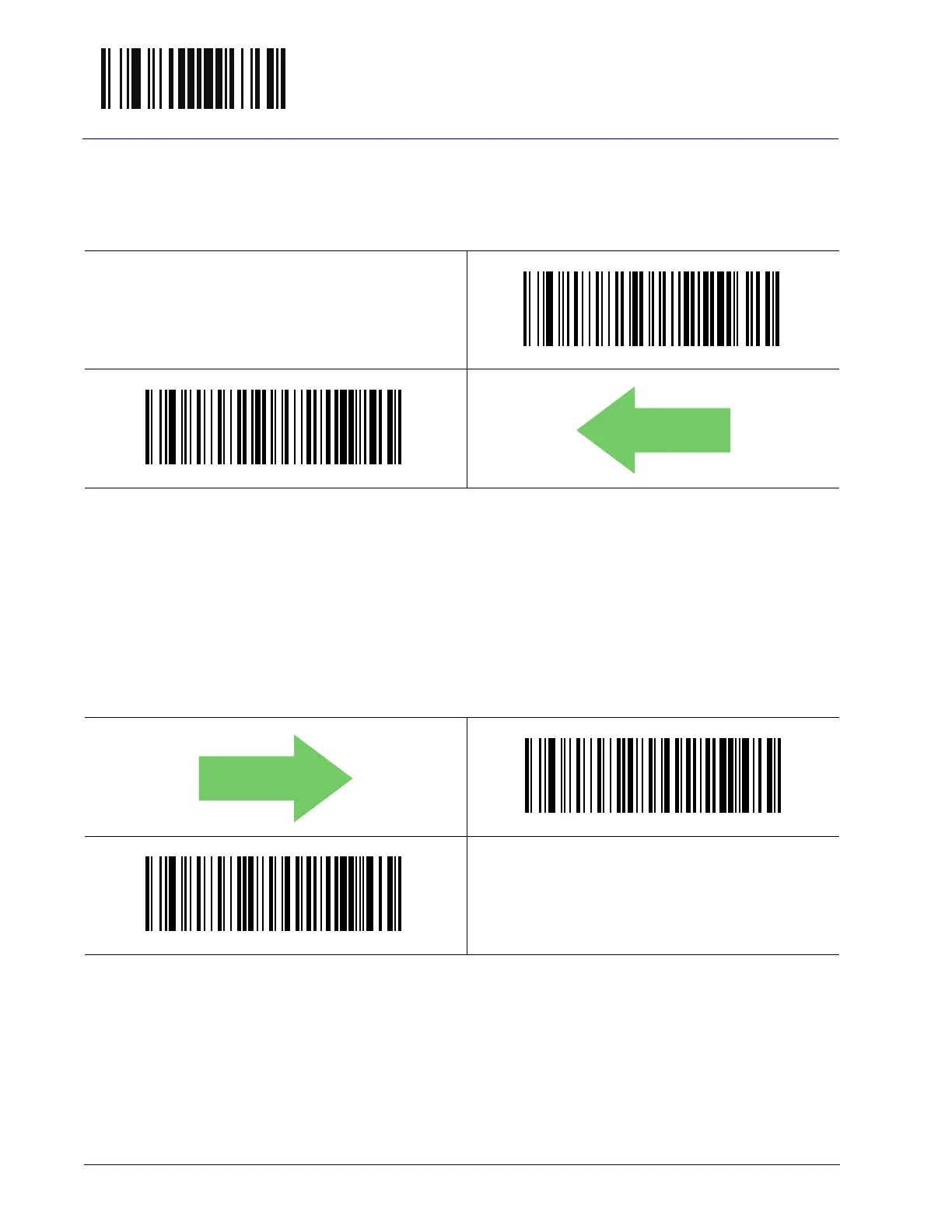

Code 5

The following options apply to the Code 5 symbology.

Code 5 Enable/Disable

Enables/Disables ability of reader to decode Code 5 labels.

$CCRHD00

Code 4 Hex to Decimal Conversion = Disable

$CCRHD01

Code 4 Hex to Decimal Conversion = Enable

DEFAULT

$CC5EN00

Code 5 = Disable

$CC5EN01

Code 5 = Enable

DEFAULT

Default Chapter3
