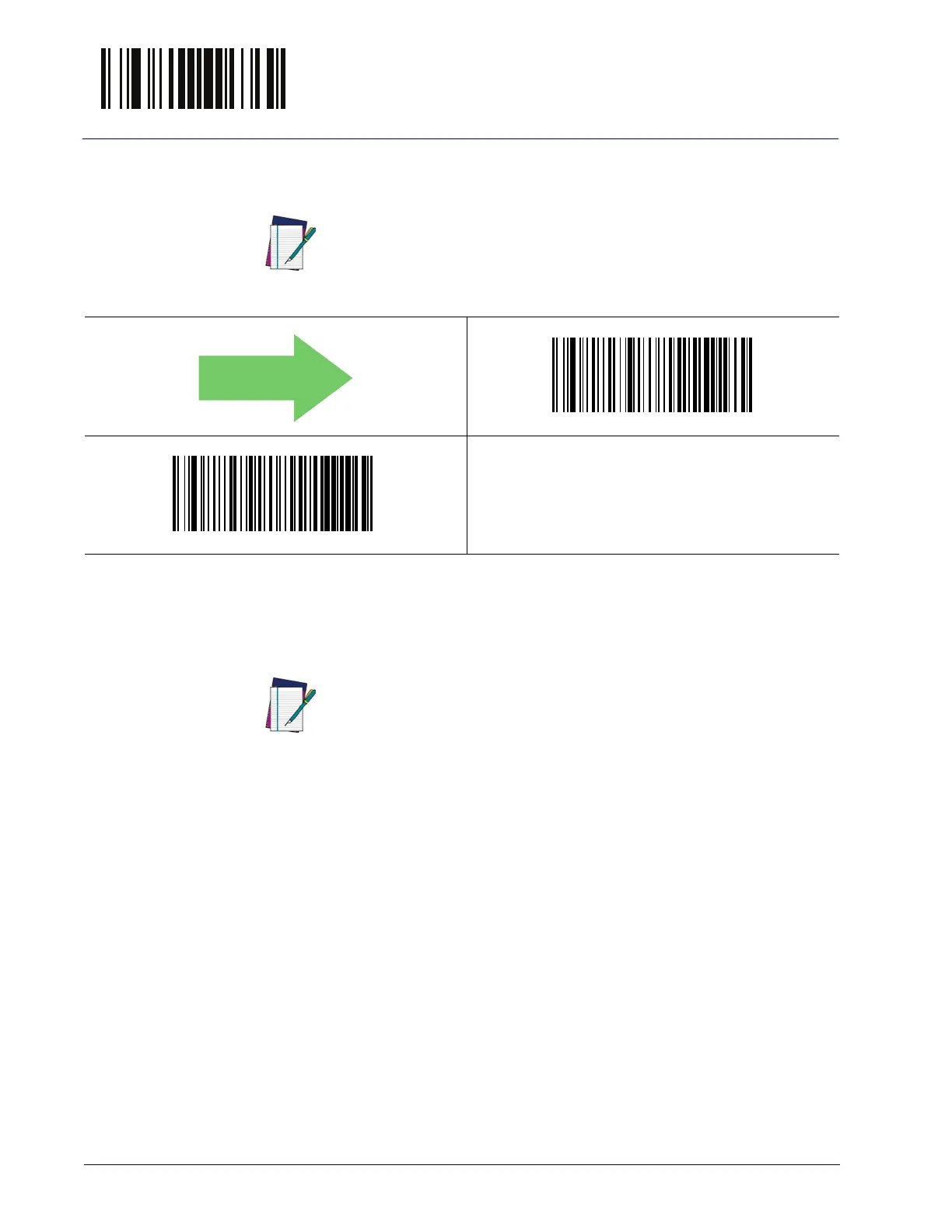

Enter/Exit Programming Mode ISBT 128

216 QuickScan™ I QM21X1 / QBT21X1

ISBT 128 Force Concatenation

When enabled, this feature forces all ISBT 128 labels to be concatenated.

ISBT 128 Advanced Concatenation Options

NOTE

This option is only valid when

ISBT 128 Concatenation on

page 214

is enabled. (see page 11-214).

$CI8FC00

ISBT 128 Force Concatenation = Disable

$CI8FC01

ISBT 128 Force Concatenation = Enable

DEFAULT

NOTE

Use the Datalogic Aladdin™ configuration application or contact

Customer Support to set up pairs of label types for concatena-

tion.
