3.2.2 Event settings
Events A, B and C are used to trigger the logic. For each event, the function NOT can be
selected to get an inverted function.

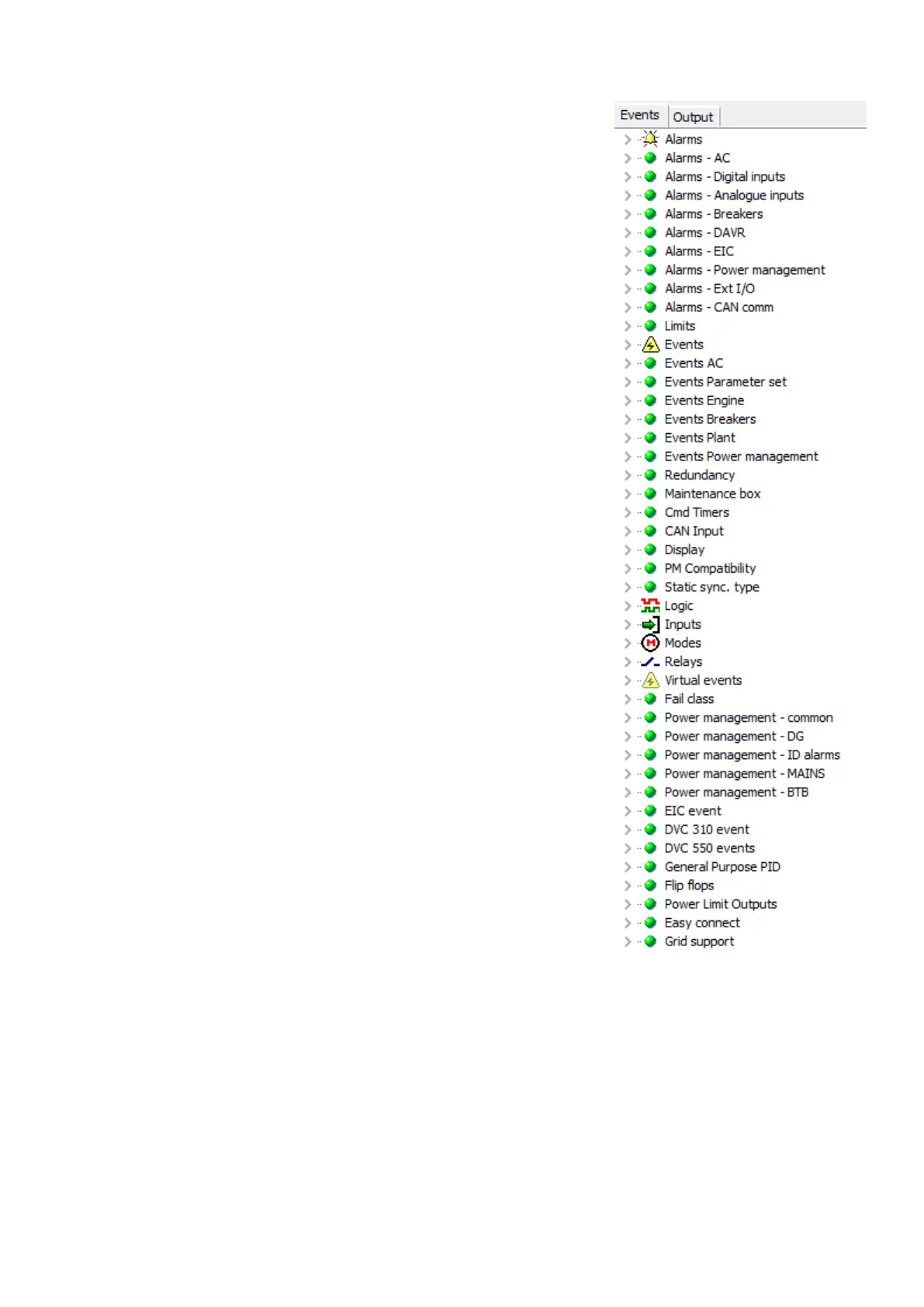

The event groups in the Events window depend on the controller type and its options.
Each event group contains a number of events. See the List of events chapter for
details.
3.2.3 Operators
Two operators are available:
• OR (any operator activates the function output)
• AND (all activated operators must have status ON to activate the function output)
3.2.4 Enable this rule
Select this tick box to activate the logic line.
Application note 4189341276B EN Page 10 of 50
