46 Installing and Configuring Hardware
Installing the Transportable Battery Backup
Unit (TBBU) on PERC 6/E
CAUTION: The following procedure must be performed at an
Electrostatic Discharge (ESD)-safe workstation to meet the requirements of
EIA-625 – "Requirements For Handling Electrostatic Discharge Sensitive Devices."
The following procedure must be performed following the IPC-A-610 latest
revision ESD recommended practices.
CAUTION: When transporting a sensitive component, first place it in an antistatic
container or packaging.
CAUTION: Handle all sensitive components in a static-safe area. If possible, use
antistatic floor pads and work bench pads.
1
Unpack the TBBU and follow all antistatic procedures.
2
Remove the DIMM from the controller. Insert one end of the battery pack
harness (the red, white, yellow, and green wires) in the connector on the
memory module and the other end in the connector on the battery.
3
Place the top edge of the battery over the top edge of the memory module
so that the arms on the side of the battery fit in their sockets on the
memory module. For more information, see Figure 4-5.

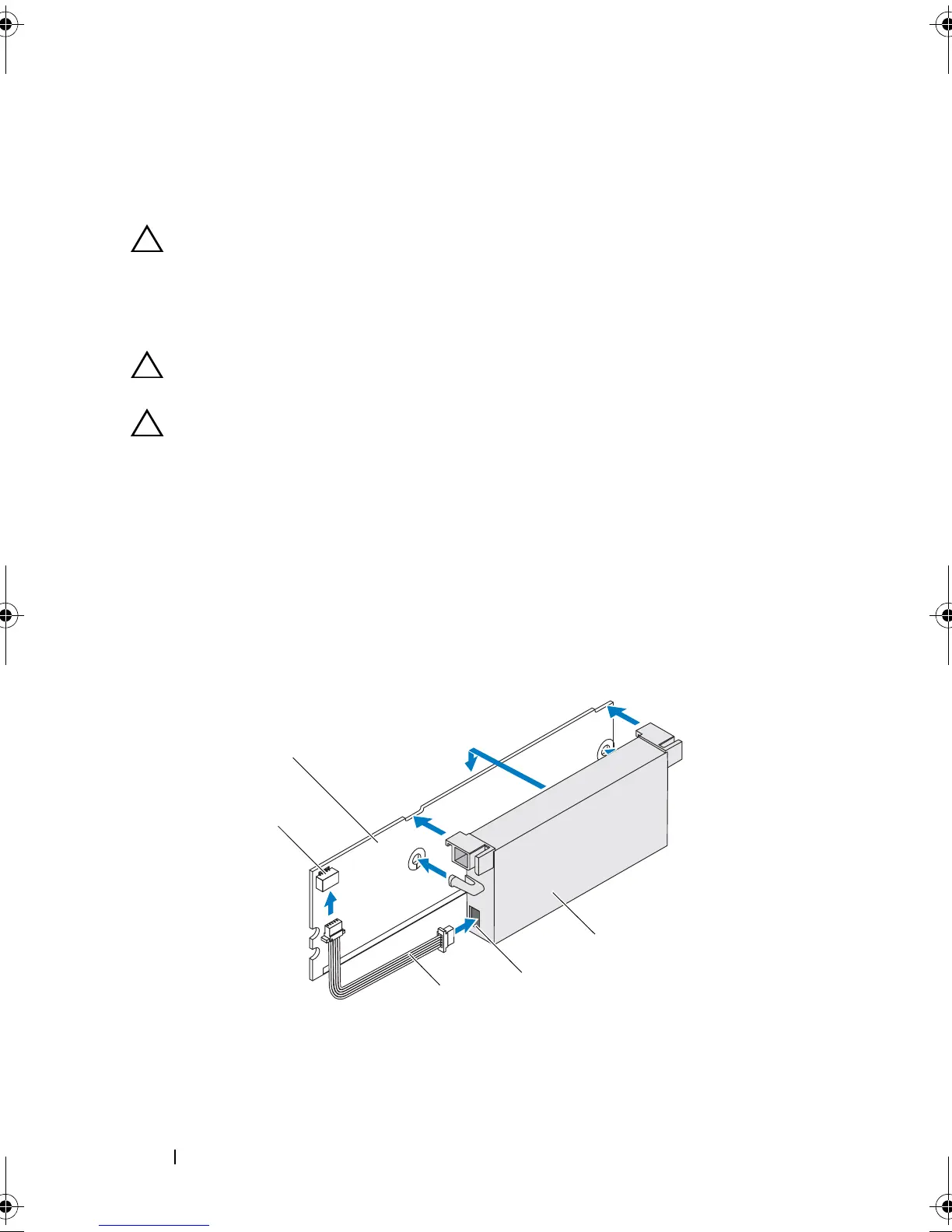

Figure 4-5. Installing a TBBU
1 battery 4 connector on the memory module
2 connector on the battery 5 memory module
3 battery pack harness
Dell_PERC6.2_UG.book Page 46 Wednesday, June 24, 2009 6:08 PM
