2. R

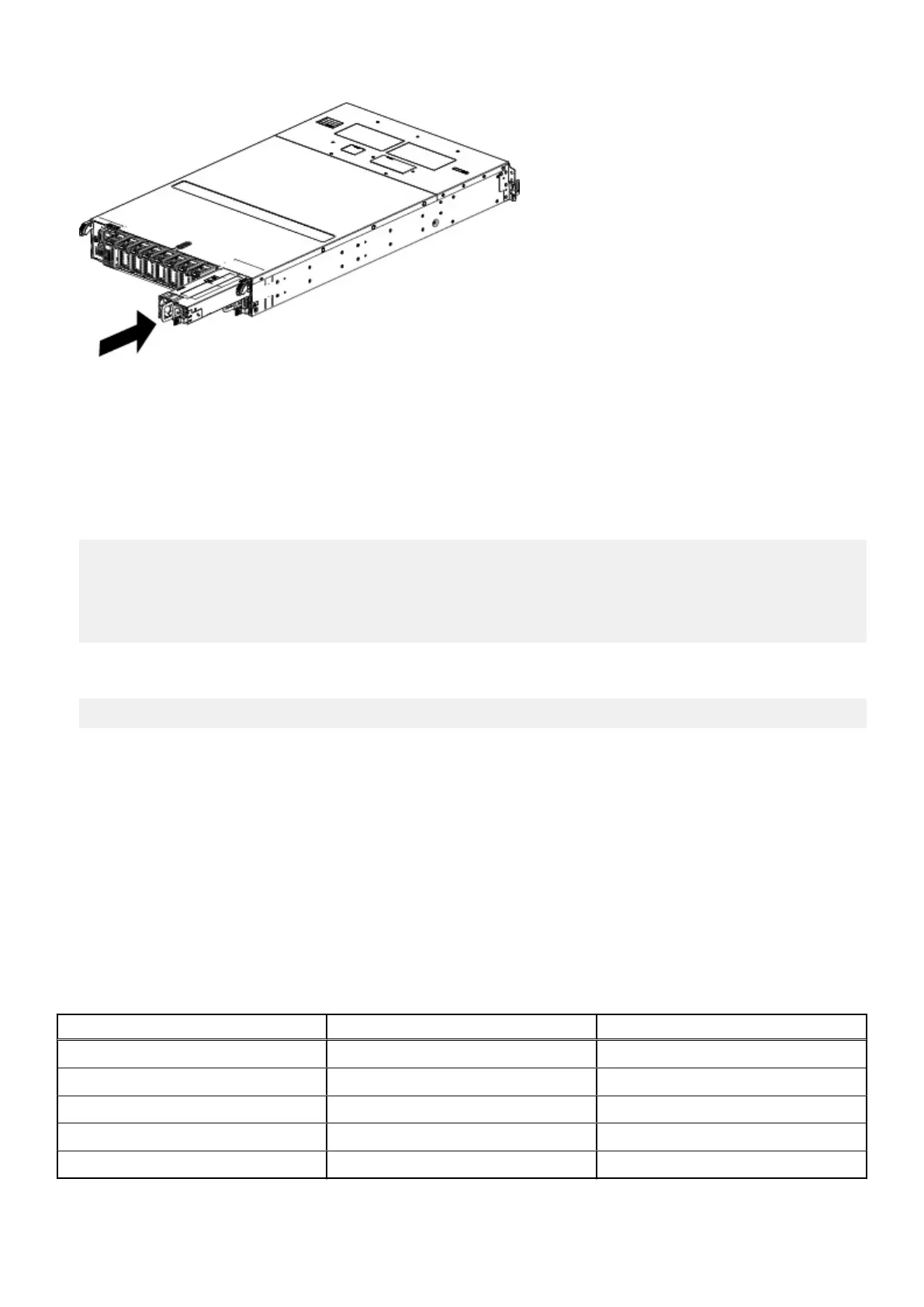

econnect the AC power cord and latch the bale to secure the plug.
Verify the power supplies
Steps
1. Enter the enclosure show powersupply command. The output for Enclosure 1 should be similar to the following
example:
# enclosure show powersupply
T
his command may take up to a minute to complete. Please wait...
Enclosure Description Status
--------- -------------- -------
1 Power module 0 OK
1 Power module 1 OK
--------- -------------- -------
2. Enter the alerts show current command and confirm that the system has cleared the alert for the failed power
supply. It may take one to two minutes after the power supply replacement before the system clears the alert.
# a
lerts show current
No active alerts.
DIMMs
This sections describes how to remove and replace the DIMMs.
DIMMs overview
This topic provides information to assist servicing the DIMM FRUs.
The storage processor contains two Intel Haswell-EP processors each with an integrated memory controller that supports four
channels of memory. The storage processor allows two DIMM slots per channel, so the storage processor supports a total of 16
DIMM slots.
The following table specifies the tier memory sizes and DIMM types.
Model Total Memory Memory DIMM Configuration
DD6300 AIO Base 48 GB 6 x 8GB
DD6300 AIO Expanded 96 GB 12 x 8GB
DD6800 DLH 192 GB 8 x 16GB +8 x 8GB
DD9300 DLH Base 192 GB 4 x 32GB + 4 x 16GB
DD9300 DLH Expanded 384 GB 8 x 32GB + 8 x 16GB
Field Replaceable Units 27
