NOTE: For systems without a hard drive backplane, do not connect the 10 pin cable.
Next steps
1. Install the power interposer board.
2. Follow the procedure listed in the After working inside your system section.
Related links
Removing a redundant power supply unit
Installing the power interposer board
Installing the power interposer board
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
1. Ensure that you follow the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Keep the Phillips #2 screwdriver ready.
Steps
1. Align the power interposer board (PIB) with the standos on the chassis.
2. Install the two screws that secure the PIB to the chassis.
3. Connect the power distribution cables to the system board and the hard drive power connector to the hard drive backplane.

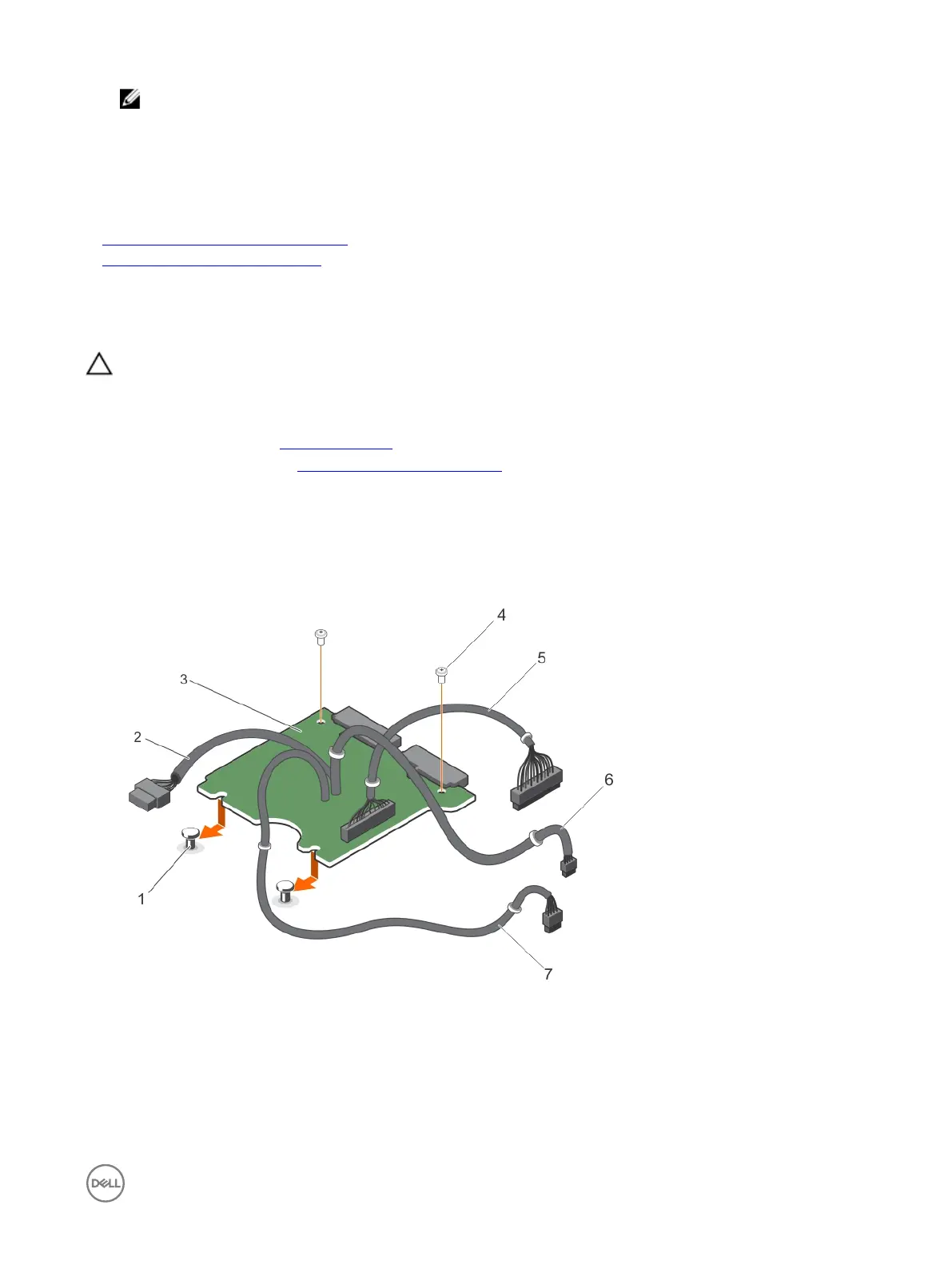

Figure 103. Installing the power interposer board
1.
standos (2) 2. 10 pin cable to hard drive backplane
3. power interposer board 4. screw (2)
5. 28 pin cable to system board 6. 4 pin cable to system board
7. 8 pin cable to system board
139
