Removing the cooling shroud
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
1. Ensure that you follow the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
CAUTION: Never operate your system with the cooling shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
Steps
Hold the cooling shroud and lift it away from the system.

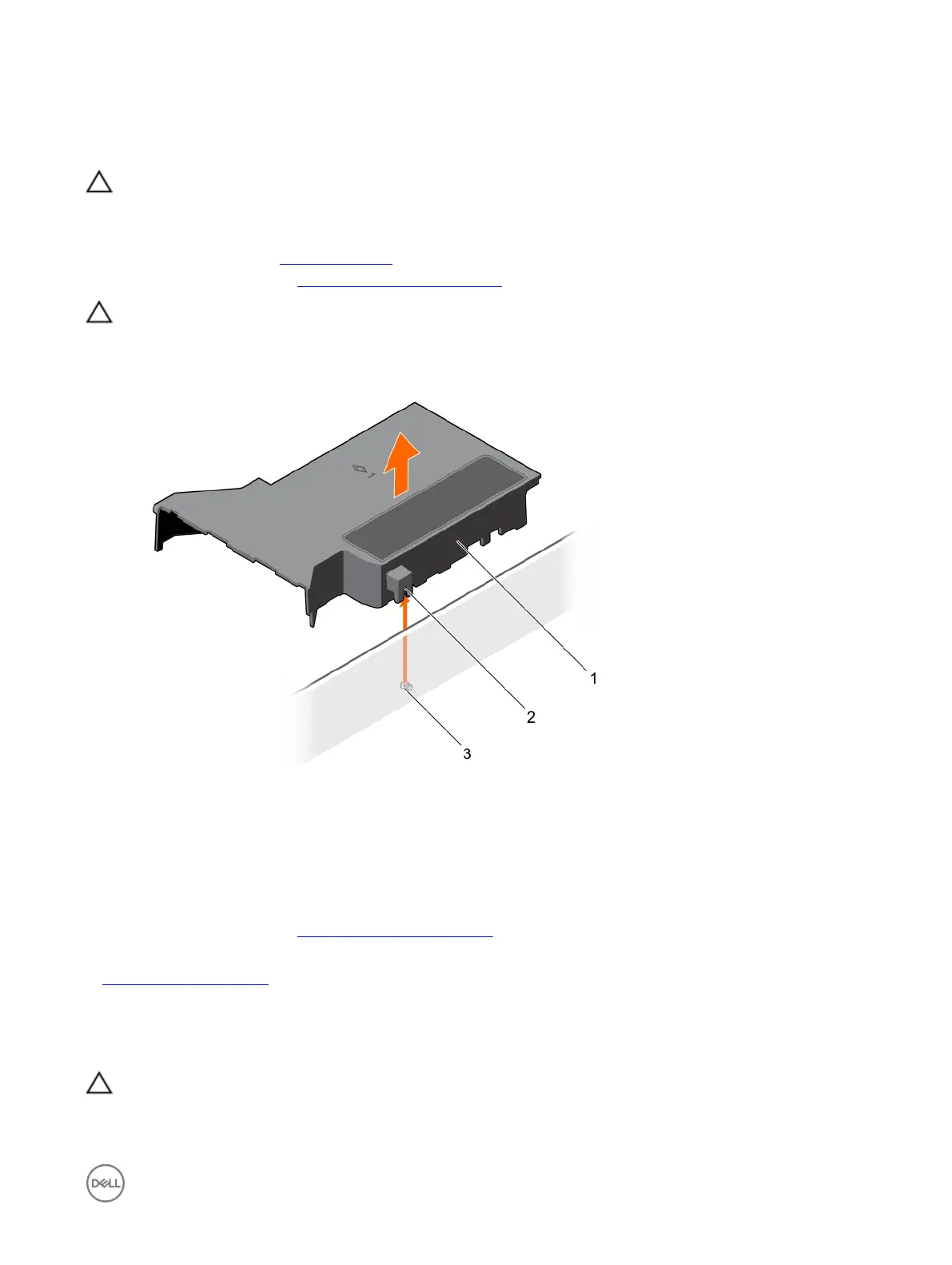

Figure 21. Removing the cooling shroud
1.
cooling shroud 2. guide on the cooling shroud
3. guide pin on the chassis wall
Next steps
1. Install the cooling shroud.
2. Follow the procedure listed in After working inside your system.
Related links
Installing the cooling shroud
Installing the cooling shroud
