Intrusion switch
Removing the intrusion switch
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety
instructions that are shipped with your product.
1. Follow the safety guidelines listed in safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Keep the plastic scribe ready.
Steps
1. Disconnect the intrusion switch cable from the connector on the system board.
2. Remove the cable from the cable routing latch.
3. Using a plastic scribe, slide the intrusion switch and remove it from under the intrusion switch slot.

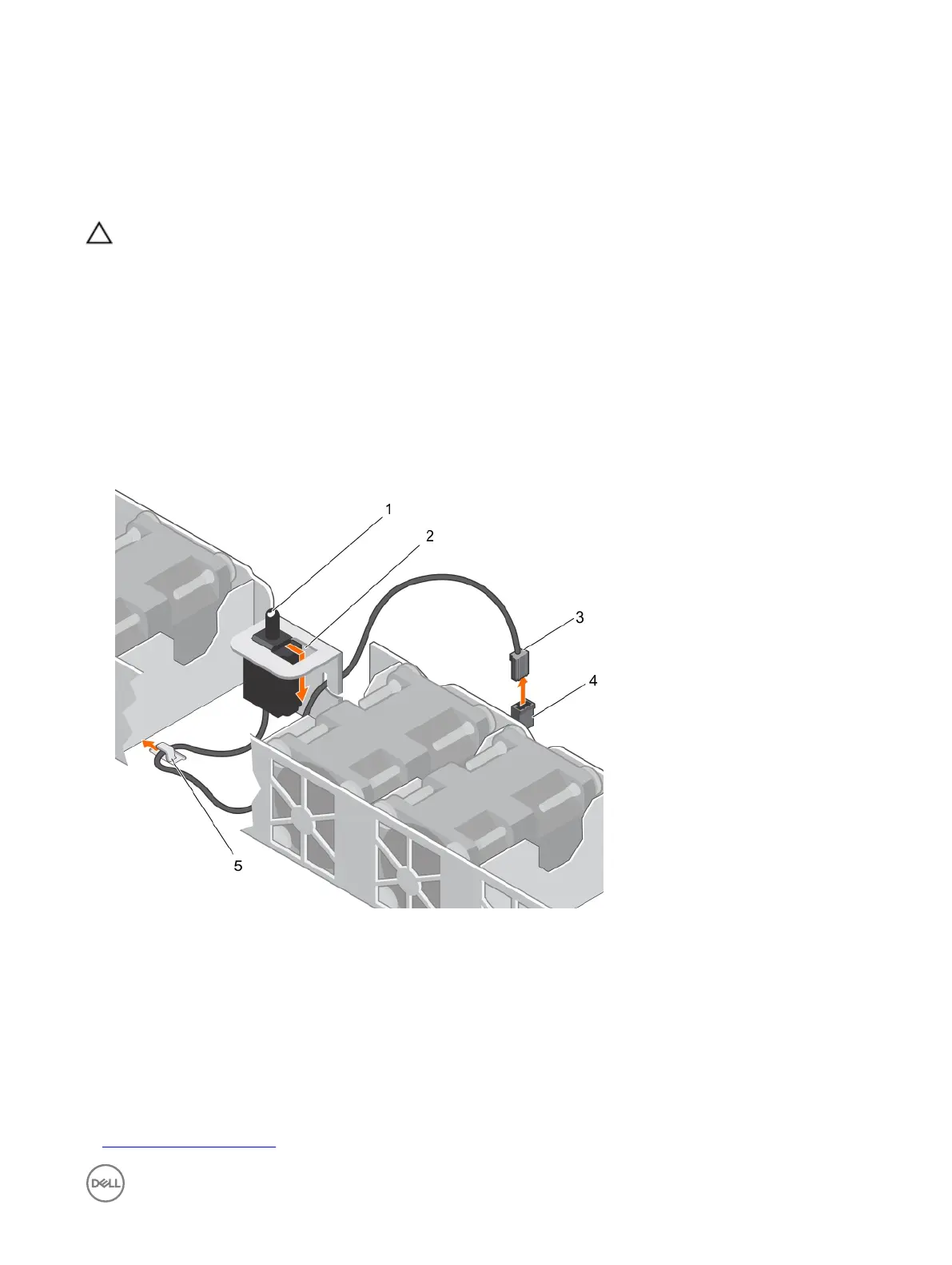

Figure 19. Removing the intrusion switch
1.
intrusion switch 2. intrusion switch slot
3. intrusion switch cable 4. intrusion switch connector on the system board
5. cable routing clip
Next steps
1. Install the intrusion switch.
2. Follow the procedure listed in the After working inside your system section.
Related links
Installing the intrusion switch
