System board connectors

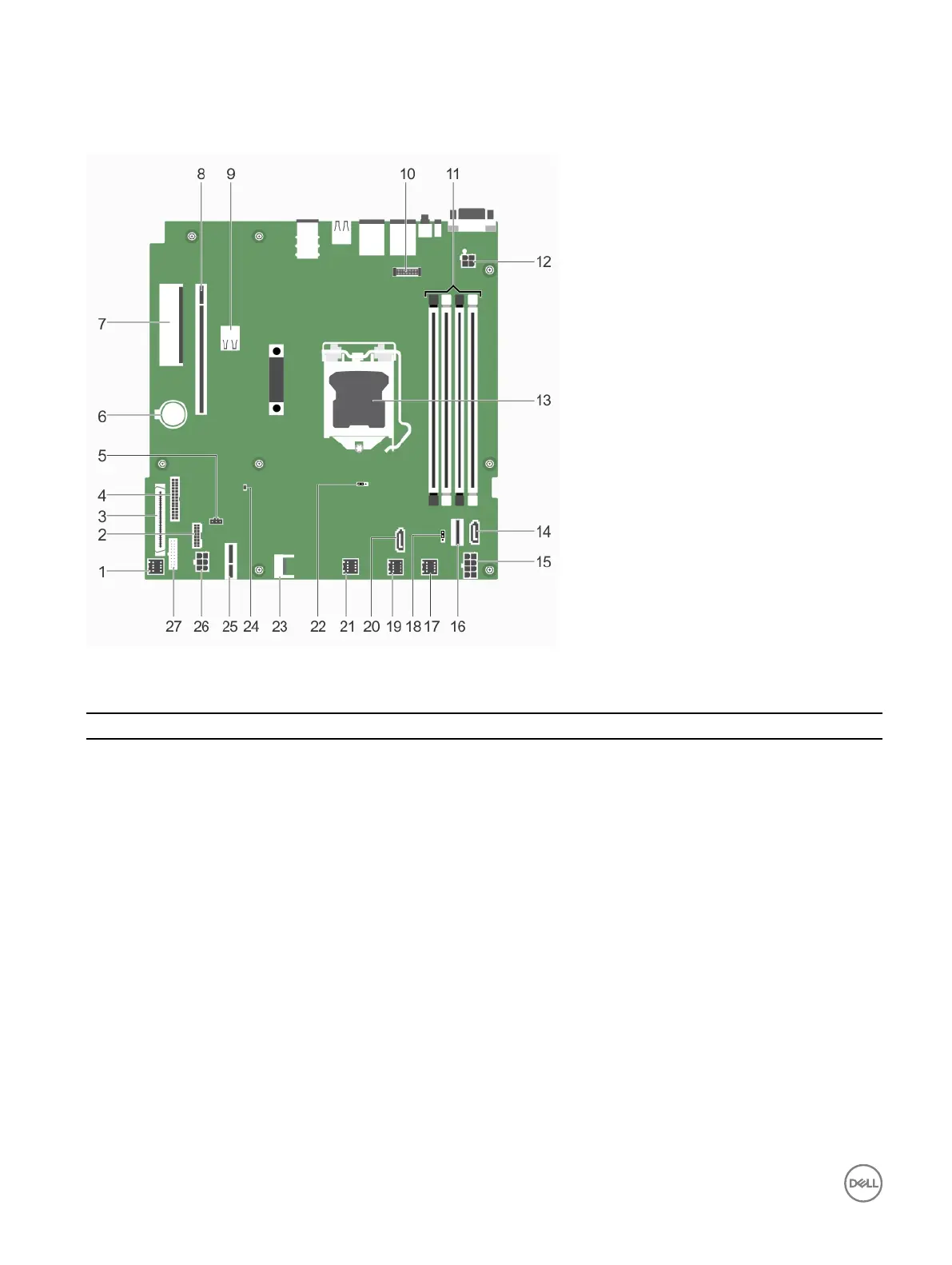

Figure 107. System board connectors
Table 28. System board connectors
Item Connector Description
1 FAN1 Cooling fan connector
2 BP_SIG Backplane signal connector
3 CTRL_PNL Control panel interface connector
4 PIB_CONN Power connector
5 R_INTRUSION Intrusion switch connector
6 BATTERY Battery connector
7 PCIE_G3_X4 Internal PERC connector
8 PCIE_G3_X8 Riser card connector
9 INT_USB_3.0 Internal USB connector 3.0
10 AMEA iDRAC port card connector
11 DIMMs Memory module sockets
12 CPU_PWR 4–pin power connector
13 CPU Processor socket
14 SATA_ODD/SSD Optical drive/SSD SATA connector
