Installing the optional front bezel
Installing the system cover
Recommended tools
You need the following tools to perform the installation and removal procedures:
• Phillips #2 screwdriver
• Plastic scribe
• Wrist grounding strap connected to ground
Front bezel (optional)
The front bezel is attached to the front side of the system and prevents accidents while removing the hard drive or when pressing
the reset or power button. The front bezel can also be locked for additional security.
Removing the optional front bezel
Prerequisites
Follow the safety guidelines listed in the Safety instructions section.
Steps
1. Unlock the keylock at the left end of the bezel.
2. Lift the release latch next to the keylock.
3. Rotate the left end of the bezel away from the front panel.
4. Unhook the right end of the bezel and pull the bezel away from the system.

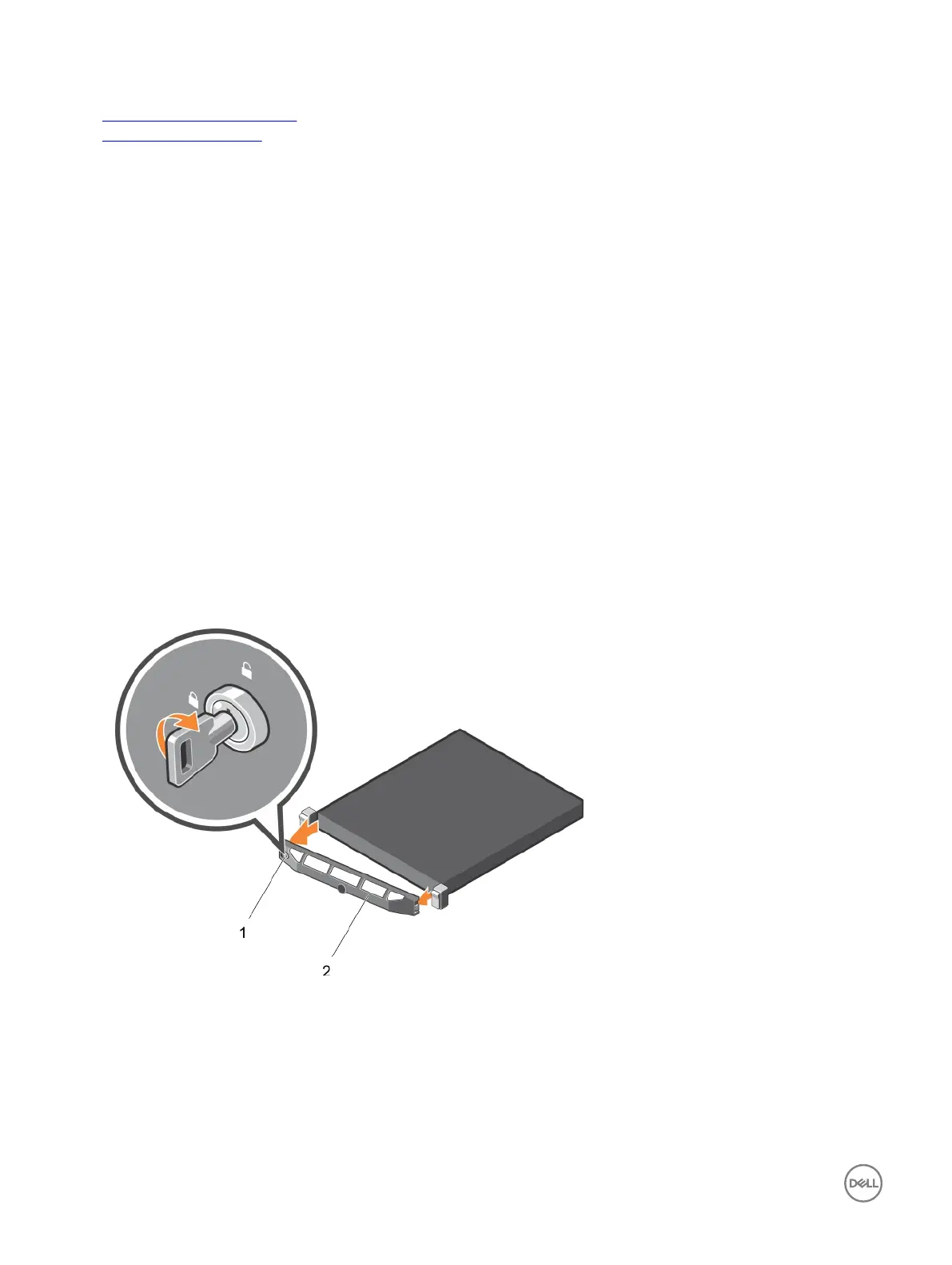

Figure 12. Removing the optional front bezel
1.
bezel lock 2. front bezel
Installing the optional front bezel
Prerequisites
Follow the safety guidelines listed in the Safety instructions section.
