Dell EMC PowerEdge R750xs 60KKP User Manual

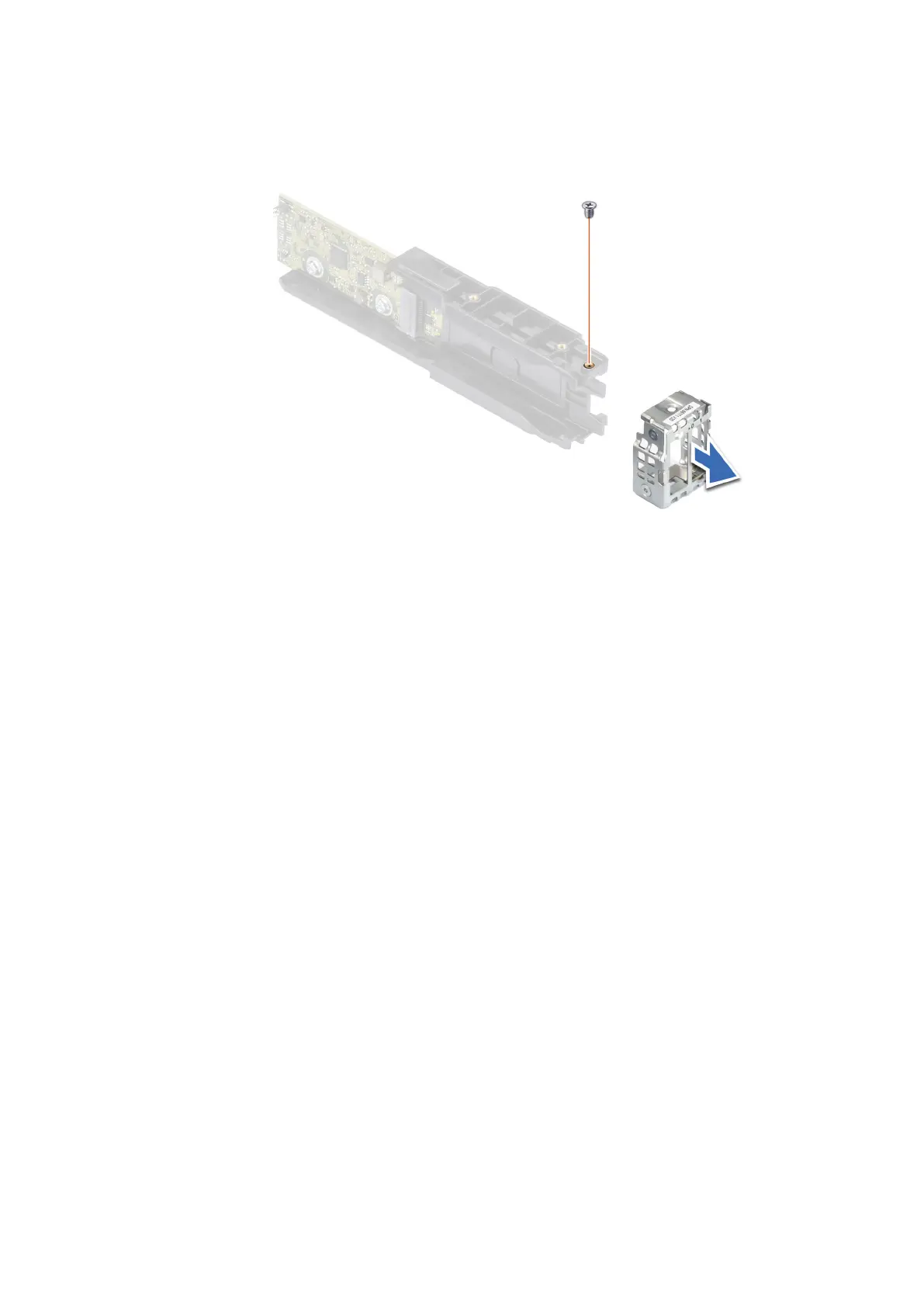

Figure 98. Removing the BOSS S2 module cover
Next steps
1. Replace the BOSS S2 controller card module.
Installing the BOSS S2 controller card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
1. Slide the BOSS cover on the BOSS S2 controller card module. Using the Phillips #1 screwdriver, secure the BOSS cover on
the BOSS S2 controller card module with the M3 x 0.5 x 4.5 mm screw.
Installing and removing system components
105

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
