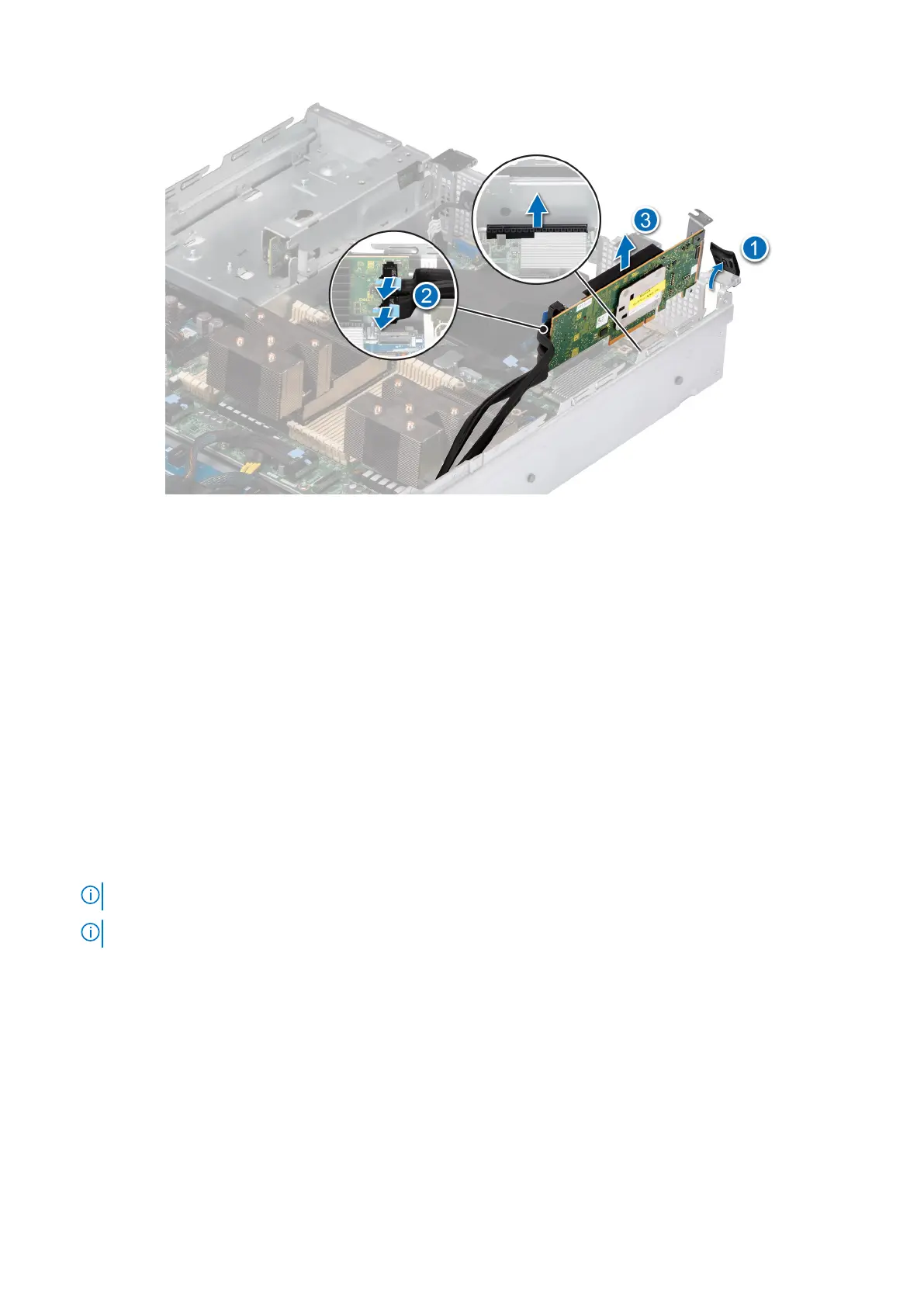

Figure 104. Removing the PERC adapter
Next steps
Replace the adapter PERC.
Installing the adapter PERC
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installed, remove the air shroud.
4. Route the cable properly to prevent the cable from being pinched or crimped.
Steps
1. Rotate the PCIe holder and remove the PCIe blank from the chassis.
2. Connect the SAS cables to the adapter PERC.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
NOTE: The adapter PERC option is only available with 12 x 3.5-inch SAS/SATA backplane configuration.
Installing and removing system components 109

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
