Table 2. Features available on the front of the system (continued)
Item Ports, panels, and
slots
Icon Description
4 Right control panel and
VGA port
Contains the power button, USB port, iDRAC Direct micro port,
and the iDRAC Direct status LED. VGA port enables you to
connect a display device to the system.
5 Information tag N/A
The Information tag is a slide-out label panel that contains
system information such as Service Tag, NIC, MAC address,
and so on. If you have opted for the secure default access
to iDRAC, the Information tag also contains the iDRAC secure
default password.
NOTE: For more information, see the Dell EMCPowerEdgeR750xs Technical Specifications on the product documentation
page.
Left control panel view

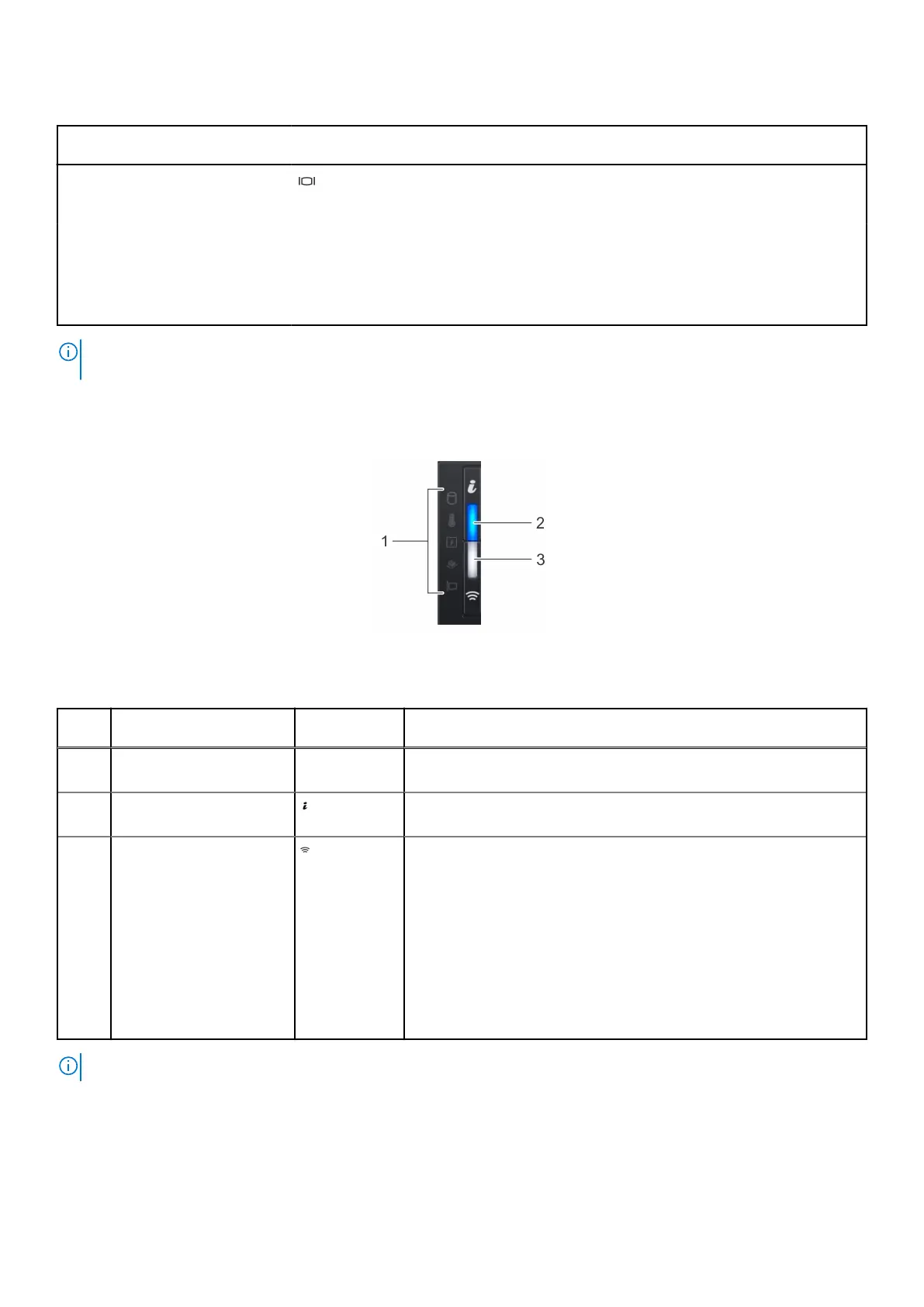

Figure 6. Left control panel with optional iDRAC Quick Sync 2.0 indicator
Table 3. Left control panel
Item Indicator, button, or
connector
Icon Description
1 Status LED indicators NA Indicates the status of the system. For more information, see the
Status LED indicators section.
2 System health and system
ID indicator
Indicates the status of the system. For more information, see the
System health and system ID indicator codes section.
3 iDRAC Quick Sync
2 wireless indicator
(optional)
Indicates if the iDRAC Quick Sync 2 wireless option is activated. The
Quick Sync 2 feature allows management of the system using mobile
devices. This feature aggregates hardware/firmware inventory and
various system level diagnostic/error information that can be used in
troubleshooting the system. You can access system inventory, Dell
Lifecycle Controller logs or system logs, system health status, and
also configure iDRAC, BIOS, and networking parameters. You can also
launch the virtual Keyboard, Video, and Mouse (KVM) viewer and
virtual Kernel-based Virtual Machine (KVM), on a supported mobile
device. For more information, see the Integrated Dell Remote Access
Controller User's Guide at www.dell.com/poweredgemanuals
NOTE: For more information about the indicator codes, see the System diagnostics and indicator codes section.
PowerEdge R750xs system overview 11

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
