Dell EMC PowerEdge R750xs 60KKP User Manual

Power interposer board
This is a service technician replaceable part only.
Removing the power interposer board
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
4. Remove the PSU.
5. Disconnect the cables that are connected to power interposer board (PIB).
Steps
1. Using a Phillips #2 screwdriver, remove the screws securing the power interposer board (PIB) to the system.
NOTE: Observe the routing of the cable as you remove it from the system.
2. Lift the PIB away from the system.

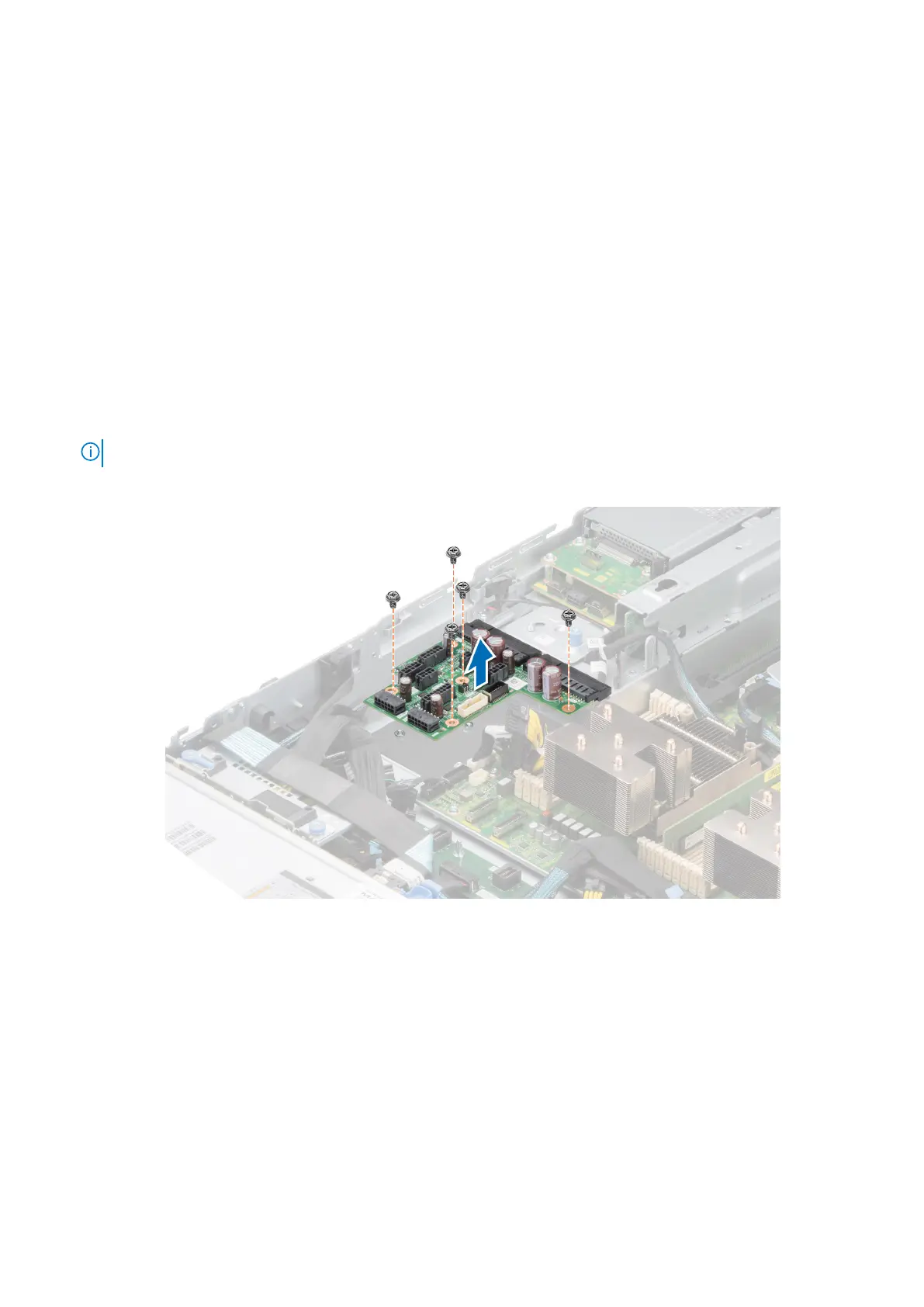

Figure 124. Removing the power interposer board
Next steps
Replace the power interposer board.
Installing the power interposer board
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Installing and removing system components
127

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
