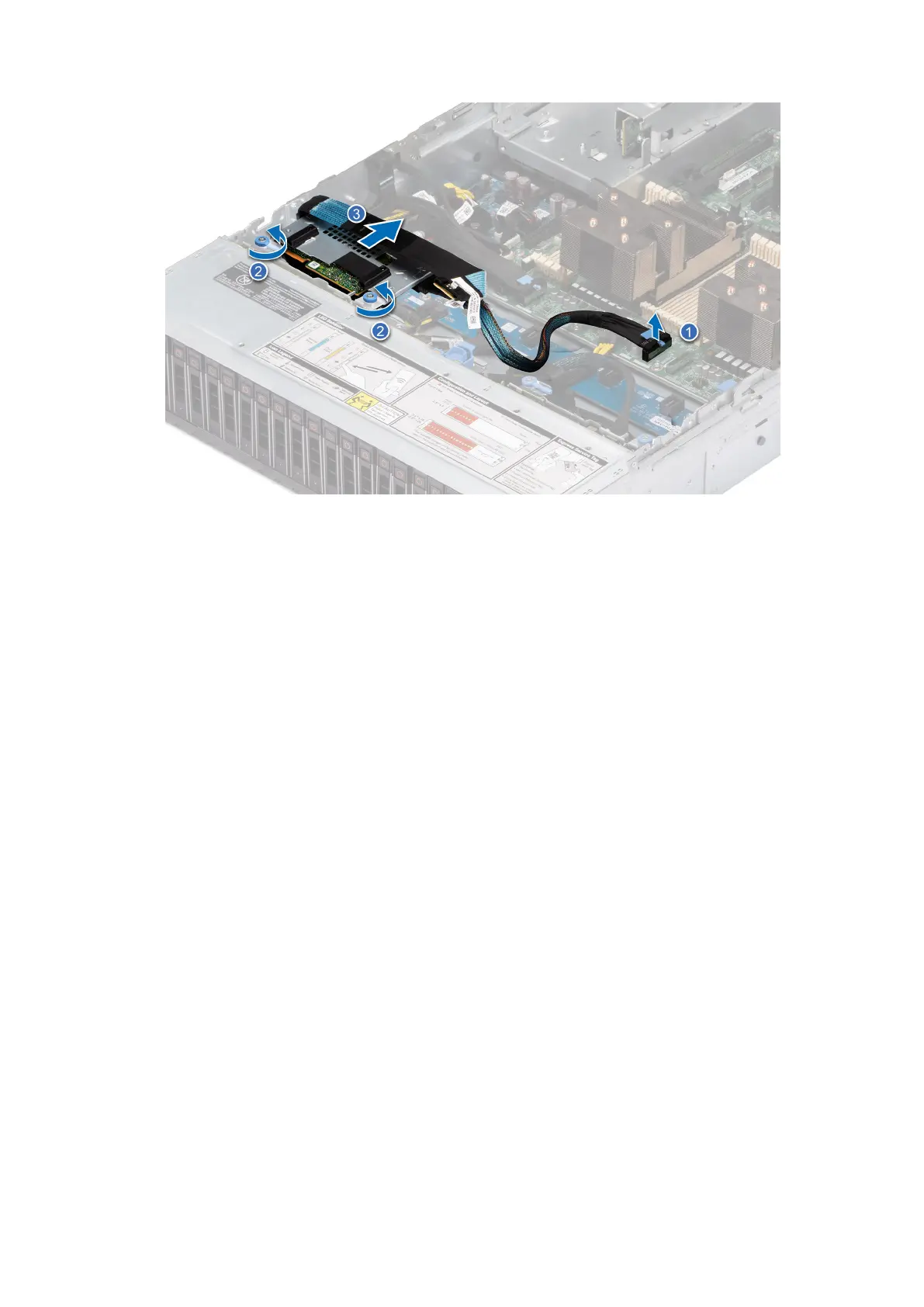

Figure 106. Removing the rear mounting front PERC module
Next steps
Replace the rear mounting front PERC module
Installing the rear mounting front PERC module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the drive backplane cover.
4. If installed, remove the air shroud.
5. Remove the cooling fan cage.
6. Route the cable properly to prevent the cable from being pinched or crimped.
Steps
1. Align the connectors on the front PERC module with the connectors on the drive backplane.
2. Slide the front PERC module until the module is connected to the drive backplane.
3. Using a Phillips #2 screwdriver, tighten the captive screws on the front PERC module.
Installing and removing system components
111

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
