4. Remove the air shroud.
Steps
1. Disconnect the control panel cable and the VGA cable from the system board connector and remove the cable from cable
clip.
NOTE: Observe the routing of the cable as you remove it from the system.
2. Using the Phillips #1 screwdriver, remove the screws that secure the right control panel assembly.
3. Hold the right control panel assembly and remove the control panel along with the cable from the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

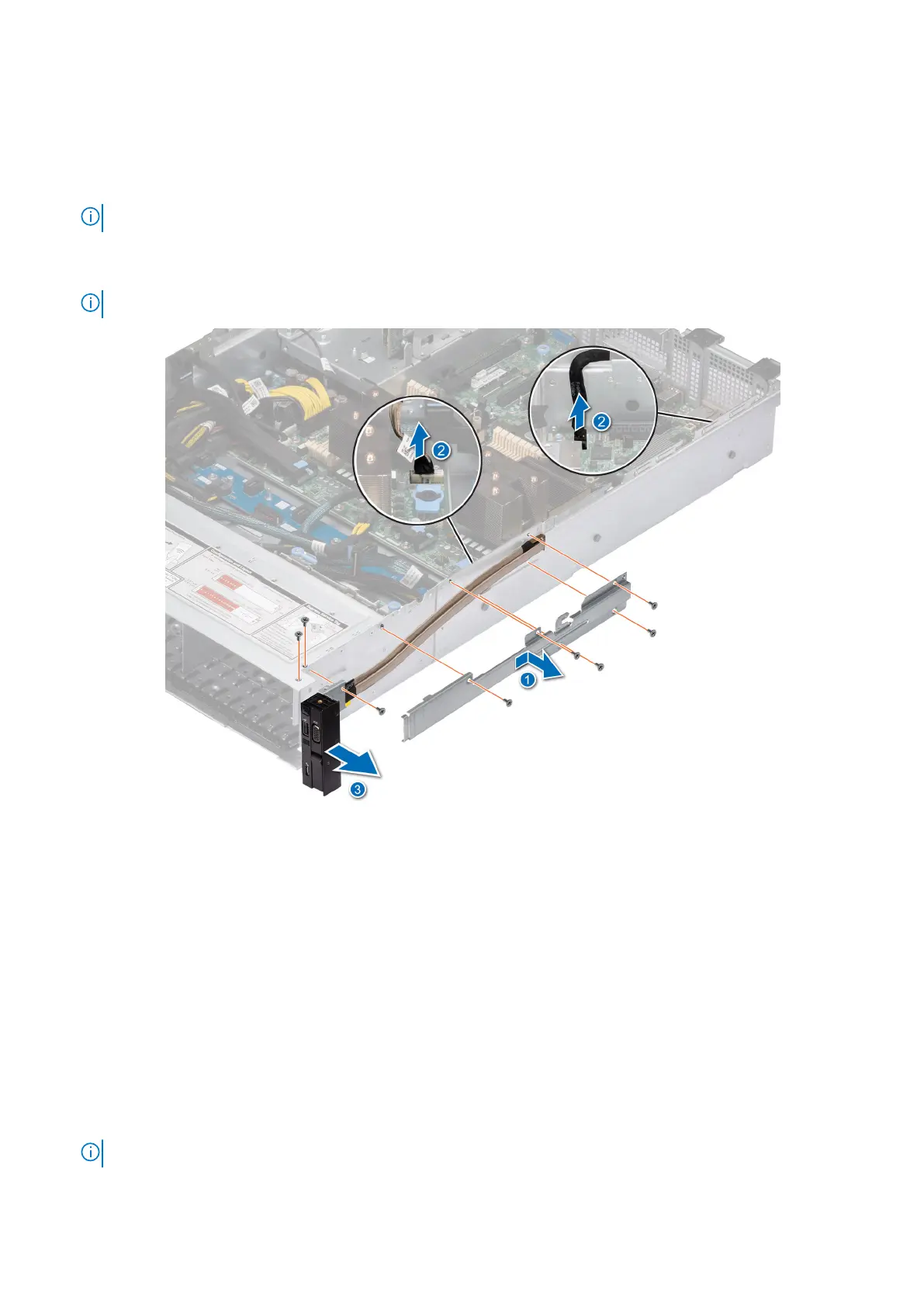

Figure 131. Removing the right control panel
Next steps
Replace the right control panel.
Installing the right control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
1. Route the control panel cable through the side wall of the system and slide the cable into the clip.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
Installing and removing system components 135
