Dell EMC PowerEdge R750xs 60KKP User Manual

Inside the system

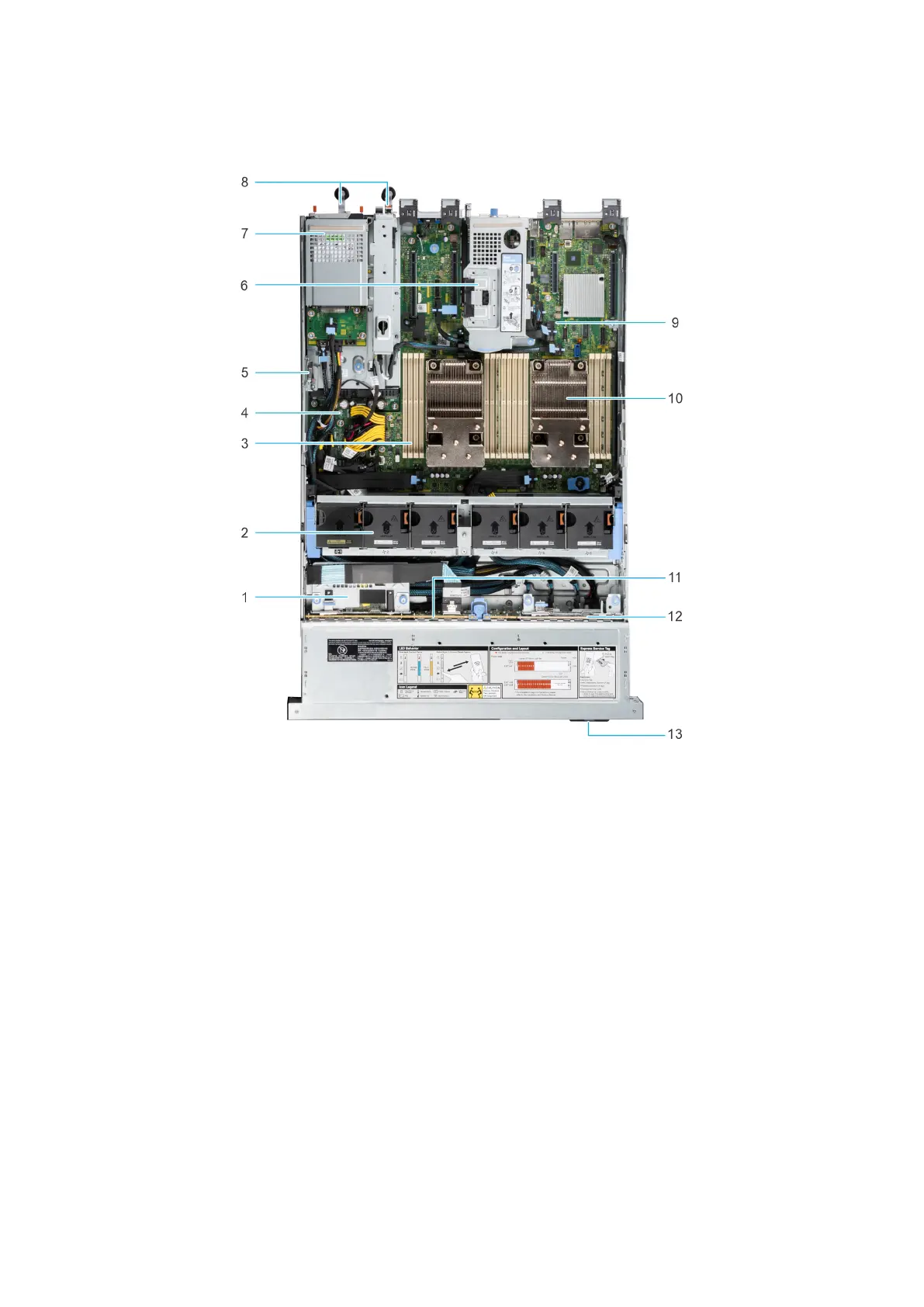

Figure 9. Inside the system with riser
1.
Front PERC 2. Cooling Fans
3. Memory module slots 4. Power interposer board
5. Intrusion switch 6. Riser 1A/1B
7. Rear drive module 8. PSU 1 and PSU 2
9. System board 10. Processor heat sink
11. Backplane 12. NVMe backplane with provision for H755N PERC
13. Information tag
14 PowerEdge R750xs system overview

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
