4. Save the settings.
5. Restart your system.
Control panel
This is a service technician replaceable part only.
Removing the left control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
4. If applicable, remove the drive backplane cover.
5. Remove the cooling fan cage assembly.
Steps
1. Disconnect the control panel cable from the system board connector.
NOTE: Observe the routing of the cable as you remove it from the system.
2. Using the Phillips #1 screwdriver, remove the screws that secure the left control panel assembly to the system.
3. Hold the left control panel assembly and remove the control panel along with the cable from the system.

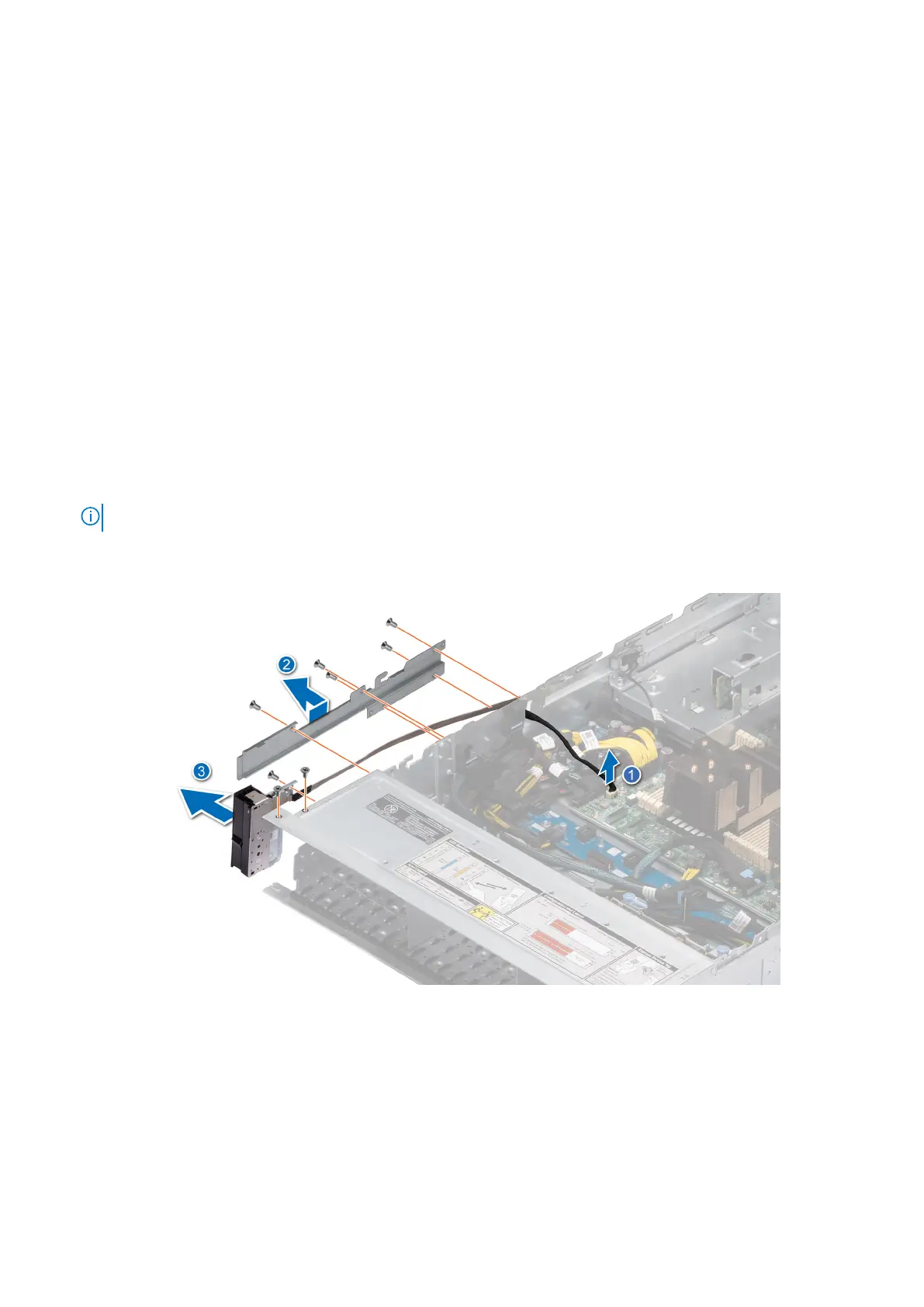

Figure 129. Removing the left control panel
Next steps
Replace the left control panel.
Installing and removing system components
133

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
