Dell EMC PowerEdge R750xs 60KKP User Manual

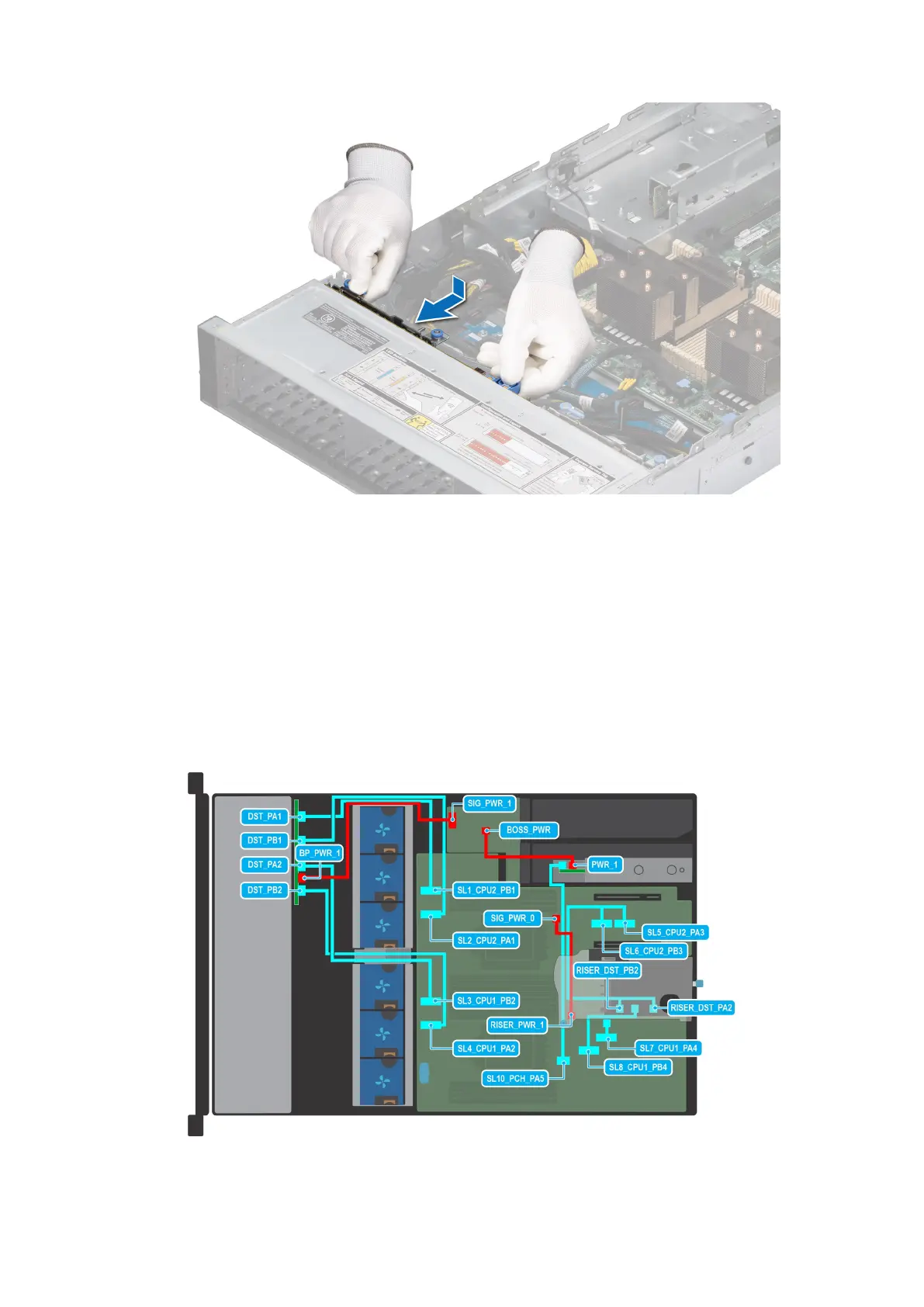

Figure 50. Installing the drive backplane
Next steps
1. Reconnect all the disconnected cables to the backplane.
2. Install all the drives.
3. Install the drive backplane cover.
4. Install the air shroud.
5. Follow the procedure listed in After working inside the system.
Cable routing
Figure 51. Cable routing - 8 x 2.5-inch NVMe drive backplane to the system board (S150) with cable riser 1A and
BOSS S2 card
Installing and removing system components
59

Dell EMC PowerEdge R750xs 60KKP Specifications

General

Form Factor	2U rack server
Processor	Up to 2 x Intel Xeon Scalable processors, up to 32 cores per processor
Memory	Up to 2TB DDR4, 3200MT/s, 16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA (HDD/SSD)
RAID Controller	PERC H745, H755, HBA355i
Network	1GbE, 10GbE, 25GbE
Power Supply	1100W
