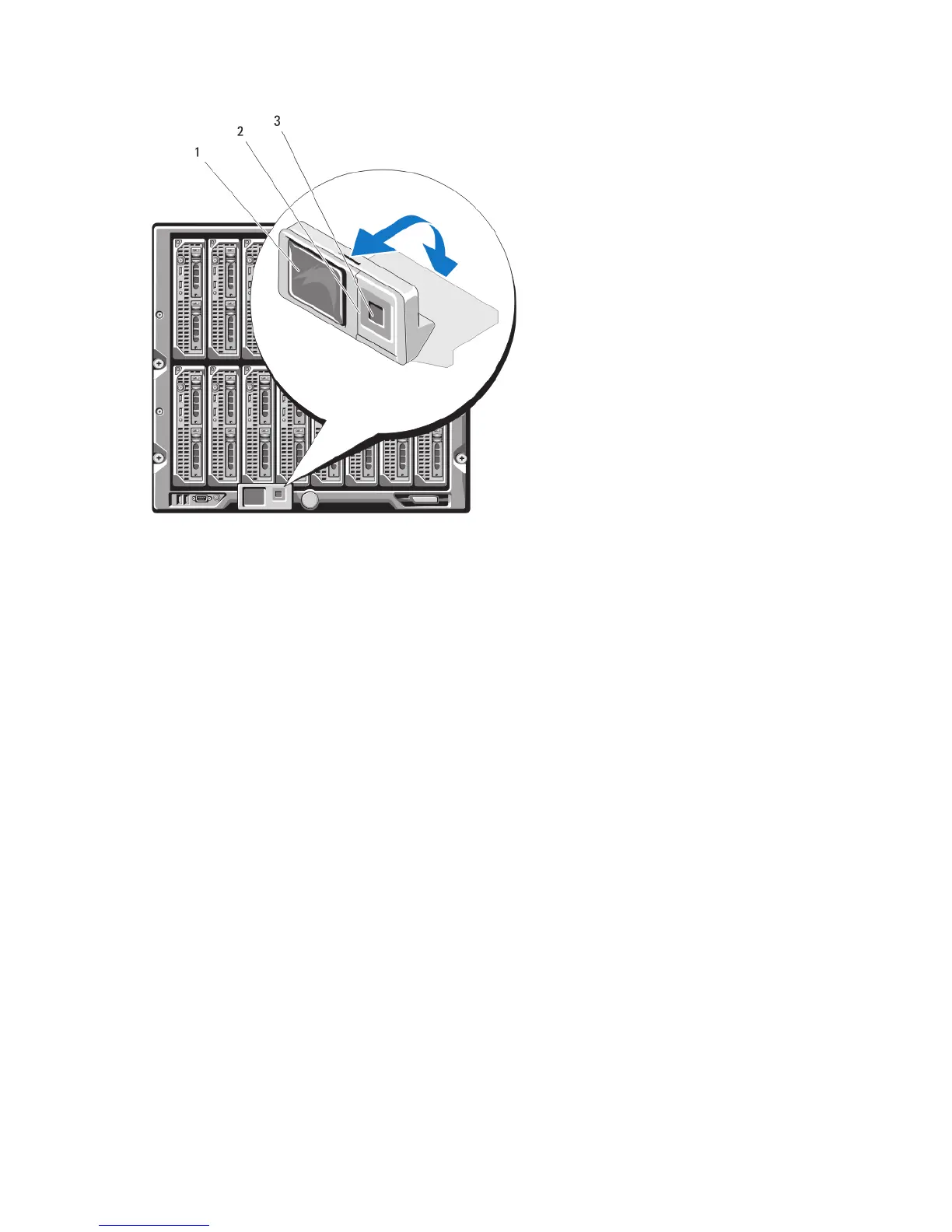

Figure 6. LCD Display
1. LCD screen
2. scroll buttons (4)
3. selection ("check") button
LCD Module Features
The primary function of the LCD module is to provide real-time information on the health and status of the modules in the
enclosure.
LCD module features include:
• A deployment setup wizard that allows you to configure the CMC module’s network settings during initial system
set up.
• Menus to configure the iDRAC in each blade.
• Status information screens for each blade.
• Status information screens for the modules installed in the back of the enclosure, including the I/O modules,
fans, CMC, iKVM, and power supplies.
• A Network Summary screen listing the IP addresses of all components in the system.
• Real time power consumption statistics, including high and low values, and average power consumption.
• Ambient temperature values.
• AC power information.
• Critical failure alerts and warnings.
