1. SFP+ ports (16)
2. green/amber indicators (two per port)
3. status/identification indicator
4. power indicator
Dell 10 Gb Ethernet Pass-Through Module II
The Dell 10 Gb Ethernet pass-through module II supports 10 Gb connections and provides a direct connection between
the optional internal Ethernet mezzanine card in the blade and an external Ethernet device. The Ethernet pass-through
modules are hot-swappable and may be installed in Fabric B or Fabric C.
The 10 Gb Ethernet pass-through module II enables you to use optical SFP+ (short reach or long reach) and direct-
attached copper (DCA) SFP+ modules. The Ethernet pass-through module does not support 1G mezzanine or network
daughter cards in blades.

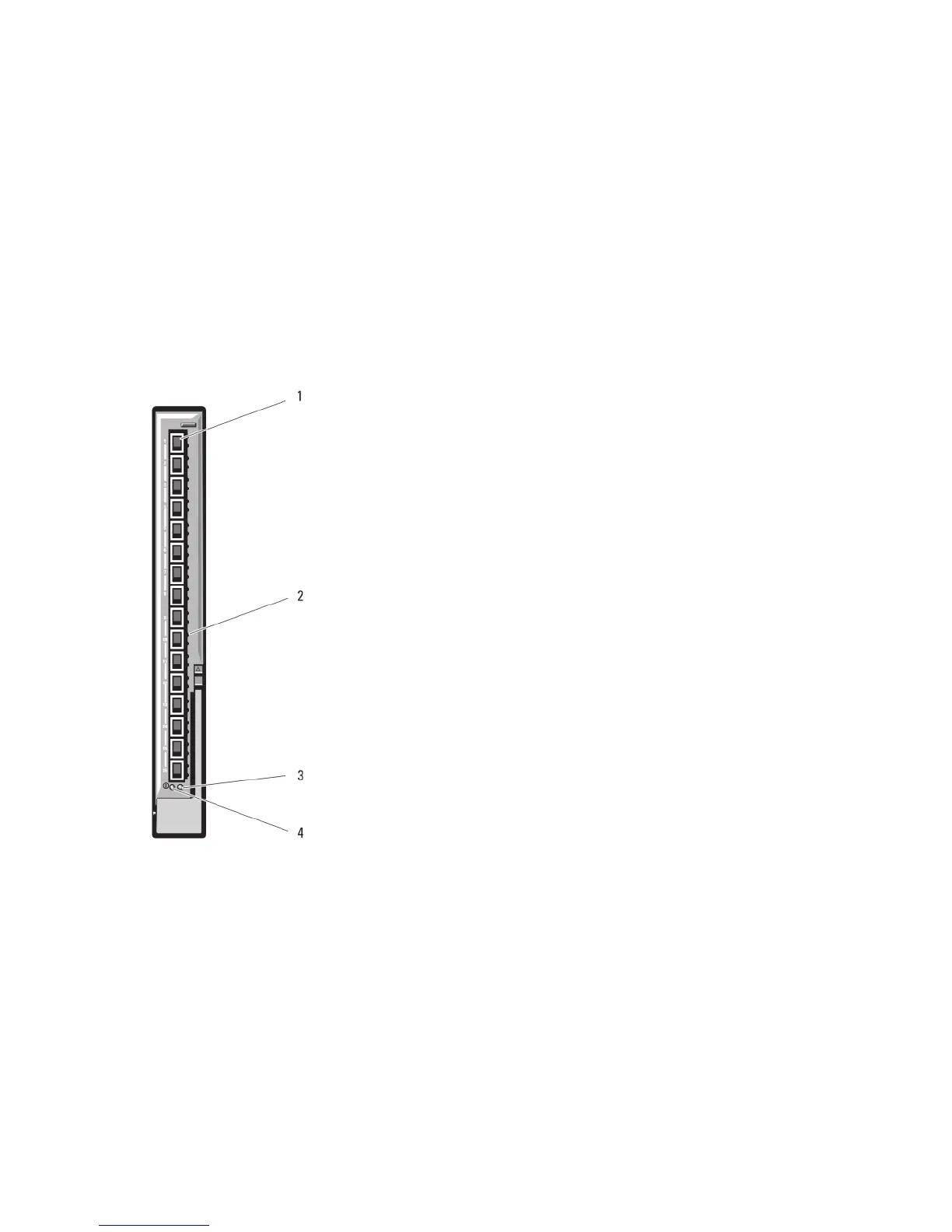

Figure 34. 10 Gb Ethernet Pass-Through Module II
1. SFP+ ports (16)
2. green/amber indicators (two per port)
3. status/identification indicator
4. power indicator
67
