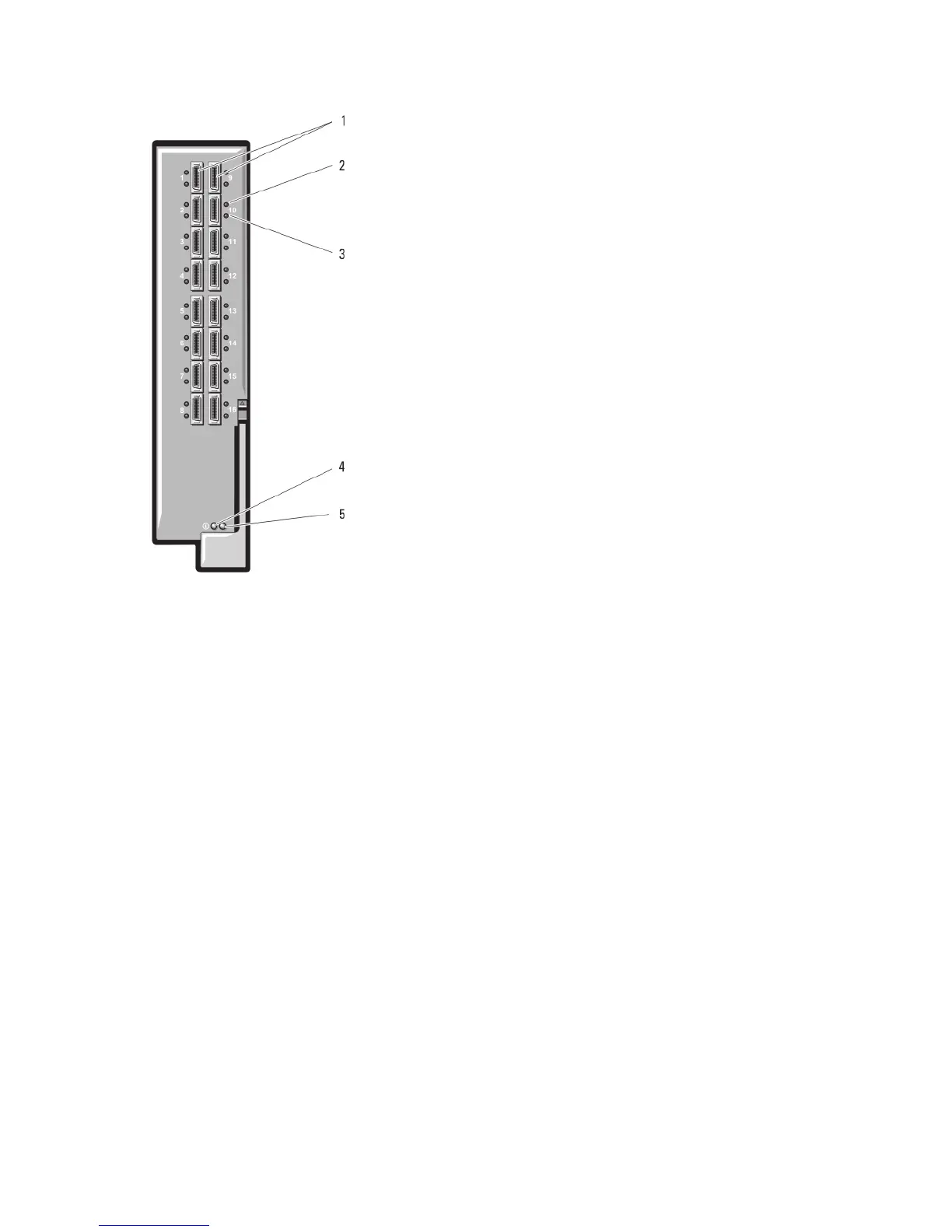

Figure 25. Mellanox M3601Q QDR Infiniband Switch I/O Module
1. Infiniband ports (16)
2. port link status indicators (16)
3. port activity indicators (16)
4. module diagnostic power indicator
5. module status indicator
Cisco Catalyst Ethernet Switch I/O Modules
Your system supports three Cisco Catalyst Blade Switch (CBS) versions:
• The Cisco 3130G-S switch includes four 10/100/1000 Mb Ethernet uplink ports and two Stackwise Plus ports.
• The Cisco CBS 3130X-S switch includes four 10/100/1000 Mb Ethernet uplink ports, two 10 Gb uplink ports, and
two Stackwise Plus ports.
• The Cisco CBS 3032 switch includes four 10/100/1000 Mb Ethernet uplink ports.
The two option bays support the following module options:
• Cisco X2 10 Gb transceiver modules (CBS 3130X-S only)
• Cisco TwinGig converter modules
All three switches include an RJ-45 console connector for switch management. Sixteen internal Gb Ethernet connectors
link to the blades in the enclosure. For additional information about the Cisco CBS Ethernet switch modules, see the
documentation that shipped with the module.
