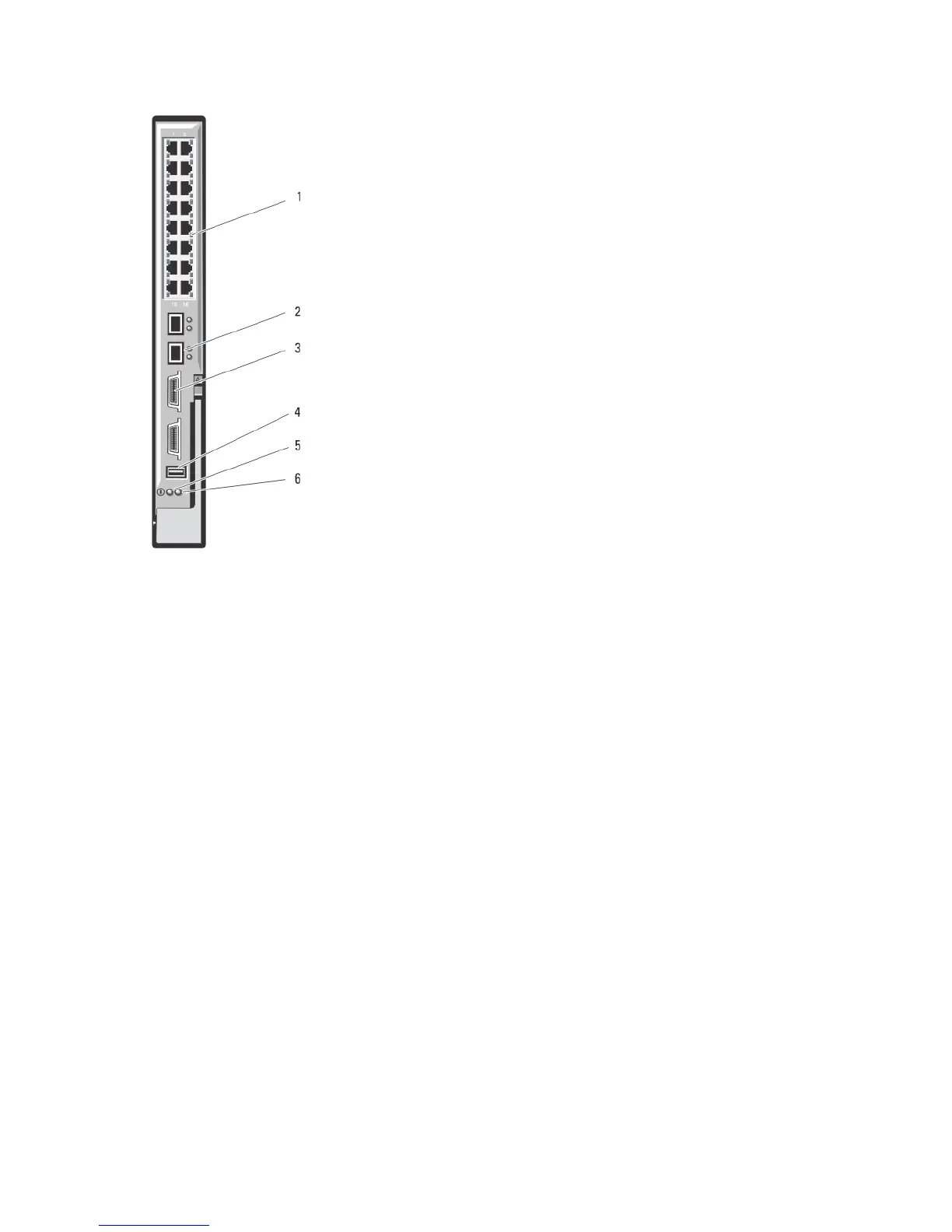

Figure 27. PowerConnect M6348 1 Gb Ethernet Switch I/O Module Features
1. standard 10/100/1000 Mb Ethernet connectors (16)
2. SFP+ connectors (2)
3. CX4 stacking connectors (2)
4. console management connector
5. power indicator
6. status/identification indicator
Dell PowerConnect M6220 Ethernet Switch I/O Module
The PowerConnect M6220 Ethernet switch module includes four external 10/100/1000 Mbps Ethernet connectors and
one USB type A form factor serial connector. Two option bays support the following modules:
• A resilient stacking module with 2 x 24 Gb stacking ports
• A 10 Gb Ethernet module with two 10 Gb optical XFP uplinks
• A 10 Gb Ethernet module with two copper CX4 uplinks
• A 10 Gb Ethernet module with two copper 10GBASE-T uplinks
• A 10 Gb Ethernet module with two SFP+ (optical or direct-attach copper) uplinks
Installing two optional modules provides additional stacking and redundancy support. Sixteen internal Gb Ethernet
connectors link to the blades in the enclosure.
For additional information about the PowerConnect M6220 Ethernet switch module, see the documentation that shipped
with the module.
